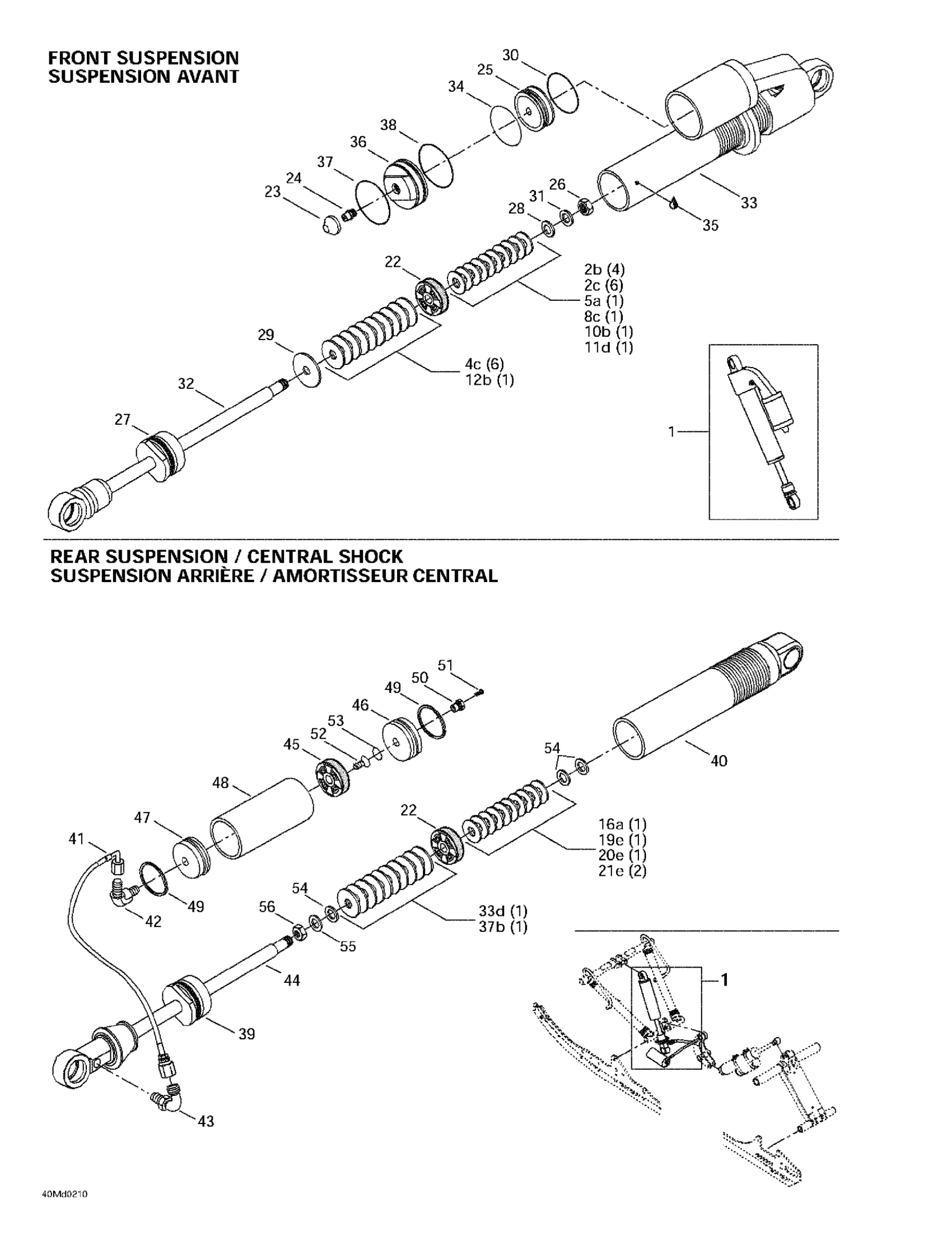

Ski-Doo MX Z X 440, 2002 07- Front Take Apart Shocks Diagram
#
1
RH Shock
505070796
Unavailable
Take Apart Shock | . (Rear Suspension - Central Shock)
503189779
Unavailable
2A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
2B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
2C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
3A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
3B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
3C
Not Available As Spare Part - Friction Washer
Unavailable
4A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
4B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
4C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
4D
Not Available As Spare Part - Friction Washer
Unavailable
5A
Leaf Valve Ø24 x 0.114 (mm) | MX Z X 440.
414888341
Unavailable
6A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
6B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
7A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
7B
Not Available As Spare Part - Friction Washer
Unavailable
8A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
8B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
8C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
9A
Not Available As Spare Part - Friction Washer
Unavailable
10A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
10B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
10C
Not Available As Spare Part - Friction Washer
Unavailable
11A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
11B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
11C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
11D
Leaf Valve Ø16 x 0.114 (mm) | MX Z X 440.
415093823
Unavailable
12A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
12B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
12C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
12D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
13A
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
14A
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
14B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
14C
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
14D
Leaf Valve Ø12 x 0.114 (mm) | MX Z X 440.
415093824
Unavailable
15A
Leaf Valve Ø 0.700 x 0.004 (inches) | .
503190061
Unavailable
15B
Leaf Valve Ø 0.700 x 0.006 (inches) | .
503190062
Unavailable
15C
Leaf Valve Ø 0.700 x 0.008 (inches) | .
503190063
Unavailable
15D
Leaf Valve Ø 0.700 x 0.10 (inches) | .
503190064
Unavailable
15E
Leaf Valve Ø 0.700 x 0.12 (inches) | .
503190065
Unavailable
15F
Leaf Valve Ø 0.700 x 0.15 (inches) | .
503190066
Unavailable
16A
Leaf Valve Ø 0.800 x 0.004 (inches) | .
503190067
Unavailable
16B
Leaf Valve Ø 0.800 x 0.006 (inches) | .
503190068
Unavailable
16C
Leaf Valve Ø 0.800 x 0.008 (inches) | .
503190069
Unavailable
16D
Leaf Valve Ø 0.800 x 0.10 (inches) | .
503190070
Unavailable
16E
Leaf Valve Ø 0.800 x 0.12 (inches) | .
503190071
Unavailable
16F
Leaf Valve Ø 0.800 x 0.15 (inches) | .
503190072
Unavailable
17A
Leaf Valve Ø 0.900 x 0.004 (inches) | .
503190073
Unavailable
17B
Leaf Valve Ø 0.900 x 0.006 (inches) | .
503190074
Unavailable
17C
Leaf Valve Ø 0.900 x 0.008 (inches) | .
503190075
Unavailable
17D
Leaf Valve Ø 0.900 x 0.10 (inches) | .
503190076
Unavailable
17E
Leaf Valve Ø 0.900 x 0.12 (inches) | .
503190077
Unavailable
17F
Leaf Valve Ø 0.900 x 0.15 (inches) | .
503190078
Unavailable
18A
Leaf Valve Ø 1.00 x 0.006 (inches) | .
503190079
Unavailable
18B
Leaf Valve Ø 1.00 x 0.008 (inches) | .
503190080
Unavailable
18C
Leaf Valve Ø 1.00 x 0.10 (inches) | .
503190081
Unavailable
18D
Leaf Valve Ø 1.00 x 0.12 (inches) | .
503190082
Unavailable
18E
Leaf Valve Ø 1.00 x 0.15 (inches) | .
503190083
Unavailable
19A
Leaf Valve Ø 1.10 x 0.006 (inches) | .
503190084
Unavailable
19B
Leaf Valve Ø 1.10 x 0.008 (inches) | .
503190085
Unavailable
19C
Leaf Valve Ø 1.10 x 0.10 (inches) | .
503190086
Unavailable
19D
Leaf Valve Ø 1.10 x 0.12 (inches) | .
503190087
Unavailable
19E
Leaf Valve Ø 1.10 x 0.15 (inches) | .
503190088
Unavailable
20A
Leaf Valve Ø 1.25 x 0.006 (inches) | .
503190089
Unavailable
20B
Leaf Valve Ø 1.25 x 0.008 (inches) | .
503190090
Unavailable
20C
Leaf Valve Ø 1.25 x 0.10 (inches) | .
503190091
Unavailable
20D
Leaf Valve Ø 1.25 x 0.12 (inches) | .
503190092
Unavailable
20E
Leaf Valve Ø 1.25 x 0.15 (inches) | .
503190093
Unavailable
21A
Leaf Valve Ø 1.30 x 0.006 (inches) | .
503190094
Unavailable
21B
Leaf Valve Ø 1.30 x 0.008 (inches) | .
503190095
Unavailable
21C
Leaf Valve Ø 1.30 x 0.10 (inches) | .
503190096
Unavailable
21D
Leaf Valve Ø 1.30 x 0.12 (inches) | .
503190097
Unavailable
21E
Leaf Valve Ø 1.30 x 0.15 (inches) | .
503190098
Unavailable
22
Piston (Ø 0.063) (inches) | .
503190100
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
23
Air Valve Cap | MX Z X 440.
503189307
Unavailable
24
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
25
Free Piston
505071016
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Sealing Cap | MX Z X 440.
505071017
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
36
Guide
415093808
Unavailable
38
STOP RING - Call your local BRP dealership
415093805
Unavailable
39
Piston Rod Ass'y | .
503190104
Unavailable
40
Cap Ass'y | .
503190043
Unavailable
41
Hose Ass'y | .
503190044
Unavailable
42
90 Degres Elbow | .
503190045
Unavailable
43
45 Degres Elbow | .
503190046
Unavailable
44
Spring Stopper | .
503189998
Unavailable
45
Piston Ass'y | .
503190047
Unavailable
46
Cap Ass'y | .
503190048
Unavailable
47
End Cap | .
503190049
Unavailable
48
Reservoir | .
503190050
Unavailable
49
CIRCLIP - Call your local BRP dealership | .
503190051
Unavailable
50
Pressure Valve Ass'y | .
503190057
Unavailable
51
Cap Screw | .
503190054
Unavailable
52
Purge Screw | .
503190052
Unavailable
53
O-Ring | .
503190053
Unavailable
54
Washer | .
503190059
Unavailable
55
Washer 5/8 | .
503190060
Unavailable
56
Locking Nut | .
503190058
Unavailable
