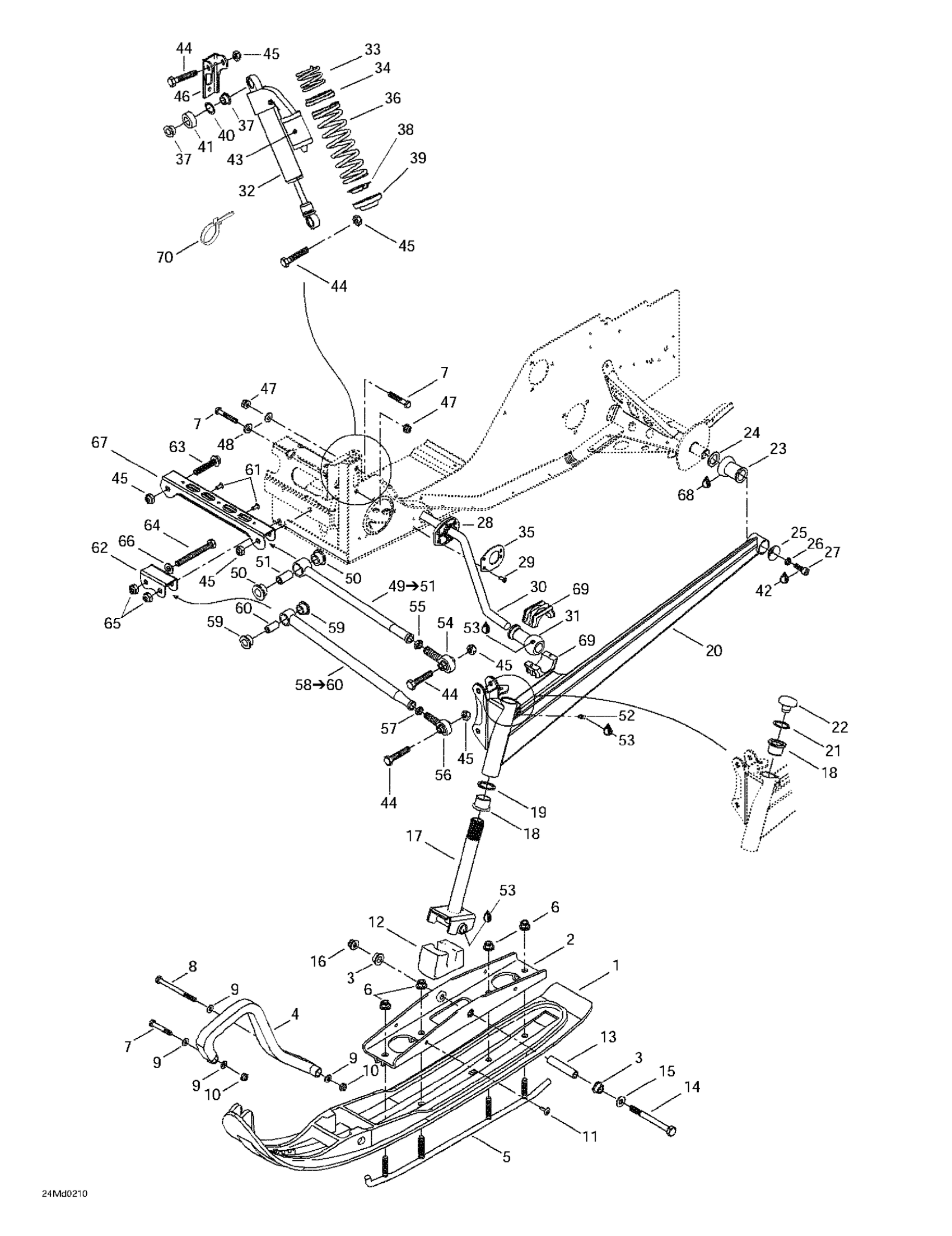

Ski-Doo MX Z X 440, 2002 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$35.99

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Screw M8 X 50

207085044

$1.48

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

Ski Stopper

570070400

Unavailable

13

Spacer

506133300

$23.99

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.58

16

Flange Nut M10

732610084

$6.79

17

Ski Leg

506128100

Unavailable

18

Cushion

505070003

$9.23

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH Arm

505070828

Unavailable

LH Arm

505070829

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$12.99

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

$0.92

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

28

Bushing

505070533

Unavailable

29

Pop Rivet 3/16”

390407200

$0.70

30

Stabilisator

505070896

Unavailable

31

Ball Joint Block

505070898

Unavailable

32

RH Shock

505070796

Unavailable

LH Shock

505070797

Unavailable

33

Spring

505070575

Unavailable

34

SPRING SPACER - Call your local BRP dealership | Adrenaline

505070538

Unavailable

35

Plate

505070542

Unavailable

36

SPRING - Call your local BRP dealership

505070941

Unavailable

37

BUSHING - Call your local BRP dealership

506120200

Unavailable

38

Cap

505070915

Unavailable

39

Spring Stopper

505070913

Unavailable

40

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

41

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

42

Grease, Super Lube

293550030

$28.99

43

Shock Decal

516000183

Unavailable

44

Hex. Screw M10 X 55

207005544

$2.22

45

Elastic Locking Nut M10 X 1.5

233601416

$1.69

46

RH Shock Bracket

505070725

Unavailable

LH Shock Bracket

505070726

Unavailable

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Washer

506151245

$0.93

49

Adjustable Upper Arm Ass'y | Includes 49 - 51.

505070487

Unavailable

50

CUSHION - Call your local BRP dealership

506149100

$14.49

51

Bushing

505070041

Unavailable

52

Grease Fitting

408200700

$3.49

53

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

54

Ball Joint

505070818

Unavailable

55

Nut Hexagonal RH.

232026414

$1.48

56

RH Ball Joint

505070820

Unavailable

57

Hex. Jam Nut M14

232170411

$1.48

58

ADJUSTABLE LOWER ARM ASS'Y - Call your local BRP dealership | Includes 58 - 60.

505070483

Unavailable

59

CUSHION - Call your local BRP dealership

506149100

$14.49

60

Bushing | 600 SUV

506149200

Unavailable

61

Pop Rivet 3/16"

390402200

$0.35

62

Lower Arm Bracket

505070290

Unavailable

63

Hex. Flange Screw M10 X 55

207605544

$3.38

64

Hex. Screw M12 x 100

230020044

Unavailable

65

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

66

Flat Washer 12 mm

234021410

$0.72

67

Upper Arm Bracket

505070010

Unavailable

68

Grease, Super Lube

293550030

$28.99

69

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

70

Tie-Rap 180 mm

414115200

$0.11
