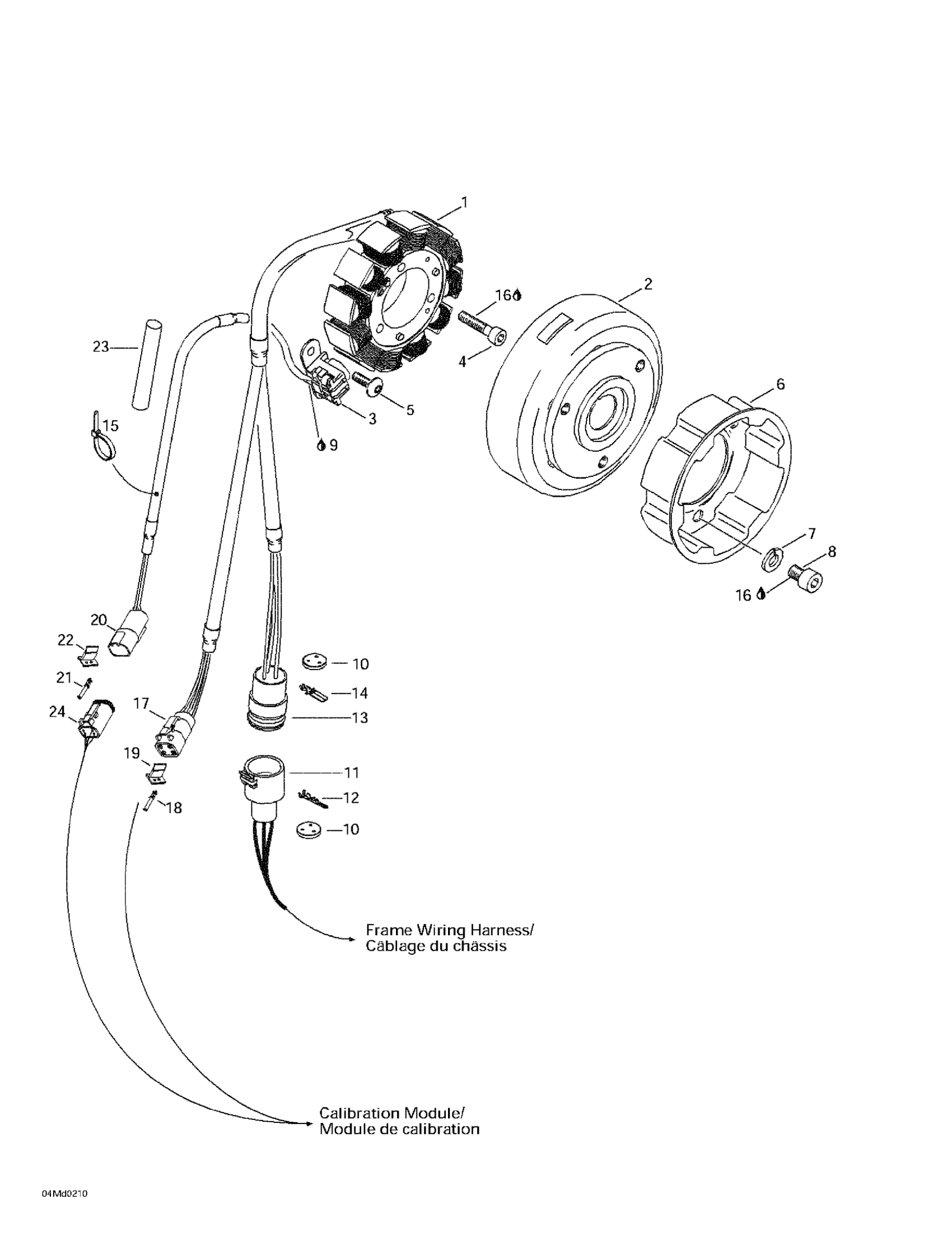

Ski-Doo MX Z X 440, 2002 Magneto 12V 290W Diagram

#

Description
Price

1

Startor Plate Ass'y

410922931

Unavailable

2

Flywheel

410922926

Unavailable

3

Pickup Ass'y

410922925

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Torx Screw M6 X 16

420640324

$2.11

6

Starting Pulley

420852590

$29.49

7

Washer-Lock Din.128

420945832

$1.15

8

Socket Head Screw M8 X 12

420841520

$1.69

9

Not Available As Spare Part - Friction Washer

Unavailable

10

SEAL - Call your local BRP dealership

409208500

Unavailable

11

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

12

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

13

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

14

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Loctite 243, 10 ml

293800060

$21.49

17

Female Terminal Housing (4 circuits)

515175245

Unavailable

18

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Female Lock (2 circuits)

515175708

Unavailable

21

Male Terminal

278000631

$4.39

22

Female Wedge, 4 Circuits

278000636

$4.39

23

Tubing 10 MM 1000MM Long

219704407

$2.79

24

Male Connector, 4 Circuits | CE

278000739

$19.49
