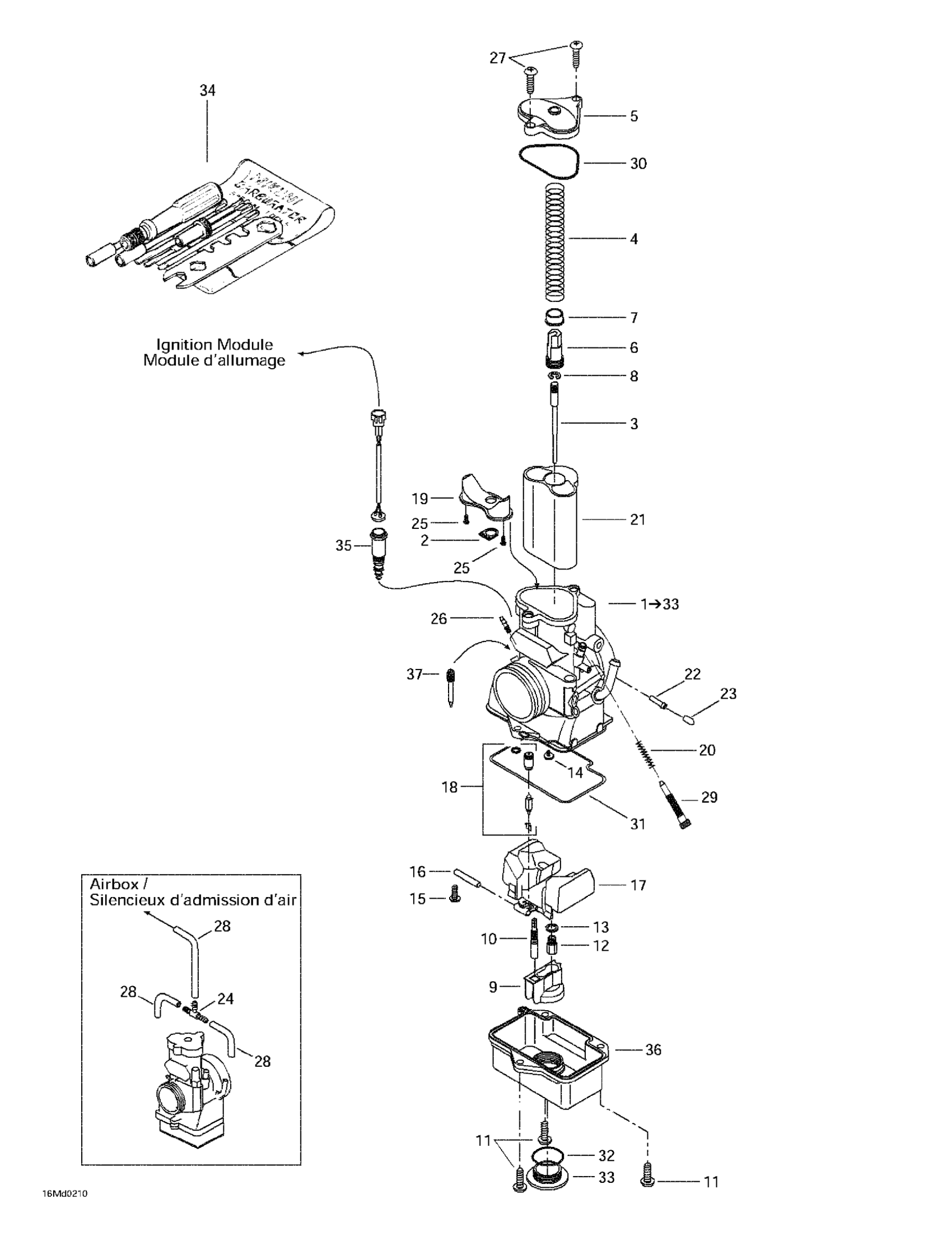

Ski-Doo MX Z X 440, 2002 02- Carburetors Diagram
#
Description
Price
1
Carburetor TMX-34 (PTO) | Includes 1 - 33.
403138409
Unavailable
Carburator TMX-34 (MAG)
403138708
Unavailable
3
Needle Jet J8-6FIY04
404161999
Unavailable
4
SPRING - Call your local BRP dealership
404161864
Unavailable
5
TOP CAP - Call your local BRP dealership
404161857
Unavailable
6
GUIDE HOLDER - Call your local BRP dealership
404161856
Unavailable
7
RING - Call your local BRP dealership
404161863
Unavailable
9
HOLDER - Call your local BRP dealership
404161855
Unavailable
10
PILOT JET 25 - Call your local BRP dealership
404161870
Unavailable
13
WASHER - Call your local BRP dealership
404161862
Unavailable
15
SCREW - Call your local BRP dealership
404138600
Unavailable
16
PIN - Call your local BRP dealership
404161860
Unavailable
17
FLOAT - Call your local BRP dealership
404161859
Unavailable
19
VENTURI - Call your local BRP dealership
404161974
Unavailable
20
SPRING - Call your local BRP dealership
404161849
Unavailable
21
PISTON VALVE 4.0 - Call your local BRP dealership
404161867
Unavailable
22
Pilot Jet
404161997
Unavailable
24
T Fitting
270500347
Unavailable
25
SCREW - Call your local BRP dealership
404161852
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
34
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
35
SELENOID - Call your local BRP dealership
404161998
Unavailable
36
Body Float
404161994
Unavailable
37
Pilot Jet 35
404161996
Unavailable
