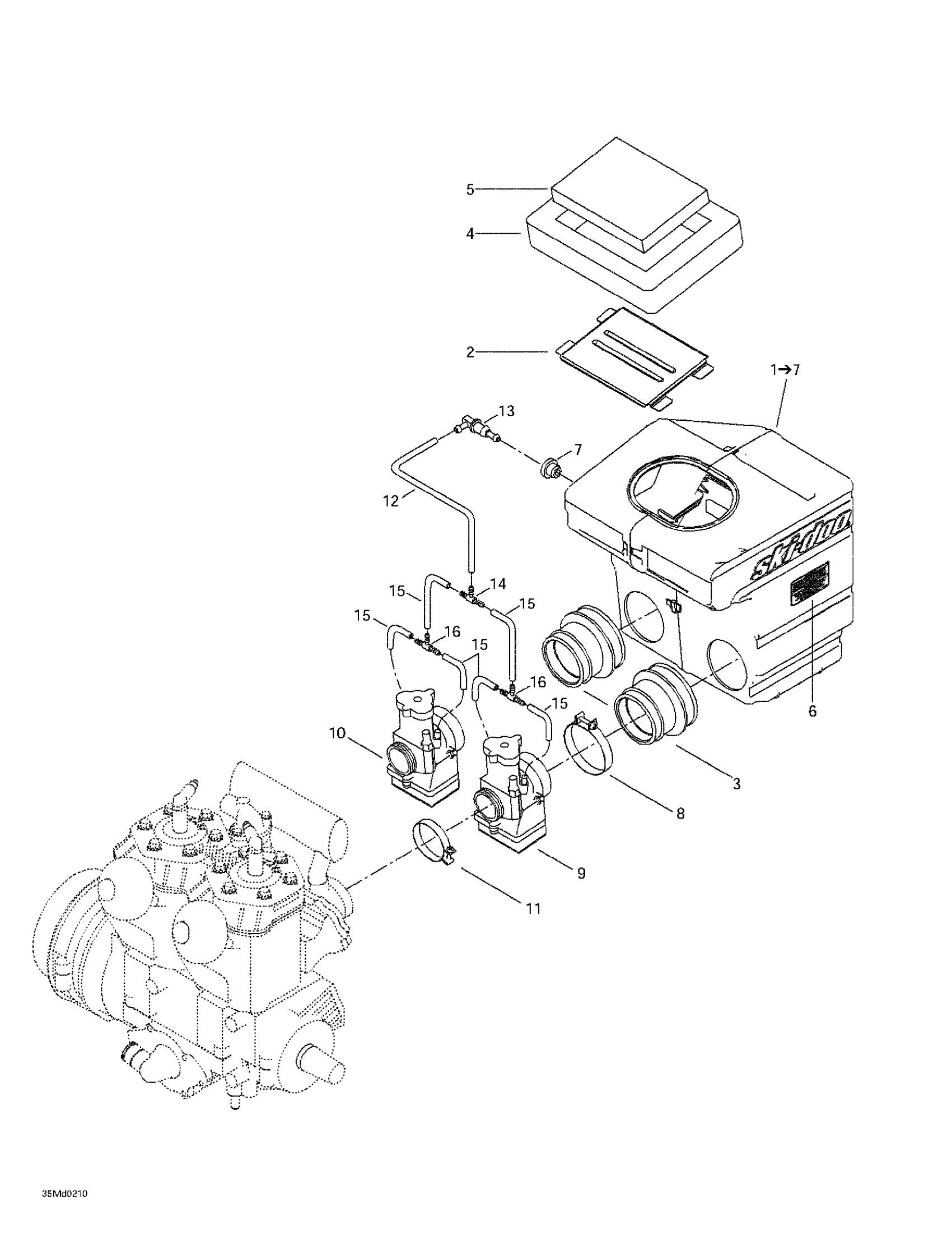

Ski-Doo MX Z X 440, 2002 02- Air Intake System Diagram
#
Description
Price
1
Air Intake Ass'y | Includes 1 - 7.
508000270
Unavailable
2
INTAKE GRILL - Call your local BRP dealership
508000004
Unavailable
3
Air Intake Adaptor (34 mm)
508000006
Unavailable
4
Lower Foam
508000099
Unavailable
6
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
8
GEMI CLAMP - Call your local BRP dealership | 800RE
508000007
Unavailable
9
Carburator TMX-34 (PTO)
403138709
Unavailable
10
Carburator TMX-34 (MAG)
403138708
Unavailable
11
GEMI CLAMP - Call your local BRP dealership
512059005
Unavailable
16
T Fitting
270500347
Unavailable
