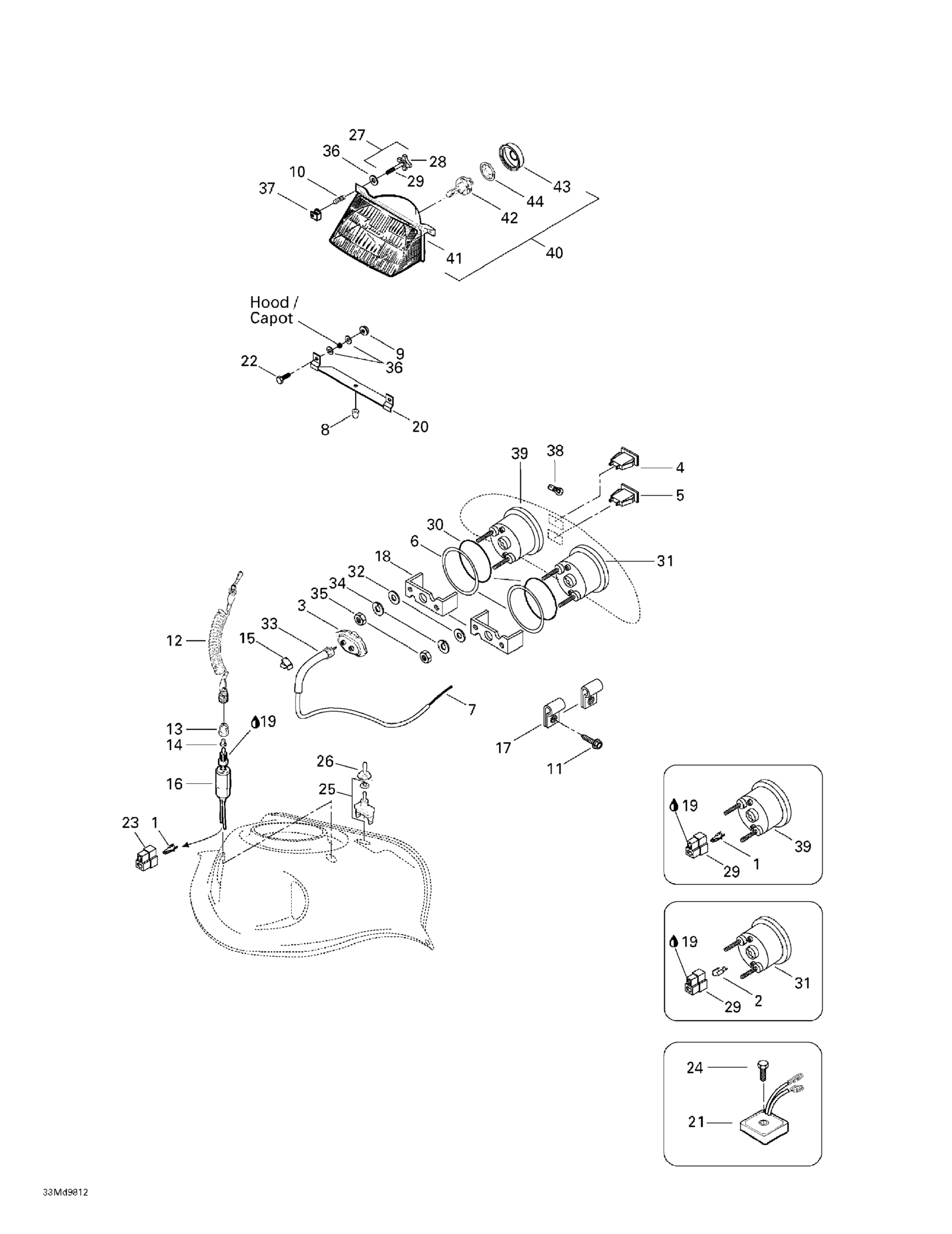

Ski-Doo MX Z X 400 LC, 1998 10- Electrical System Diagram
#
Description
Price
1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
2
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
3
Drive Angle | Formula S.
572022300
Unavailable
4
Pilot Lamp (Blue)
410109600
Unavailable
5
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
6
Washer
517258500
Unavailable
8
RUBBER STOPPER - Call your local BRP dealership
410608200
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
13
Switch Nut
415073500
Unavailable
18
Case Holder
414806500
Unavailable
19
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
20
Headlamp Support
517218500
Unavailable
21
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
23
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
24
Hex. Screw M6 x 35
732600016
Unavailable
27
Adjuster Screw Ass'y | Includes 44 - 46.
415100700
Unavailable
29
Screw M4 x 40
732603004
Unavailable
30
O-Ring
414807100
Unavailable
31
Speedometer (KMH)
415096300
Unavailable
Speedometer (MH)
415096400
Unavailable
33
Speedometer Cable
414761400
Unavailable
34
Lock Washer
414806700
Unavailable
35
Nut
414806900
Unavailable
36
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
37
Projector Nut
572078600
Unavailable
38
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
39
Tachometer | MXZ X 440 LC.
415099100
Unavailable
40
Headlamp | Includes 42 to 45
410609100
Unavailable
41
Headlamp
410608900
Unavailable
43
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
44
BULB HOLDER - Call your local BRP dealership
410608300
Unavailable
