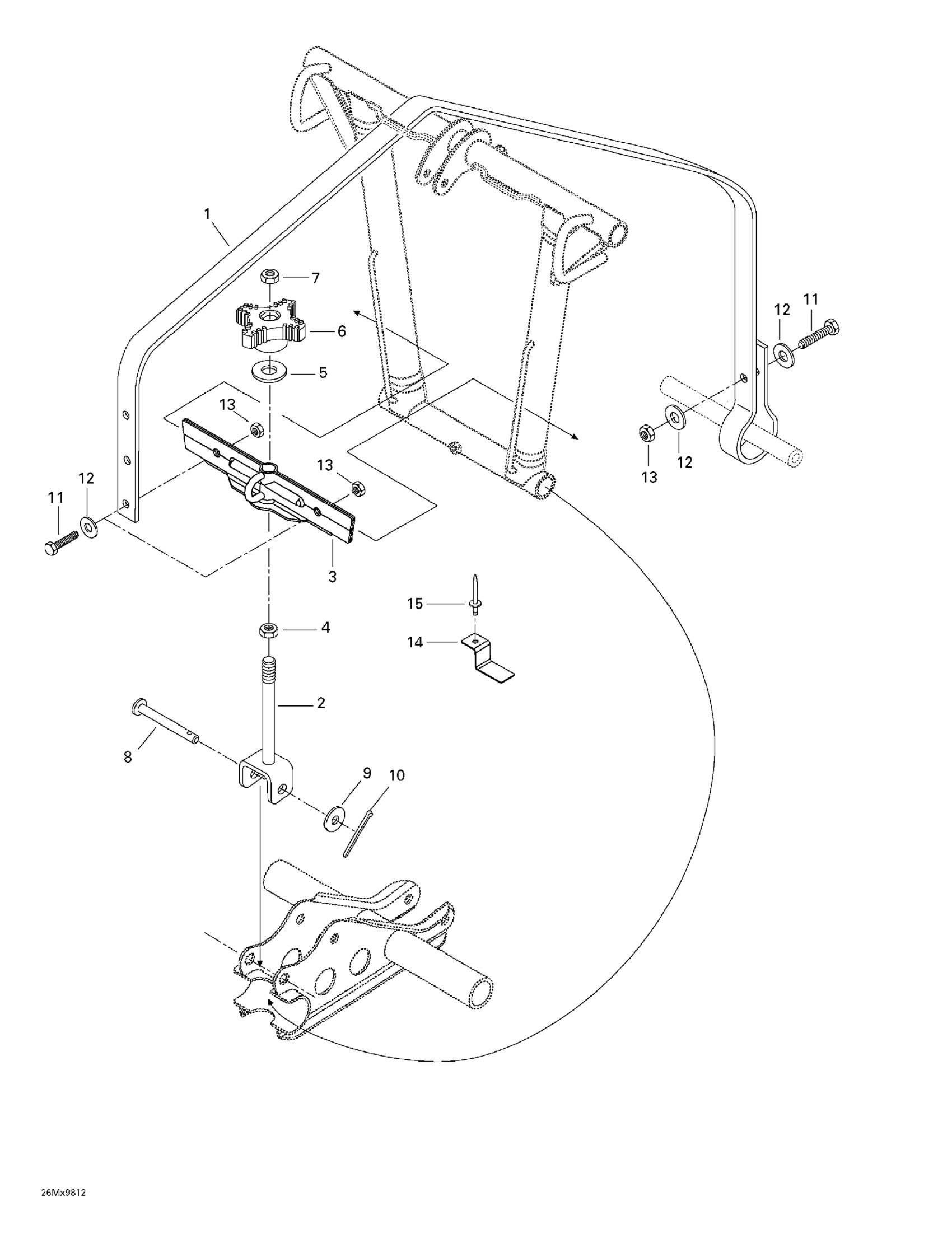

Ski-Doo MX Z X 400 LC, 1998 08- Rear Suspension Quick Adjustment Diagram

Quick Adjustment Kit | Includes 1 - 15.

861765500

Unavailable

Strap

570049700

Unavailable

Belt Bracket

503188400

Unavailable

Stopper

503166300

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.37

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Clevis Pin

414803900

Unavailable

Flat Washer 10 mm

234001410

$1.26

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Flat Washer 8 mm

234082410

$1.47

Hex. Elastic Stop Nut M8

232581414

$0.56

Guide Stopper

503188500

Unavailable

Pop Rivet 5/32” | Model Europe

390404300

$0.35
