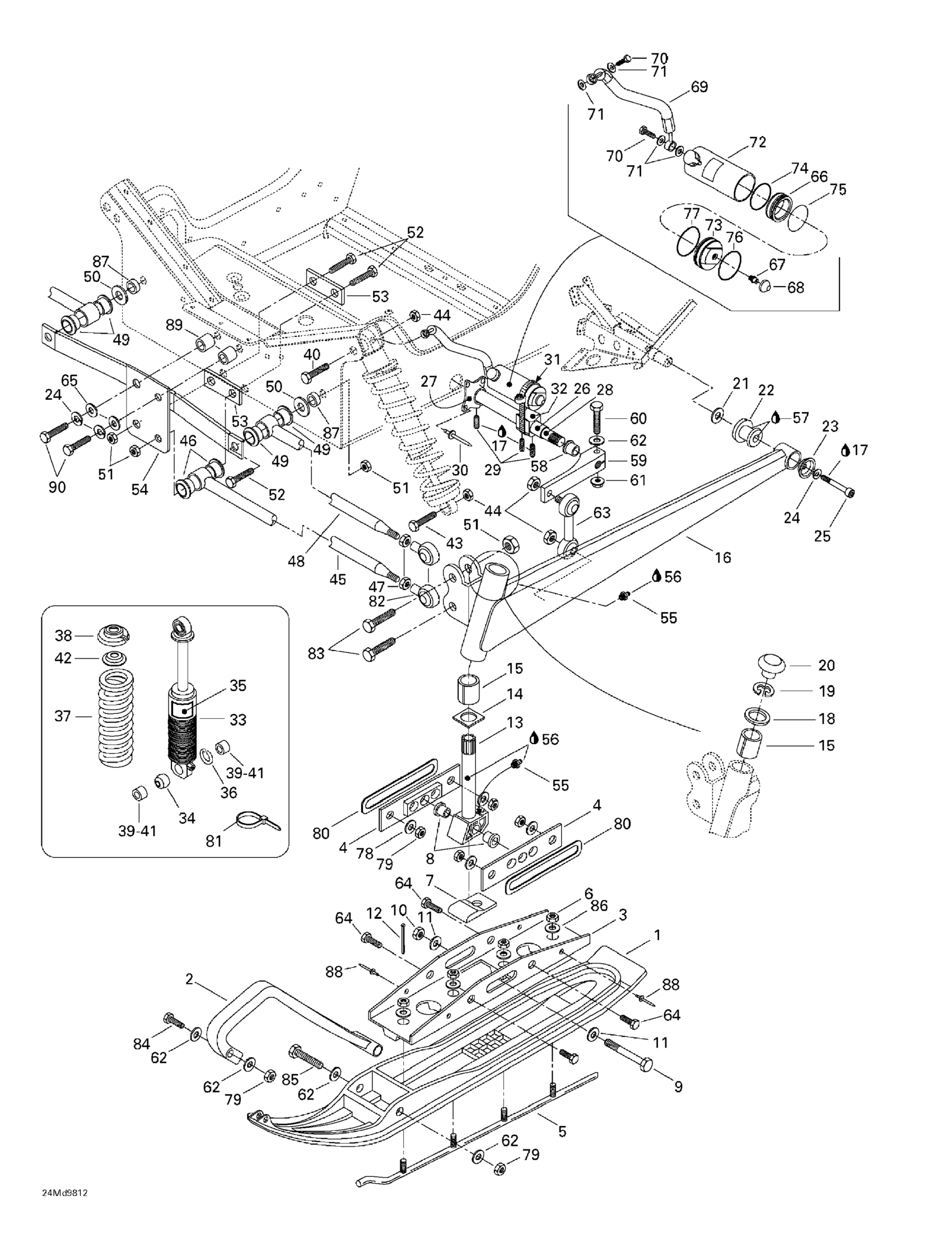

Ski-Doo MX Z X 400 LC, 1998 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

Ski-Liner Flex

505070189

$127.99

2

Black, Handle

505070963

$35.99

3

Bridge

505068700

Unavailable

4

Reinforcement Plate

505067902

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Ski Stopper

570053300

Unavailable

8

Cushion

415068700

Unavailable

9

Hex. Screw M12 x 120

732601277

Unavailable

10

Nut M12

732610080

Unavailable

11

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

12

Cotter Pin

371800900

Unavailable

13

Ski Leg | Includes 15 - 16.

506144500

Unavailable

14

Wear Plate

506081200

Unavailable

15

Cushion

415071300

Unavailable

16

LH Swing Arm (Yellow)

506148500

Unavailable

RH Swing Arm (Yellow)

506148600

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Thrust Washer

506080900

Unavailable

19

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

20

Cap

572091300

$12.99

21

WASHER - Call your local BRP dealership

503146700

Unavailable

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

CUP - Call your local BRP dealership

506079600

Unavailable

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Main Tube

506136200

Unavailable

27

Housing

506139000

Unavailable

28

Stabilisator Bar

506141200

Unavailable

Stabilisator

486073600

Unavailable

Stabilisator

486073800

Unavailable

Stabilisator

486074000

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.12

30

Rivet pop 1/4"

390404900

Unavailable

31

Tridon Gear Clamp

408802000

Unavailable

32

Tank Bracket

506141500

Unavailable

33

Take Apart Shock (LH) | MX Z x 440 LC. (Front Suspension)

415114602

Unavailable

Take Apart Shock (RH) | MX Z x 440 LC. (Front Suspension)

415114600

Unavailable

34

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

35

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

36

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

37

Spring (Yellow)

415108100

Unavailable

38

Spring Stopper

706200881

$12.99

39

BUSHING - Call your local BRP dealership

506120200

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Bushing | MXZ X 440 LC.

506141700

Unavailable

42

Cap

706200785

$4.69

43

Hex. Screw M10 X 55

207005544

$2.22

44

Elastic Locking Nut M10 X 1.5

233601416

$1.69

45

Long Arm Ass'y | Includes 45 - 46.

580669200

Unavailable

46

CUSHION - Call your local BRP dealership

506149100

$14.49

47

Hex. Jam Nut M14

232170411

$1.48

48

Short Arm Ass'y | Includes 48 - 49.

580669300

Unavailable

49

CUSHION - Call your local BRP dealership

506149100

$14.49

50

Flat Washer 12 mm

234021410

$0.72

51

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

52

Hex. Screw M12 x 100

732601113

Unavailable

53

Link Low Plate

415061100

Unavailable

54

Plate Link

415065300

Unavailable

55

Grease Fitting

408200700

$3.49

56

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

57

Grease, Super Lube

293550030

$28.99

58

Cushion

561723300

Unavailable

Cushion

561723300

Unavailable

Cushion

486073900

Unavailable

Bushing

486074100

Unavailable

59

Lever-Stabilizer

506141100

Unavailable

60

Hex. Screw M8 X 45

207084544

$1.48

61

Hex. Flange Elastic Nut M8

233281414

$1.47

62

Flat Washer 8 mm

234081410

$0.83

63

Double Ball Joint

415042300

Unavailable

64

Hex. Screw M8 X 25

207182544

$0.90

65

Flat Washer 8 mm

234082410

$1.47

66

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

67

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

68

Valve Cap

414888313

Unavailable

69

LH Hose

415093811

Unavailable

RH Hose

415093815

Unavailable

70

Bolt

415093810

$16.86

71

O-Ring

415038700

$42.99

72

Tank

415093809

Unavailable

73

Guide

415093808

Unavailable

74

O-Ring

415093807

$35.99

75

Piston Ring | Not Shown

415093806

$16.86

76

STOP RING - Call your local BRP dealership

415093805

Unavailable

77

O-Ring

415093804

$4.54

78

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

79

Hex. Elastic Stop Nut M8

232581414

$0.56

80

Spacer

505068500

Unavailable

81

Tie-Rap 180 mm

414115200

$0.11

82

RH Ball Joint

415111200

Unavailable

83

Hex. Screw M12 x 55

222025565

Unavailable

84

Hex. Screw M8 X 50

207085044

$1.48

85

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

86

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Pop Rivet 3/16"

293150100

$1.09

89

Spacer

506146300

Unavailable

90

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable
