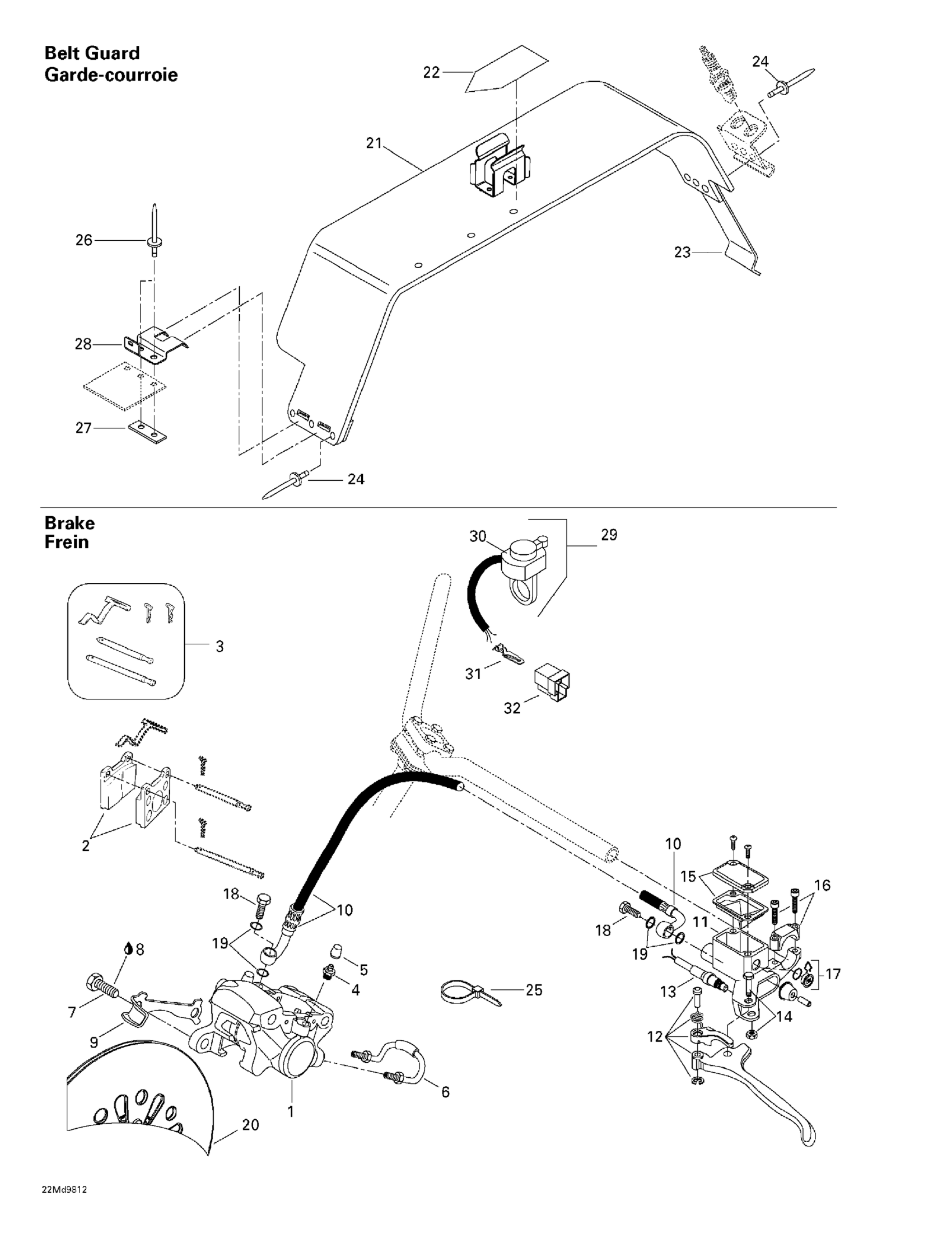

Ski-Doo MX Z X 400 LC, 1998 06- Hydraulic Brake And Belt Guard Diagram

Caliper (X) | MX Z 600. MX Z 700. MX Z 800.

507032204

Unavailable

Brake Pad Kit

415084600

$79.49

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Loctite 243, 10 ml

293800060

$21.49

Locking Tab

507029900

Unavailable

HOSE (RACING) - Call your local BRP dealership | MX-Z 700.

415064600

Unavailable

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

LEVER - Call your local BRP dealership

507032428

Unavailable

Microswitch

507032366

$98.99

Pin Ass'y

415030000

$19.99

Cap

415029900

$41.49

Clamp And Screw Kit

507032477

$23.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

Brake Disk Ass'y

507030900

Unavailable

Belt Guard Ass'y | Includes 21 - 24.

517293400

Unavailable

Warning Decal

415028900

Unavailable

Tool Box Spring

414941800

Unavailable

Pop Rivet 3/16"

390402200

$0.35

Tie-Rap 180 mm

414115200

$0.11

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Pulley Guard Bracket

518314200

Unavailable

Light Switch Ass'y | Includes 29 - 32.

515167600

Unavailable

Dimmer Switch | MXZ X 440 LC.

410105400

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable
