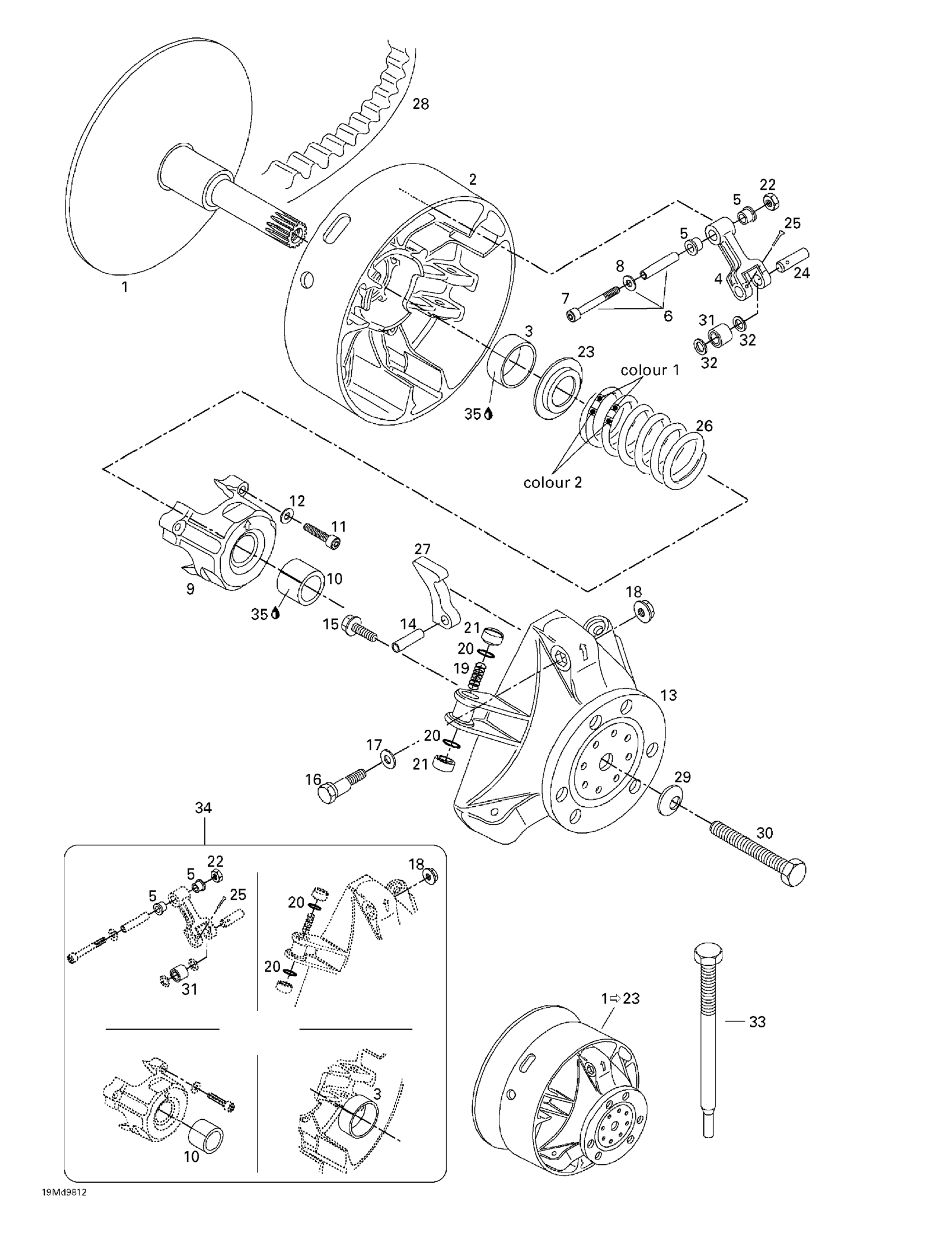

Ski-Doo MX Z X 400 LC, 1998 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417221400

Unavailable

1

Fixed Flange | MXZ X 440 LC.

417003511

Unavailable

2

Outer Half Ass'y | Includes 2 - 3.

417003704

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

10

Bushing

417004501

$24.99

11

Allen Screw M6 x 40

222964066

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Governor Cup

417222033

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$4.09

18

Hex. Flange Nut M6

233061414

$1.68

19

Spring

417005700

$4.76

20

O-Ring

732401030

$0.98

21

Slider Shoe This part replaces 420460045.

417223021

$5.90

22

Elastic Stop Nut M6

232561414

$0.55

23

Spring Seat

417005000

Unavailable

24

Pin

504151700

Unavailable

25

Cotter Pin

250400060

$2.00

26

SPRING, WHITE - Call your local BRP dealership

417222004

Unavailable

27

Ramp 293X

417222048

Unavailable

28

Drive Belt

414860700

$104.99

29

Spring Washer 14 mm

250200006

$6.99

30

Drive Pulley Bolt

417120000

$65.49

31

Roller

417222947

$21.99

32

Stopper Washer

417004302

$15.90

33

Puller This part replaces 529022400.

529000064

$71.99

34

Clutch Repair Kit

417006100

$189.99

35

Loctite 609, 10 ml

413703100

$26.99
