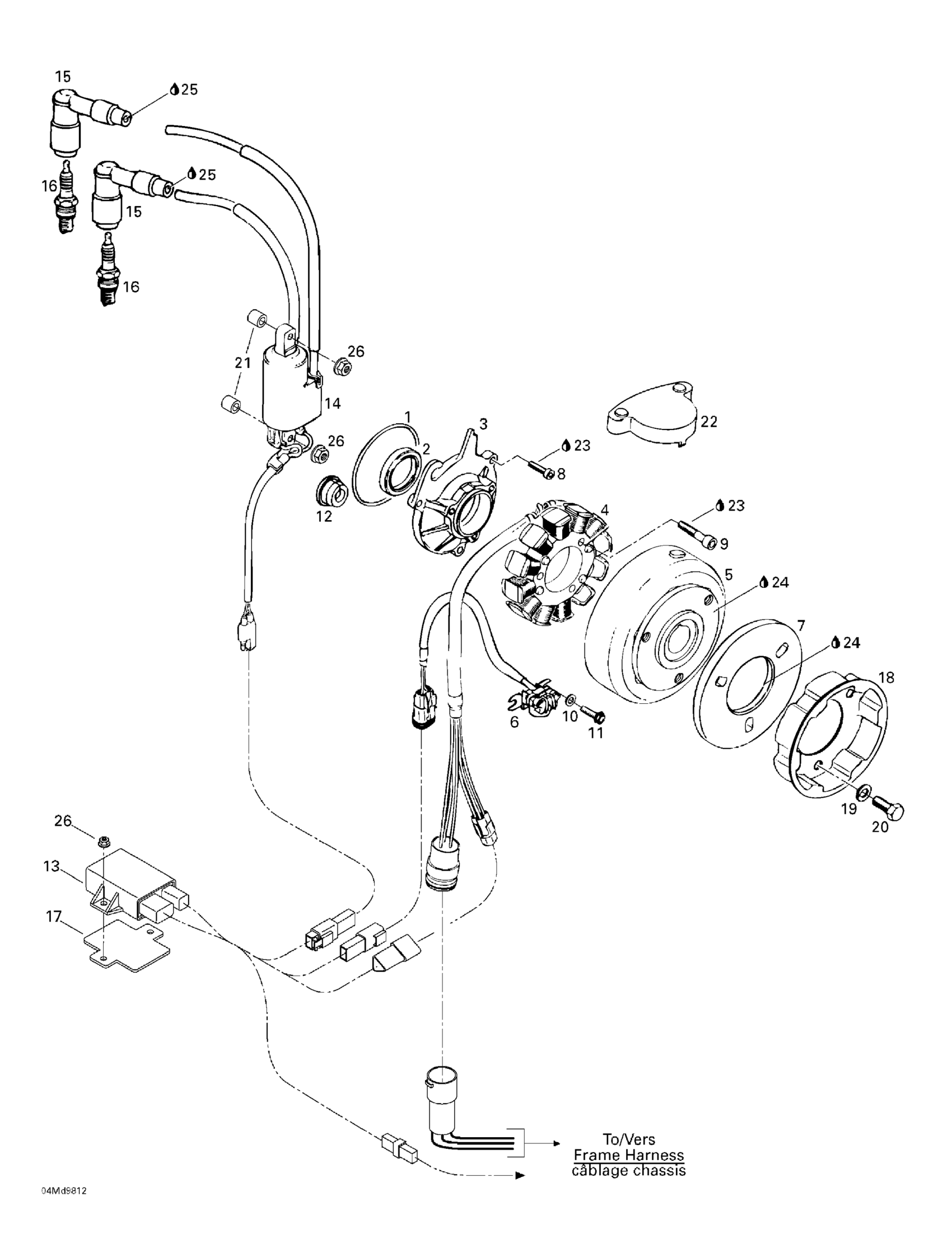

Ski-Doo MX Z X 400 LC, 1998 03- Magneto 12V 220W Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

420850430

Unavailable

2

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

3

Armature Plate

420810265

Unavailable

4

Magneto Ass'y 12V 220W | Includes 4 - 6. Formula 500. Formula 500 Deluxe.

410922000

Unavailable

4

Stator Ass'y | Formula Deluxe 583.

410922100

Unavailable

5

Magneto Flywheel | Formula 500. Formula 500 Deluxe.

410922200

Unavailable

6

Pick Up Ass'y | Formula Deluxe 583.

410921100

Unavailable

7

Flywheel | Formula Deluxe 700.

420866757

Unavailable

8

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

9

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

Allen Screw M5 x 16

420840514

$1.90

12

Cable Crommet | Touring E. Touring E LT (2). Touring LE.

420960288

Unavailable

13

Ignition Module

415113900

Unavailable

14

Ignition Coil

410922300

Unavailable

15

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

17

Insulator

415114000

Unavailable

18

Starting Pulley

420852410

Unavailable

19

Washer-Lock Din.128

420945832

$1.15

20

Hex. Screw M8 X 20

207182044

$0.74

21

Spacer

517203200

$16.18

22

Pick-Up Cover

420810700

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99

25

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
