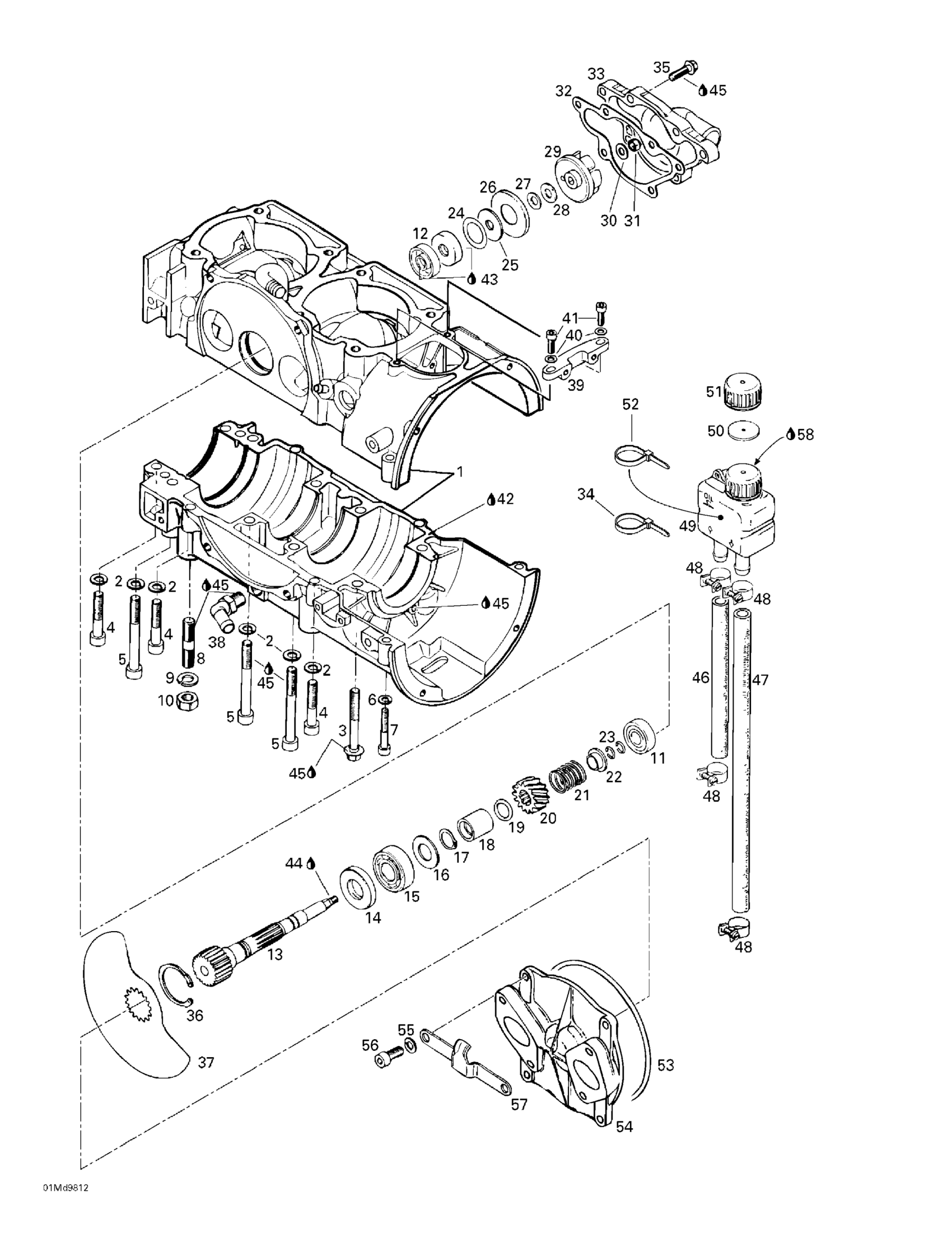

Ski-Doo MX Z X 400 LC, 1998 01- Crankcase, Rotary Valve, Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7. Formula 500. Formula 500 Deluxe.

420888011

Unavailable

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

4

Socket Head Screw M8 X 45

420841561

Unavailable

5

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

8

Stud M10 x 23/17

420941646

Unavailable

9

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.37

11

Ball Bearing

420932797

$19.99

12

Oil Seal This part replaces 420850710.

420850711

$19.99

13

Rotary Valve Shaft | Formula Deluxe 583.

420837242

Unavailable

14

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

15

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

16

SHIM - Call your local BRP dealership

420227439

Unavailable

17

SNAP RING - Call your local BRP dealership

420845450

Unavailable

18

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

19

O-Ring

293300024

$8.57

20

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

21

SPRING - Call your local BRP dealership

420938810

Unavailable

22

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

23

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

24

SHIM - Call your local BRP dealership | Formula Deluxe 583.

420944462

Unavailable

25

Rubber Washer | Formula Deluxe 583.

420850890

$4.44

26

Supporting Plate | Formula Deluxe 583.

420827970

$14.28

27

Thrust Washer

420227945

$4.01

28

Washer

420227155

Unavailable

29

WATER IMPELLER - Call your local BRP dealership

420922036

Unavailable

30

Flat Washer

224061121

$0.53

31

Locking Nut M6

420842042

Unavailable

32

Gasket

420931355

Unavailable

33

Water Pump Housing

420922551

Unavailable

34

Tie-Rap 180 mm

414115200

$0.11

35

Hex. Screw M6 X 25

420240034

$1.90

36

Lock Ring

420945880

$4.44

37

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

38

Angular Tube

420922242

$14.83

39

Fixation

420851280

Unavailable

40

WASHER - Call your local BRP dealership

420827800

Unavailable

41

Socket Head Screw M5 X 20

420441341

$4.02

42

Sealant, 100 gr

413707100

Unavailable

43

Dow Corning 111, 150 g

413707000

$59.99

44

Sealant Loctite 648

219703000

$45.99

45

Loctite 243, 10 ml

293800060

$21.49

46

Oil Line 140 mm

420956231

Unavailable

47

OIL TUBE - Call your local BRP dealership This part replaces 420956232.

420956230

Unavailable

48

CLAMP - Call your local BRP dealership

420951260

Unavailable

49

Oil Tank Ass'y | Includes 25 to 27

420956240

$73.99

50

Rubber Gasket

420850350

$5.39

51

Oil Tank Cap

420956250

$15.28

52

Tie Wrap 368 mm

293750008

$1.04

53

O-Ring

420831360

Unavailable

54

Rotary Valve Cover Ass'y

420912571

Unavailable

55

Washer-Lock Din.128

420945832

$1.15

56

Socket Head Screw M8 X 20

205082044

$1.15

57

Intake Silencer Plate

420851345

Unavailable

58

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable
