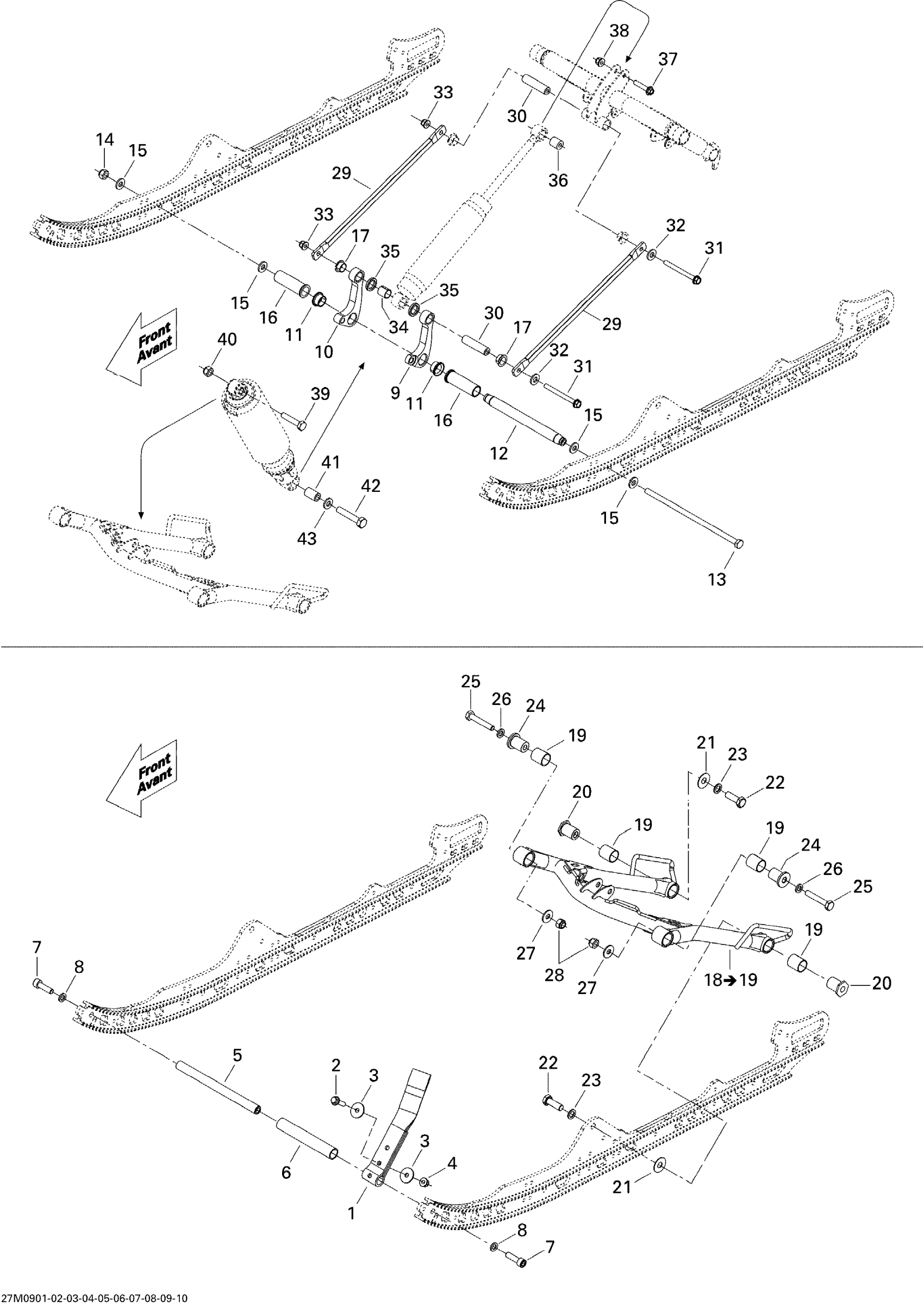

Ski-Doo MX Z Trail, 2009 08- Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$20.99

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Flat Washer

224081301

$0.88

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Axle Strap

503191260

$30.99

6

Spacer

503191448

$11.99

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

Washer

503189564

$0.74

9

LH Rocker Arm

503191890

$62.49

10

RH Rocker Arm

503191894

$62.49

11

Bushing

503191552

$5.93

12

Center Shaft

503191764

$63.49

13

LONG BOLT - Call your local BRP dealership

503191352

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

Washer

732900049

$0.58

16

Center Bushing

503191351

$8.29

17

Swivel Bushing

503191555

$7.83

18

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

19

Bushing

503191554

$6.14

20

Lower Axle

503191966

$15.89

21

Washer

503190656

$2.96

22

Hex. Cap Screw M12 X 35

250000537

$3.17

23

Washer

503189276

$3.28

24

Axle

503190698

$20.99

25

Hex. Cap Screw M10 X 60

207006056

$7.51

26

Washer

503191910

$2.32

27

Washer

503191910

$2.32

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

LINK ROD - Call your local BRP dealership

503191159

Unavailable

30

Axle Bar (Long)

503190643

$17.39

31

Hex. Flange Screw

207688544

$1.69

32

Not Available As Spare Parts

XXX

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Bushing

503191553

$5.93

35

Plastic Spacer

503190694

$2.11

36

Bushing

414936000

$13.99

37

Hex. Flange Screw M8 X 40

207684044

$1.48

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

40

Elastic Stop Nut M10

232500416

$1.90

41

Central Shock Axle

503190604

$14.15

42

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

43

Washer

503189564

$0.74
