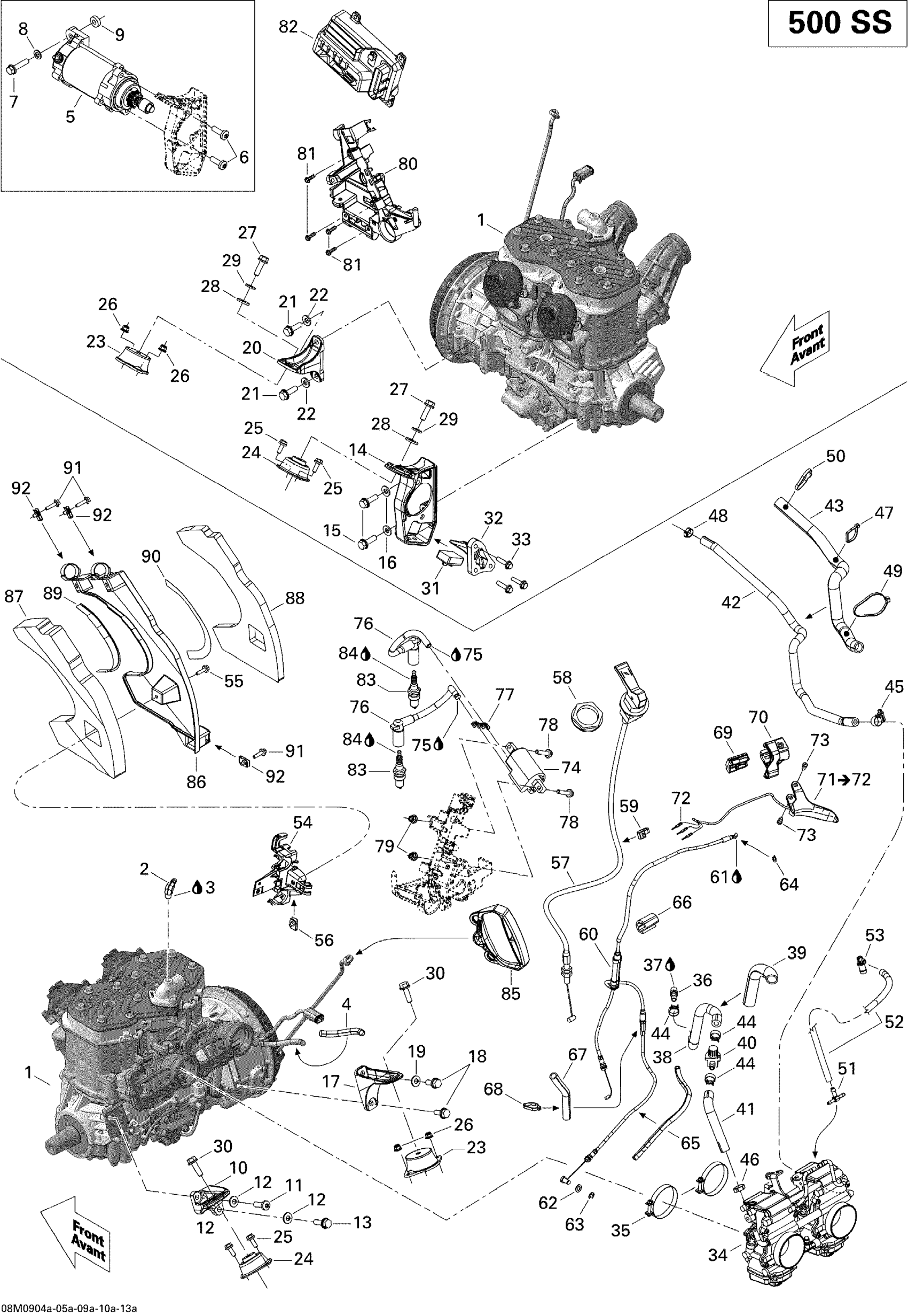

Ski-Doo MX Z Trail, 2009 Engine And Engine Support 500SS Diagram

#

Description
Price

1

Short Block 593

420059312

$2,139.99

2

ELBOW FITTING 90 - Call your local BRP dealership

293700045

$12.11

3

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

4

Tubing 10 MM 1000MM Long

219704407

$2.20

5

Starter

515178473

$319.49

6

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

7

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

8

Flat Washer With Teflon 8 mm

250200008

$3.12

9

Washer

515176500

$10.83

10

Rear Support, PTO

512060478

$29.97

11

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

12

Conical Spring Washer M8

234281474

$1.25

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

14

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

16

Conical Spring Washer M8

234281474

$1.25

17

REAR MAG SUPPORT - Call your local BRP dealership

512060470

$20.74

18

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

19

Conical Spring Washer M8

234281474

$1.25

20

Front Support, MAG

512060469

$31.51

21

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

22

Conical Spring Washer M8

234281474

$1.25

23

Rubber Mount

512060729

$69.97

24

Rubber Mount

512060387

$42.28

25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

28

Yellow, Washer

503183200

$3.00

29

Conical Spring Washer M8

234281474

$1.25

30

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

31

STOPPER - Call your local BRP dealership

512060488

$13.95

32

Stopper Support

512060576

$28.43

33

Hex. Flange Screw M6 X 25

207562544

$1.39

34

CARBURATOR KIT, TM40-B394 - Call your local BRP dealership

403138804

$1,041.51

35

Gemi Clamp

512059835

$10.52

36

Male Connector 1/8"-27 NPT

512060196

Unavailable

37

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

38

Hose Formed

512060355

$23.05

39

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40

Valve 5/16” | Grand Touring 500.

512059324

$42.28

41

Hose Formed

512060353

$22.28

42

Hose Formed

512060347

Unavailable

43

Tubing 16 Mm 1000Mm Long

219704408

$6.23

44

Spring Clamp

414655700

$0.68

45

Norma Clamp

293650084

$4.00

46

Oetiker Clamp

293650125

$2.69

47

Tie-Rap 180 mm

414115200

$0.09

48

Oetiker Clamp

293650046

$2.33

49

Tie-Rap 180 mm

414115200

$0.09

50

Tie-Rap 180 mm

414115200

$0.09

51

T-Fitting

572045500

$7.31

52

Polyurethane Hose 10000Mm Long

219704410

$46.12

53

Male Connector

414580700

$3.38

54

Solenoid Support

512060298

$12.52

55

Hex.Flange Screw M5 X 20

207652044

$1.56

56

Panel Nut M5 X 0.8

250000958

$3.48

57

Choke Cable

512060672

$45.99

58

Plastic Nut

512060671

$0.98

59

Tie-Rap 180 mm

414115200

$0.09

60

Throttle Cable

512060886

$74.58

61

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

62

Flat Washer 8 mm, Nylon

234081100

$1.00

63

Circlip

414753500

$0.59

64

Circlip

414274500

$0.74

65

Tubing 6 Mm 3000Mm Long

219704425

$13.14

66

Protector

512060313

$9.31

67

Tubing 10 MM 1000MM Long

219704407

$2.20

68

Tie-Rap 180 mm

414115200

$0.09

69

Upper Housing Ass'y

512060198

Unavailable

70

Lower Housing

512060860

$16.89

71

Throttle Handle Ass'y

512061252

$117.66

72

Male Terminal

515175232

$1.49

73

Flange Screw

732601143

$4.02

74

Ignition Coil

512059968

$49.97

75

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

76

Cable

512060291

$48.43

77

Plastic Clip, Spark Plug Wire

410914600

$4.62

78

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

80

Coils Support

512060924

$9.31

81

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

82

Calibrated Module, 600

512060680

$749.99

83

Spark Plug NGK BR10ECS

512060354

$9.70

84

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

85

Starter Grip

512060136

$14.54

86

Noise Shield

512060338

$17.66

87

Inner Noise Foam

512060341

$17.66

88

Outer Noise Foam

512060342

$17.66

89

Heat Shield

512060574

$7.35

90

Heat Shield

512060575

$7.35

91

Hex.Flange Screw M5 X 20

207652044

$1.56

92

Panel Nut M5 X 0.8

250000958

$3.48
