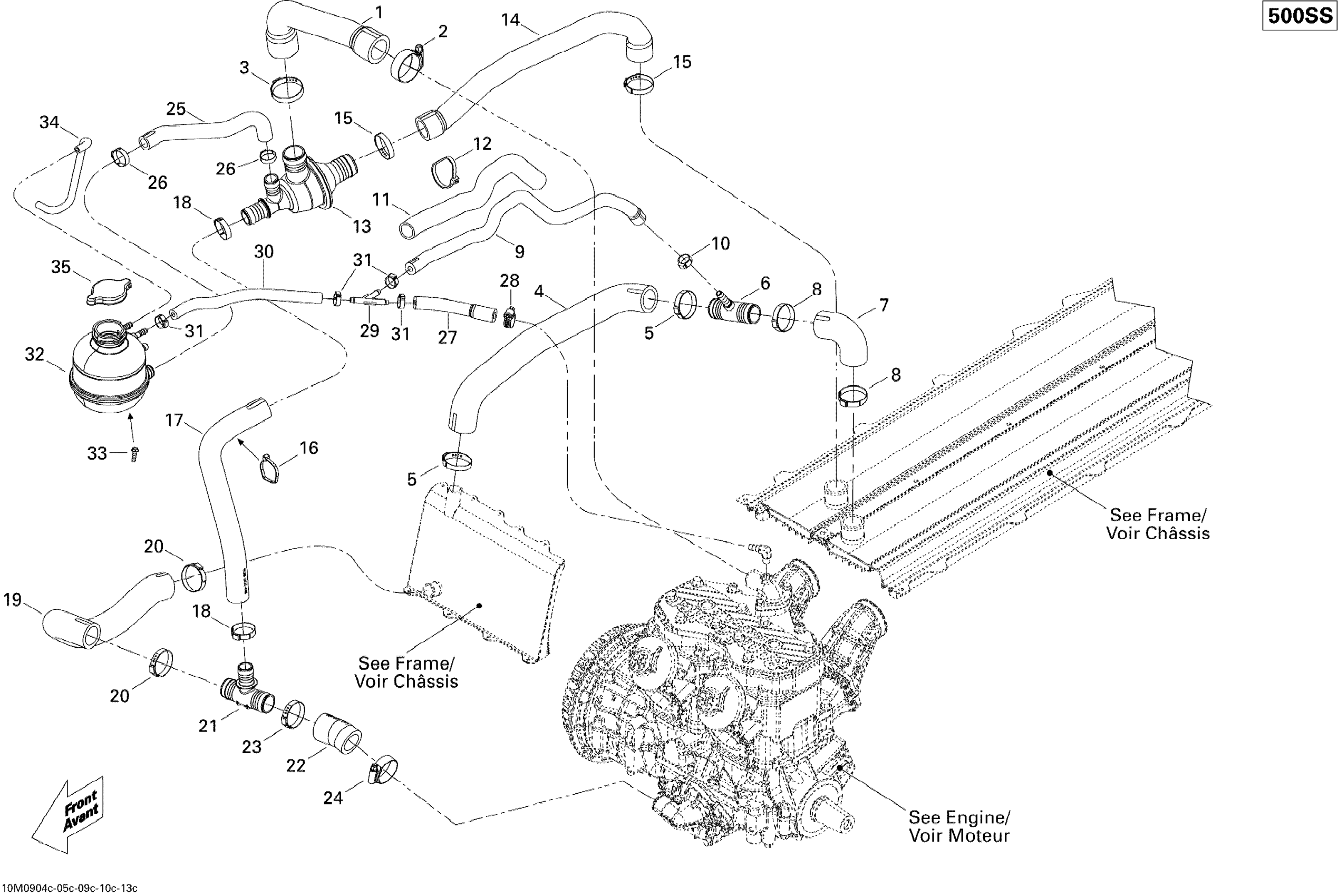

Ski-Doo MX Z Trail, 2009 Cooling System Diagram

#

Description
Price

1

ENGINE OUTLET HOSE - Call your local BRP dealership

509000669

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

4

Radiator Hose

509000670

$34.58

5

OETIKER CLAMP - Call your local BRP dealership

509000606

$4.78

6

T-Fitting

509000510

$11.52

7

Radiator Hose This part replaces 509000671.

509001066

$18.43

8

OETIKER CLAMP - Call your local BRP dealership

509000606

$4.78

9

Bleeder Hose

509000502

$23.82

10

Crimp Clamp, 15.3-706R

293650047

$2.64

11

Tubing 16 Mm 1000Mm Long

219704408

$6.23

12

Tie-Rap 180 mm

414115200

$0.09

13

Thermostat Housing

509000499

$39.97

14

Thermostat Outlet Hose

509000679

$25.35

15

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

16

Tie-Rap 180 mm

414115200

$0.09

17

Bypass Hose

509000672

$24.58

18

Crimp Clamp

293650099

$4.60

19

Radiator Hose

509000673

$22.28

20

OETIKER CLAMP - Call your local BRP dealership

509000606

$4.78

21

T-Fitting

509000372

$7.87

22

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

23

Oetiker Gear Clamp

509000181

$3.61

24

Aba Gear Clamp, 26-38 MM

509000443

$5.68

25

Filling Hose

509000676

$23.82

26

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

27

BLEEDER HOSE - Call your local BRP dealership

509000516

$16.89

28

Tridon Gear Clamp

293650170

$1.74

29

Y-Fitting

293710059

$8.19

30

BLEEDER HOSE - Call your local BRP dealership

509000517

$19.97

31

Oetiker Clamp

293650046

$2.33

32

Coolant Tank

509000368

$86.89

33

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

34

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

35

Pressure Cap

509000187

$27.66
