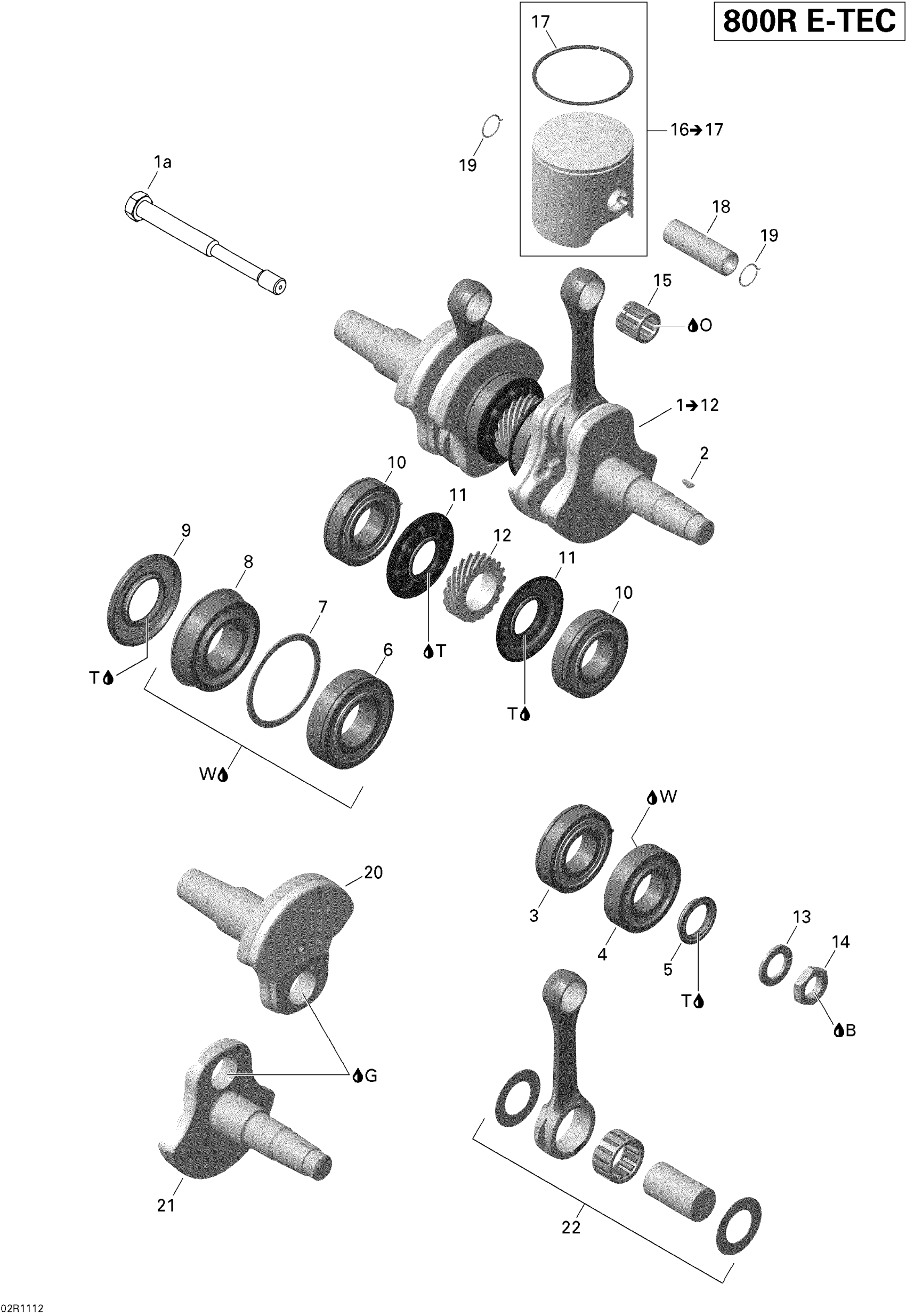

Ski-Doo MX Z TNT 800R ETEC, 2011 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 12

420893097

$1.00

1a

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

2

Woodruff Key

420246015

$3.17

3

BALL BEARING - Call your local BRP dealership

420832631

Unavailable

4

Ball Bearing 6207 | With drive pin

420832575

$52.99

5

Oil Seal

420931795

$17.63

6

Ball Bearing | With drive pin

420832602

$104.99

7

Washer

420926190

$11.63

8

Ball Bearing | With drive pin

420832702

$89.99

9

Oil Seal | Included in gasket kit

420931284

$23.49

10

BALL BEARING - Call your local BRP dealership

420832631

Unavailable

11

Oil Seal

420931455

$35.99

12

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832030

$30.49

16

Piston Ass'y 81.852mm | Includes 16 to 17 This part replaces 420890729.

420893431

$228.99

17

Semi-Trapez Ring

420815416

$75.49

18

Piston Pin

420916480

$35.99

19

Piston Circlip | Included in gasket kit

420845467

$4.25

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420892568

Unavailable

22

Rod Repair Kit, PTO Side

420892569

$313.99

B

Loctite 243, 10 ml

293800060

$21.49

G

Sealant Loctite 648

219703000

$45.99

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Petamo Grease, GHY133N, 400 g

420899271

$67.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
