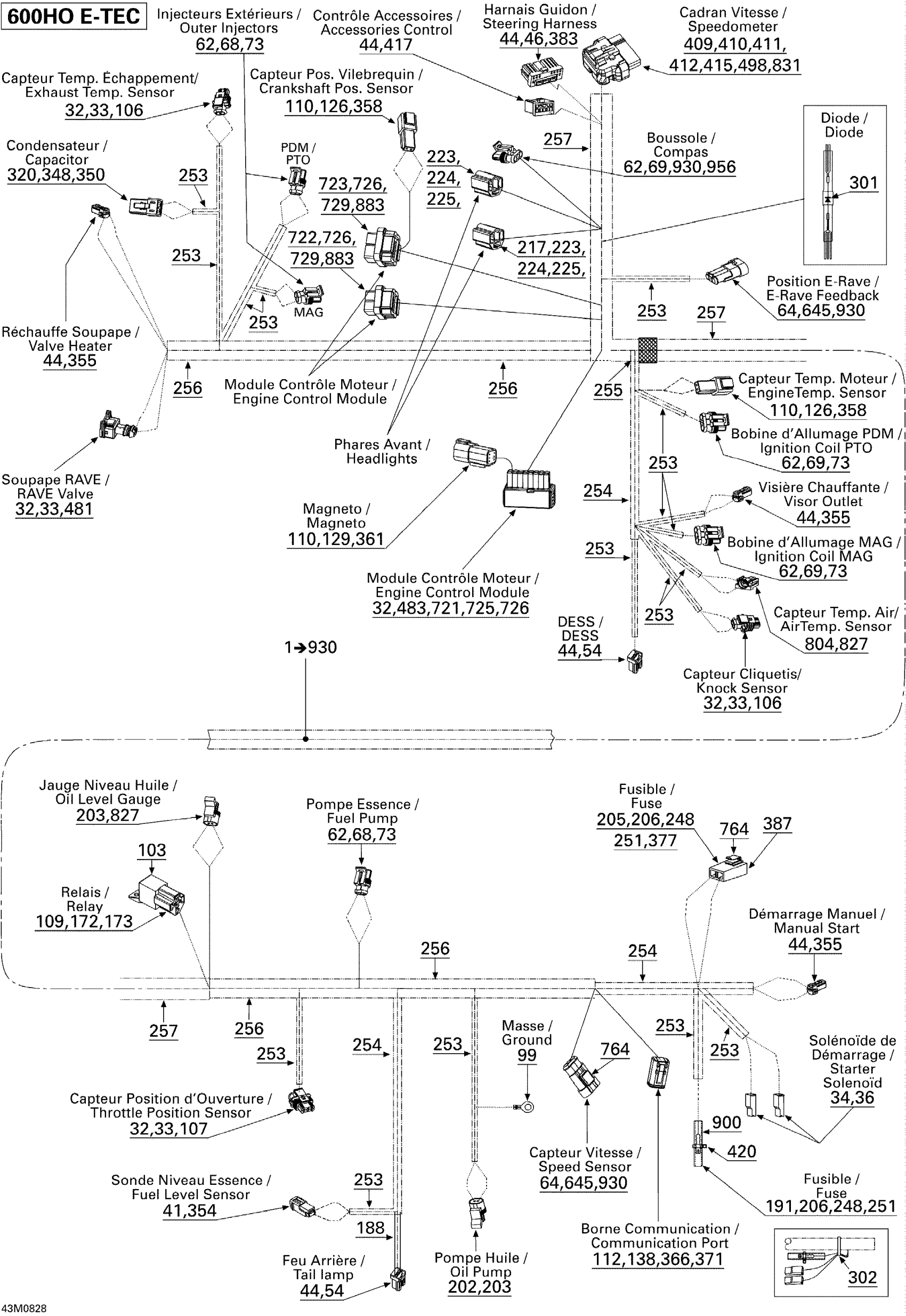

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 10- Electrical Harness Diagram

FRAME HARNESS - Call your local BRP dealership | Includes 1 to 956

515176602

Unavailable

Female Terminal

278000998

$4.39

Wire Seal

278000999

$3.19

Female Terminal

409010100

$5.61

Female Terminal Housing, 1 Circuit

409010400

$7.62

Male Terminal

515175232

$1.58

Female Terminal

515175231

$4.39

Female Terminal

515175282

$7.86

Female Housing, 3 Circuits

515175495

$16.18

Female Terminal

278001014

$3.28

Housing

710000568

$11.12

Female Housing, 2 Circuits

409209500

$15.27

Female Housing, 3 Circuits

409209600

$35.99

Wire Seal

278001013

$3.28

Open Barrel

278000992

$2.21

Relay | DS 650 X

710010053

$23.49

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 3 Circuits

278000997

$19.49

Female Housing, 5 Circuits

409209900

$9.59

Male Terminal

278000631

$4.39

Female Terminal

278000632

$2.09

Male Lock, 2 Circuits

409207500

$3.19

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

Sealing Cap

293000052

$3.19

Female Terminal

561503100

$2.41

Female Terminal

561503100

$2.41

Tubing 12 mm

409902000

Unavailable

Fuse, 30 Amperes

410917200

$3.28

Female Terminal

278001114

$3.19

Male Connector, 2 Circuits

278001113

$16.86

Female Terminal

409011600

$5.39

Female Terminal

409004200

$4.55

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

Fuse Holder

409004000

$8.09

CLIP - Call your local BRP dealership

409014200

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Was 409901700 Tubing (9 mm)

219704399

$84.99

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Was 409901600 Tubing 19mm

219704398

$95.99

Diode

409012700

$11.12

Tie Wrap 94 mm | 4X4

293750001

$1.03

Female Terminal

515175567

$7.69

Female Terminal Housing, 2 Circuits

278001673

$23.49

Female Lock, 2 Circuits

278001671

$3.58

Male Terminal Housing, 2 Circuits

515175654

$9.12

Female Housing, 2 Circuits

515175658

$16.18

Male Terminal Housing, 2 Circuits

515175665

$9.29

Male Terminal Housing, 6 Circuits

515175668

$16.49

Male Housing, 6 Circuits

515175673

$15.49

Male Wedge, 6 Circuits

515175678

$5.39

Fuse, 5 Amperes | CE

278000344

$3.28

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Plug

515175812

$2.19

Female Housing, 24 Circuits

515175801

$9.59

Retainer Block

515175802

$11.49

Wire Seal

515175803

$2.99

Female Terminal

515175806

$0.99

Female Terminal Housing, 8 Circuits

515175819

$7.62

Tie-Rap 180 mm

414115200

$0.11

Female Terminal Housing, 2 Circuits

415128500

$7.62

FEMALE TERMINAL - Call your local BRP dealership

415128499

Unavailable

Female Housing

710000399

$16.49

Male Terminal

515176164

$7.16

Female Terminal Housing, 16 Circuits

515176340

$15.80

Female Terminal Housing, 26 Circuits

515176341

$29.49

Female Terminal Housing, 34 Circuits

515176342

$21.99

Seal

415128501

$1.89

Plug

515176345

$21.99

Female Terminal

515176348

$6.99

Clip

710000992

$4.29

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515176523

Unavailable

Female Terminal

710001119

$5.39

Female Terminal

710001131

$8.89

Female Terminal

515176541

$4.55

Hose

415079200

Unavailable

Wire Seal

515176621

$7.49

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable
