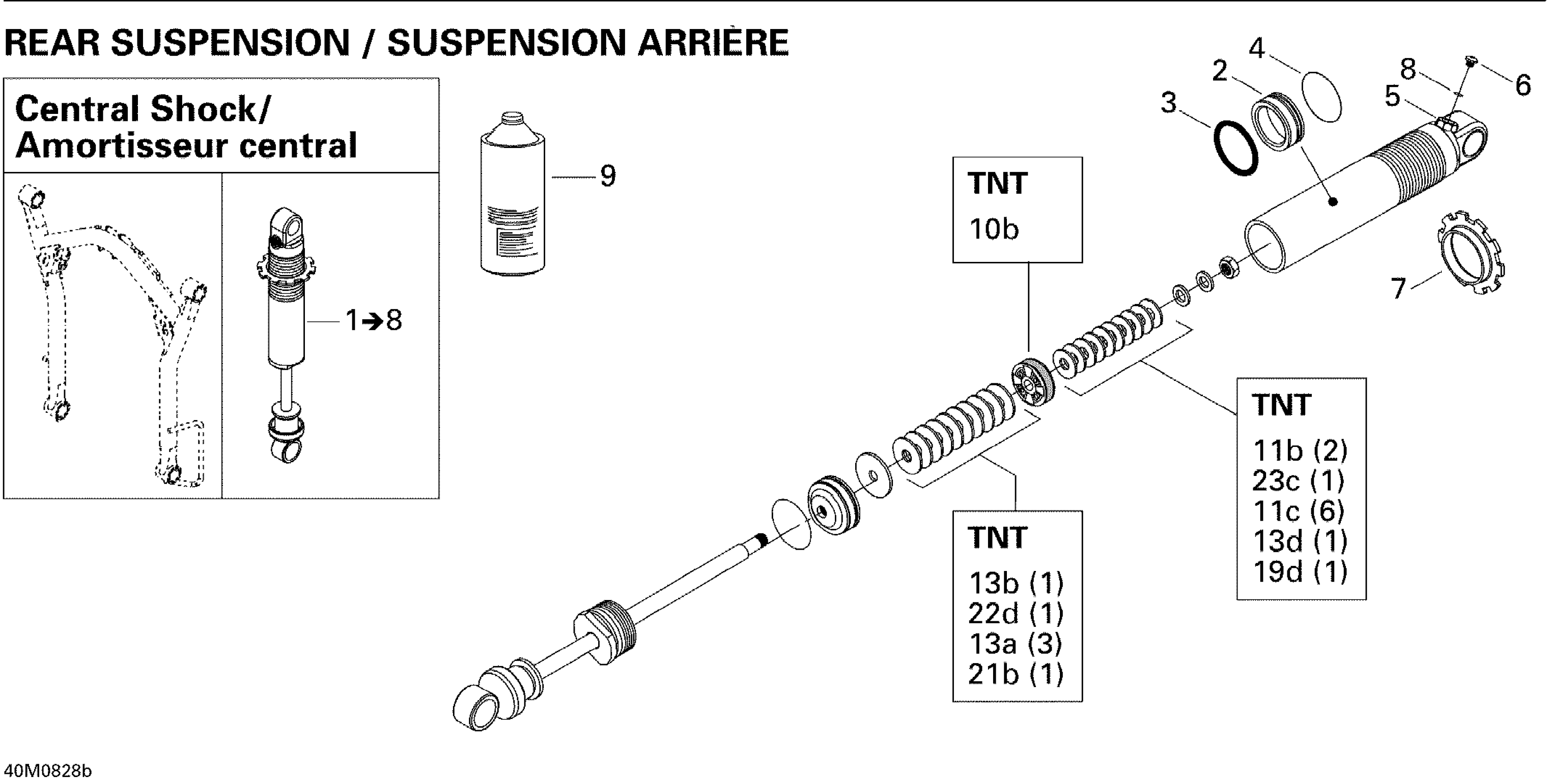

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 08- Take Apart Shock, Rear 2 Diagram

#

Description
Price

1

Central Shock | Model Europe

503193534

$434.49

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

8

O-Ring

505070400

$4.54

9

Shock Oil, 1 Liter

293600035

$73.99

10a

Piston (C36)

414888304

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

10c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

10d

Not Available As Spare Part - Friction Washer

Unavailable

10e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

10f

Not Available As Spare Part - Friction Washer

Unavailable

10g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

11a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

11b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

11c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

11d

Not Available As Spare Part - Friction Washer

Unavailable

12a

Not Available As Spare Part - Friction Washer

Unavailable

12b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

12c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

12d

Not Available As Spare Part - Friction Washer

Unavailable

13a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

13b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

13c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

13d

Not Available As Spare Part - Friction Washer

Unavailable

14a

Not Available As Spare Part - Friction Washer

Unavailable

14b

Not Available As Spare Part - Friction Washer

Unavailable

14c

Not Available As Spare Part - Friction Washer

Unavailable

14d

Not Available As Spare Part - Friction Washer

Unavailable

15a

Not Available As Spare Part - Friction Washer

Unavailable

15b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

15c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

15d

Not Available As Spare Part - Friction Washer

Unavailable

16a

Not Available As Spare Part - Friction Washer

Unavailable

16b

Not Available As Spare Part - Friction Washer

Unavailable

16c

Not Available As Spare Part - Friction Washer

Unavailable

16d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

17a

Not Available As Spare Part - Friction Washer

Unavailable

17b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

17c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

17d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

18a

Not Available As Spare Part - Friction Washer

Unavailable

18b

Not Available As Spare Part - Friction Washer

Unavailable

18c

Not Available As Spare Part - Friction Washer

Unavailable

18d

Not Available As Spare Part - Friction Washer

Unavailable

19a

Not Available As Spare Part - Friction Washer

Unavailable

19b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

19c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

19d

Not Available As Spare Part - Friction Washer

Unavailable

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Not Available As Spare Part - Friction Washer

Unavailable

20d

Not Available As Spare Part - Friction Washer

Unavailable

21a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

21b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

21c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

21d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

22a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

22b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

22c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

22d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

23a

Not Available As Spare Part - Friction Washer

Unavailable

23b

Not Available As Spare Part - Friction Washer

Unavailable

23c

Not Available As Spare Part - Friction Washer

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

24a

Not Available As Spare Part - Friction Washer

Unavailable

24b

Not Available As Spare Part - Friction Washer

Unavailable

24c

Not Available As Spare Part - Friction Washer

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

25b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

25c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

25d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
