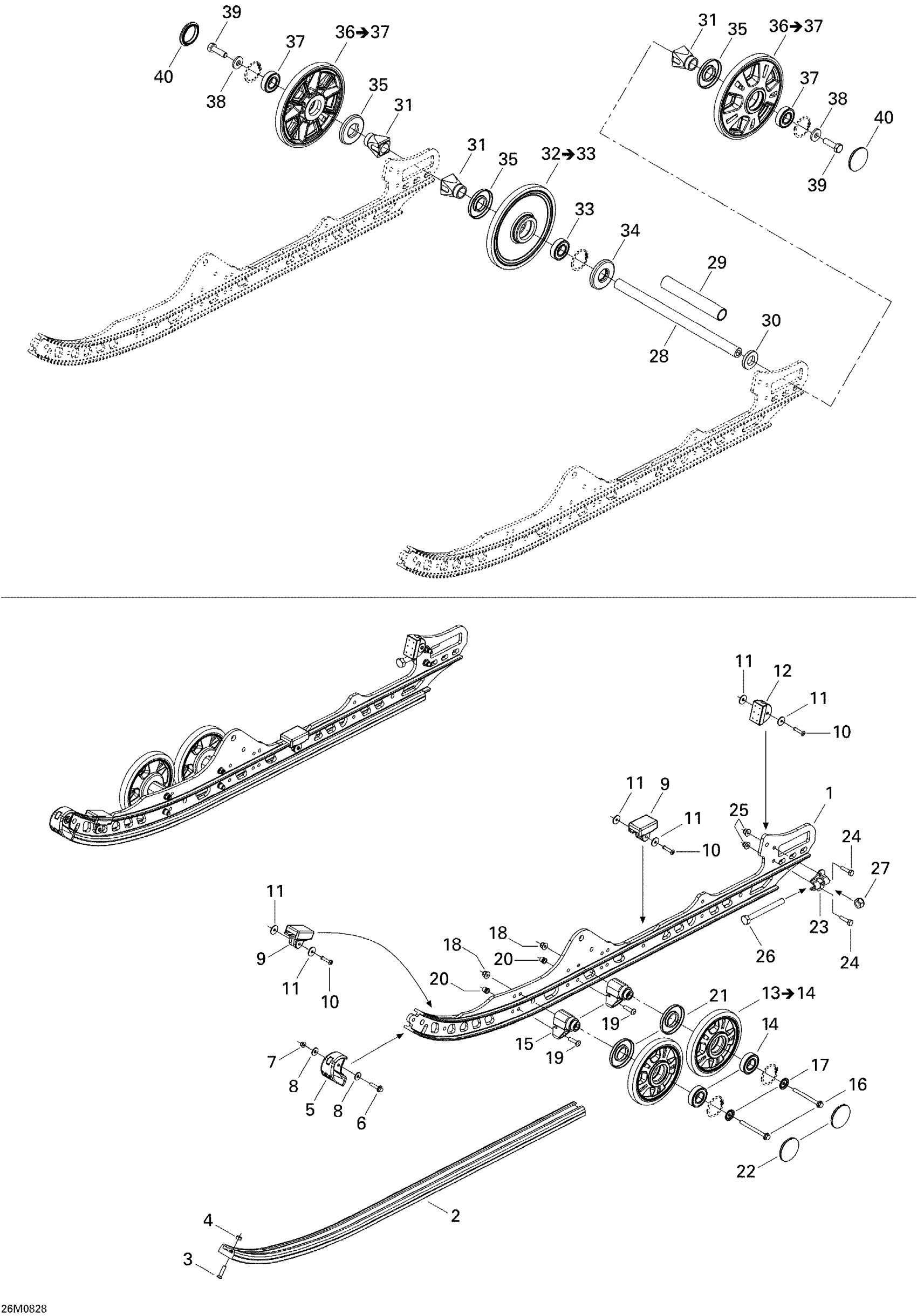

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Rear Suspension Diagram

#

Description
Price

1

Suspension Rail 120

503196633

$217.13

2

Black Slider Shoe 120"

503191301

$26.84

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503191137

$9.90

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Pop Rivet 3/16"

293150142

$2.04

11

Washer

503191273

$1.03

12

Rubber Stopper

503191291

$17.88

13

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

14

Ball Bearing | Package-STD

503190396

$8.18

15

Casted Support

503193894

$12.37

16

Hex. Flange Screw M6 X 70

207667044

$0.81

17

Wheel Cup M6

503191820

$4.52

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

19

Hex. Flange Screw M6 X 25

207662544

$0.61

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

Labyrinth Seal

503190434

$4.16

22

Wheel Cap

570063600

$3.18

23

Tensioner

503192583

$5.67

24

Hex. Screw M6 X 25

207162544

$1.01

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

27

Elastic Locking Nut M10 X 1.5

233601416

$1.63

28

Rear Axle

503190429

$58.18

29

Spacer

503196317

$14.90

30

Washer

503190432

$12.15

31

Rear Wheel Spacer

503190428

$5.88

32

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$48.48

33

Ball Bearing | Package-STD

503190396

$8.18

34

Labyrinth Seal

503190682

$5.67

35

Labyrinth Seal

503190434

$4.16

36

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

37

Ball Bearing | Package-STD

503190396

$8.18

38

Washer

503190439

$5.64

39

Hex. Screw With Nylon

250000019

$1.63

40

Wheel Cap

570063600

$3.18
