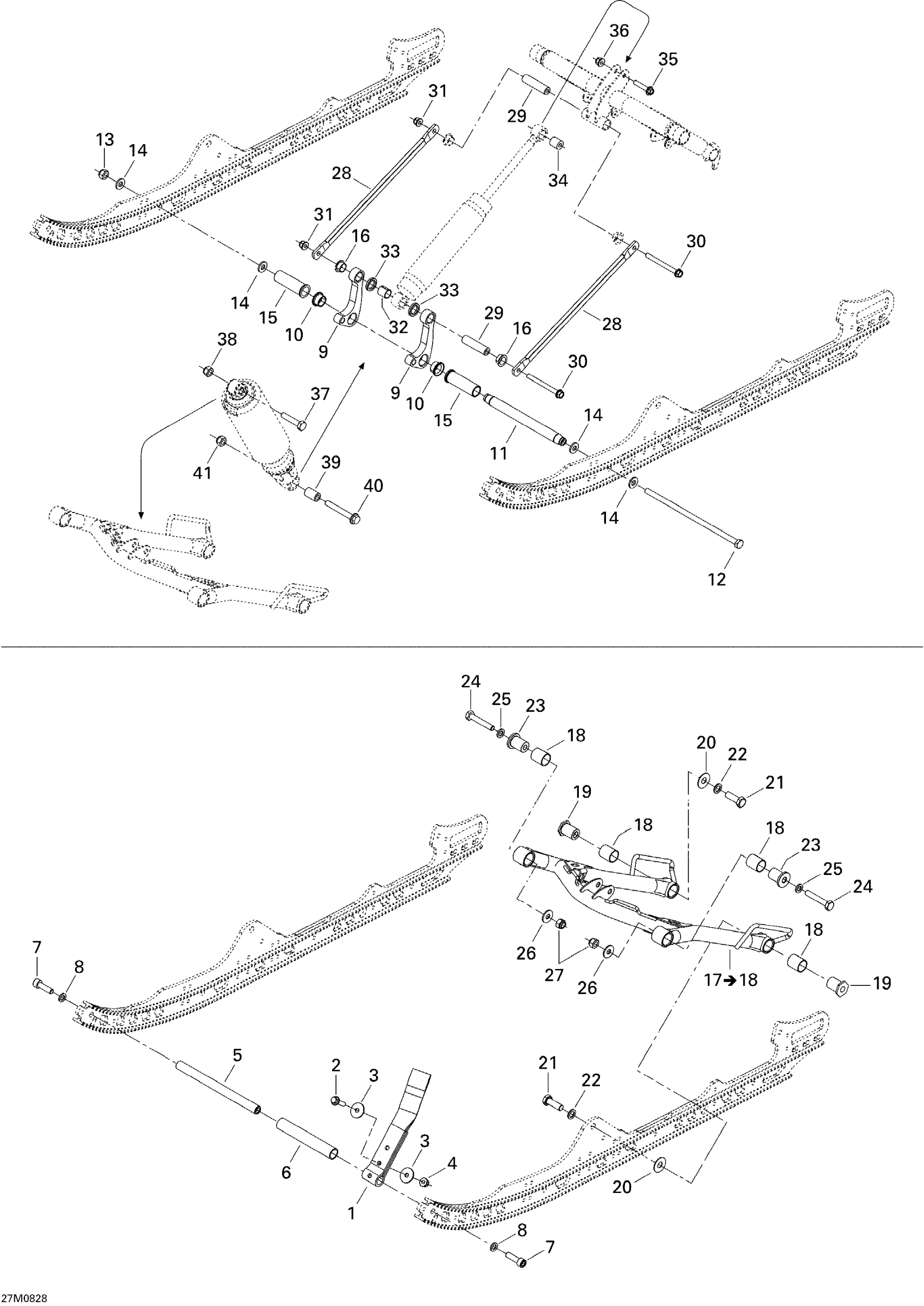

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$20.99

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Flat Washer

224081301

$0.88

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Axle Strap

503191260

$30.99

6

Spacer

503191448

$11.99

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

Washer

503189564

$0.74

9

Rocker Arm

503191161

Unavailable

10

Bushing

503191552

$5.93

11

Center Shaft

503191764

$63.49

12

LONG BOLT - Call your local BRP dealership

503191352

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.69

14

Washer

732900049

$0.58

15

Center Bushing

503191351

$8.29

16

Swivel Bushing

503191555

$7.83

17

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

18

Bushing

503191554

$6.14

19

Lower Axle

503191966

$15.89

20

Washer

503190656

$2.96

21

Hex. Cap Screw M12 X 35

250000537

$3.17

22

Washer

503189276

$3.28

23

Axle

503190698

$20.99

24

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006084

Unavailable

25

Washer

503189564

$0.74

26

Flat Washer M10 | 4X4

250200014

$1.49

27

Elastic Locking Nut M10 X 1.5

233601416

$1.69

28

Link Rod

503191802

$28.49

29

Axle Bar (Long)

503190643

$17.39

30

Hex. Flange Screw

207688544

$1.69

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Bushing

503191553

$5.93

33

Plastic Spacer

503190694

$2.11

34

Bushing

414936000

$13.99

35

Hex. Flange Screw M8 X 40

207684044

$1.48

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

Central Shock Axle

503190604

$14.15

40

Hex. Flange Screw M10 X 75

207607544

$7.29

41

Elastic Locking Nut M10 X 1.5

233601416

$1.69
