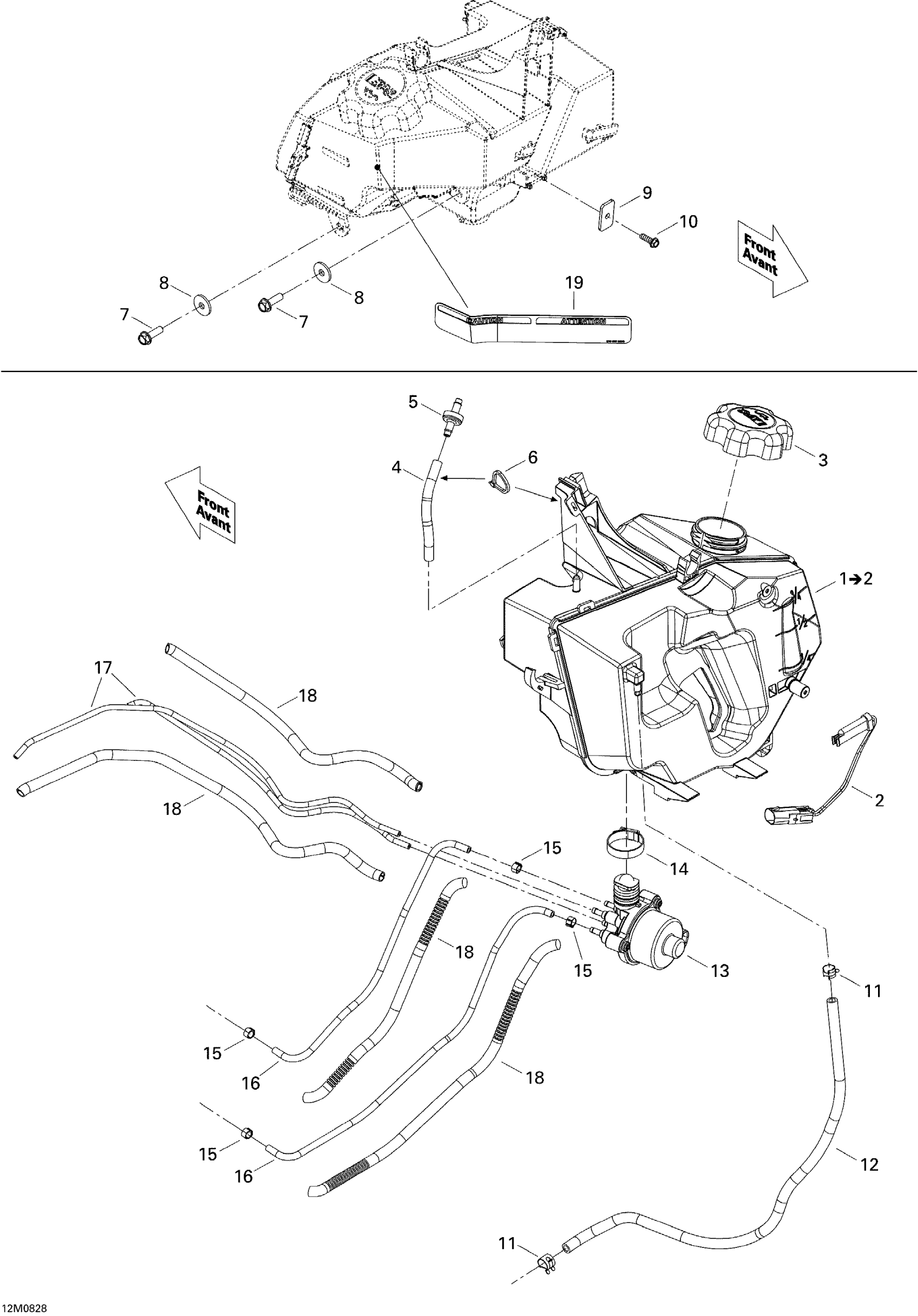

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Oil System Diagram

Oil Tank | Includes 1 to 2

519000130

Unavailable

Oil Level Sensor

515176508

$29.97

CAP - Call your local BRP dealership

519000194

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$46.12

Check Valve

275500398

$8.57

Tie Wrap 142 mm

293750002

$0.88

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.06

Flat Washer

224061201

$1.11

Bracket

519000179

$8.57

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Spring Clamp

414554800

$0.83

Polyurethane Hose 10000Mm Long

219704410

$46.12

Oil Pump

519000136

Unavailable

Hose Clamp

293650142

$3.35

Oetiker Clamp

293650100

$2.74

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.14

Warning Decal, Oil

516002325

Unavailable
