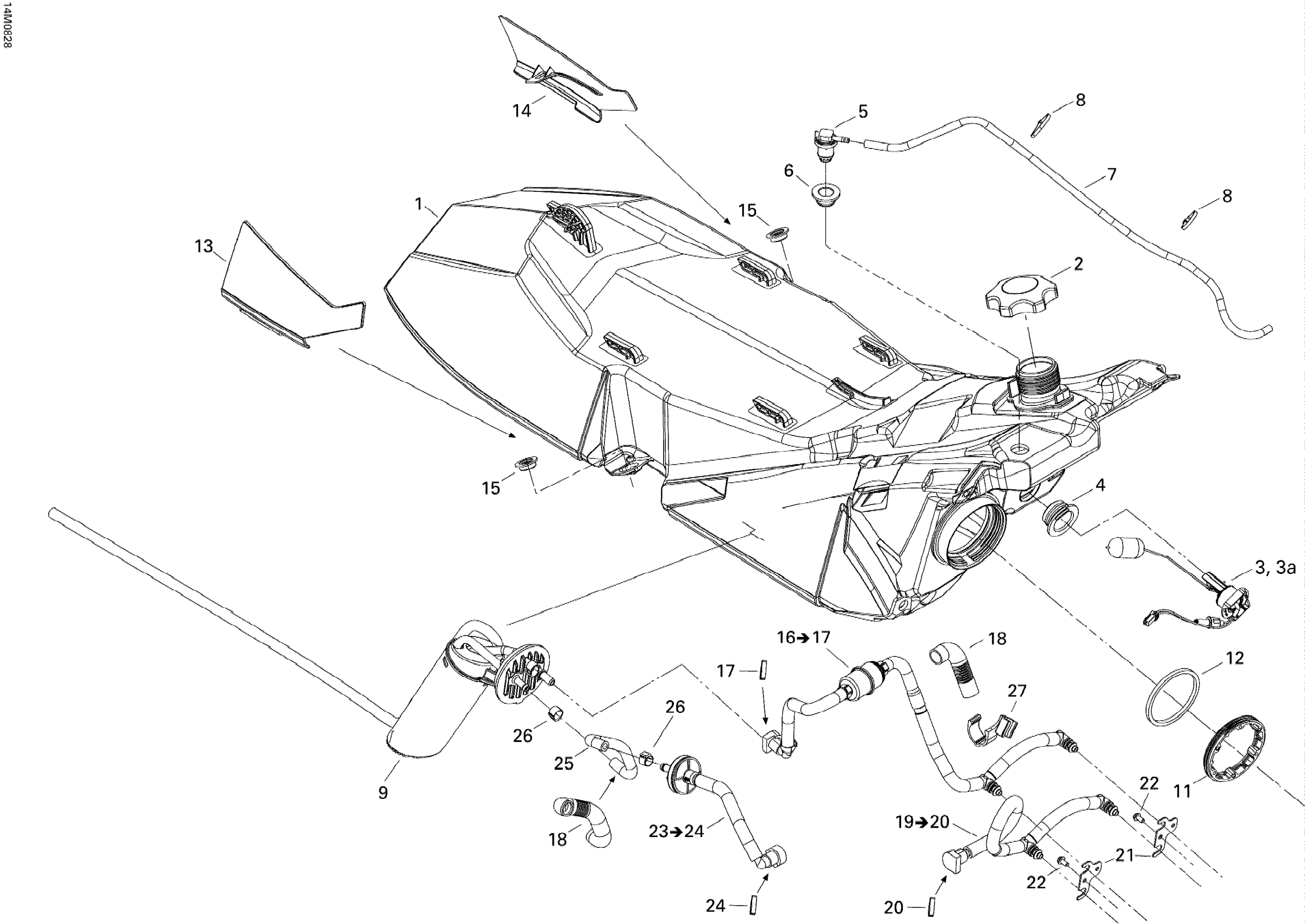

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033514

Unavailable

2

Fuel Tank Cap

513033025

$22.36

3

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

3a

Fuse, 0.5 Ampère

710001995

$7.25

4

GROMMET - Call your local BRP dealership

513033193

Unavailable

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Tie-Rap 180 mm

414115200

$0.10

9

Fuel Pump Ass'y | Includes 13 to 15

513033643

$249.97

11

Ring

513033180

$17.13

12

Gasket

513033334

$22.36

13

RH Cap

513033418

$12.24

14

LH Cap

513033419

$12.24

15

Shoulder Bushing

513033326

$12.24

16

Fuel Hose Ass'y | Includes 16 to 17

513033429

Unavailable

17

Locking Clip

513033135

$4.96

18

Tubing 16 Mm 1000Mm Long

219704408

$7.15

19

HOSE ASS'Y - Call your local BRP dealership | Includes 19 to 20

513033436

Unavailable

20

Locking Clip

513033135

$4.96

21

Bracket

513033542

$12.24

22

Hex. Flange Screw M5 X 10

207551044

$3.88

23

HOSE ASS'Y - Call your local BRP dealership | Includes 23 to 24

513033167

Unavailable

24

Locking Clip

513033135

$4.96

25

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

26

Crimp Clamp, 15.3-706R

293650047

$3.03

27

FILTER CLIP - Call your local BRP dealership

513033336

Unavailable
