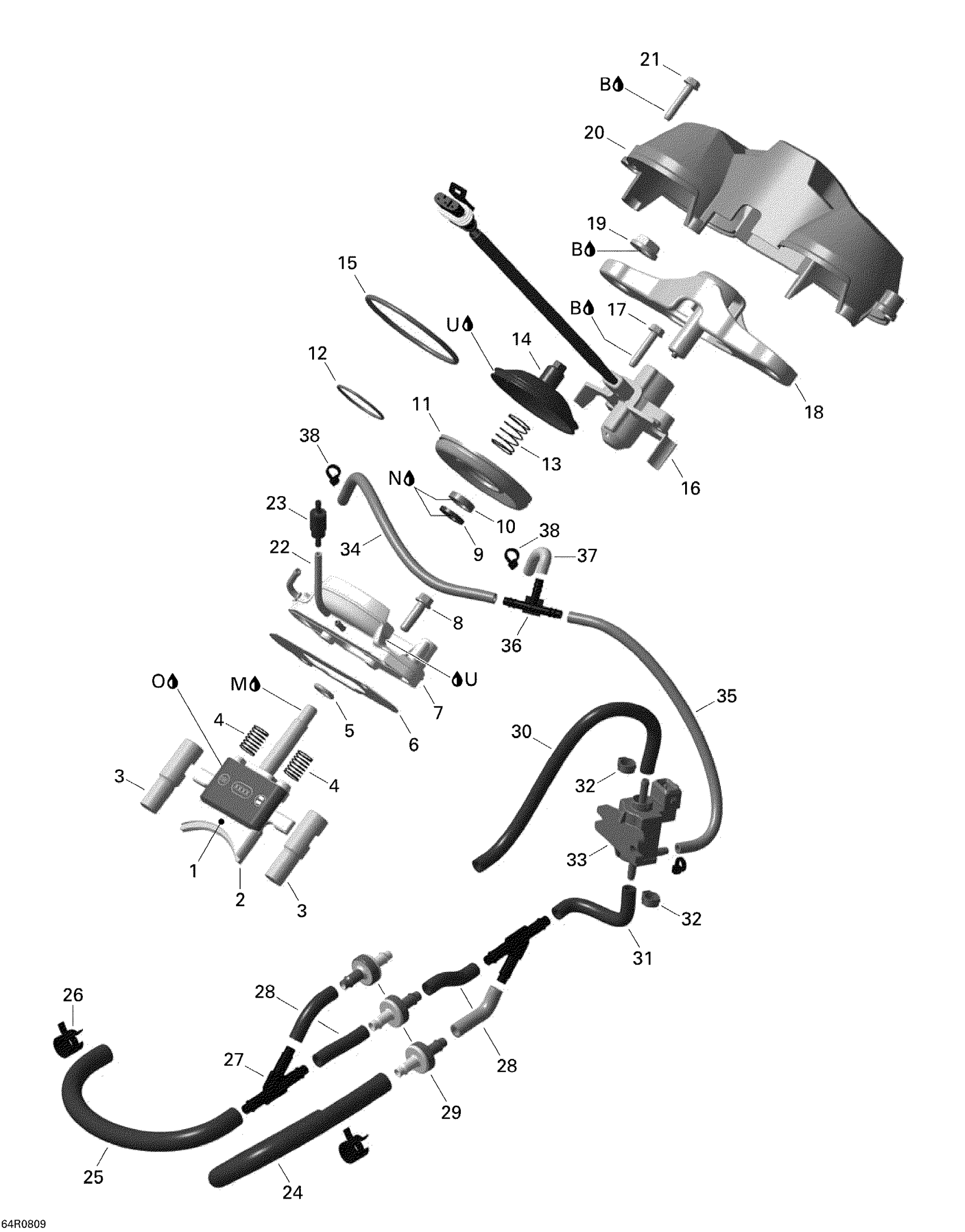

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 3D Rave Diagram

#

Description
Price

1

Exhaust Valve, Upper

420854980

$20.74

2

Exhaust Valve, Lower

420854971

Unavailable

3

Exhaust Valve

420854990

$11.18

4

Spring

420238558

$5.22

5

O-Ring

420931765

$0.81

6

Gasket

420430030

$9.31

7

VALVE HOUSING - Call your local BRP dealership

420854889

Unavailable

8

Torx Flange Screw M6 X 20

420440207

$2.54

9

Gasket Ring

420431380

$8.34

10

Oil Seal | Included in gasket kit

420950732

$8.34

11

Bellows

420260725

$41.51

12

Hose Spring This part replaces 420939285.

420939286

$10.52

13

Spring

420238557

$5.22

14

Valve Cover

420854442

$35.35

15

Hose Spring This part replaces 420838253.

420838255

$6.11

16

Position Sensor

420854089

$109.20

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

18

VALVE BAR - Call your local BRP dealership

420854085

Unavailable

19

Nut M12 X 1.5

420942190

$12.52

20

Cover

420910821

$12.52

21

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

22

Oil Hose 1500Mm Long

219704404

$13.62

23

Check Valve Ass’y

420956515

$7.88

24

MOLDED HOSE - Call your local BRP dealership

420460782

Unavailable

25

MOLDED HOSE - Call your local BRP dealership

420460782

Unavailable

26

Norma Spring Clamp

293650214

$15.35

27

Y-Fitting

293710059

$8.19

28

HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership

420460851

Unavailable

29

Check Valve

420660543

$28.43

30

Polyurethane Hose 10000Mm Long

219704410

$46.12

31

HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership

420460852

Unavailable

32

Gear Clamp

420853658

$6.26

33

Solenoid Valve

270600005

$39.62

34

High Pressure Air Hose, 180 mm

420660571

$12.55

35

HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership

420660575

Unavailable

36

T-Fitting

293710068

$6.59

37

HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership

420660572

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

B

Loctite 243, 10 ml

293800060

$20.77

M

Molykote G-N, 50 g

420297433

$22.72

N

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.57
