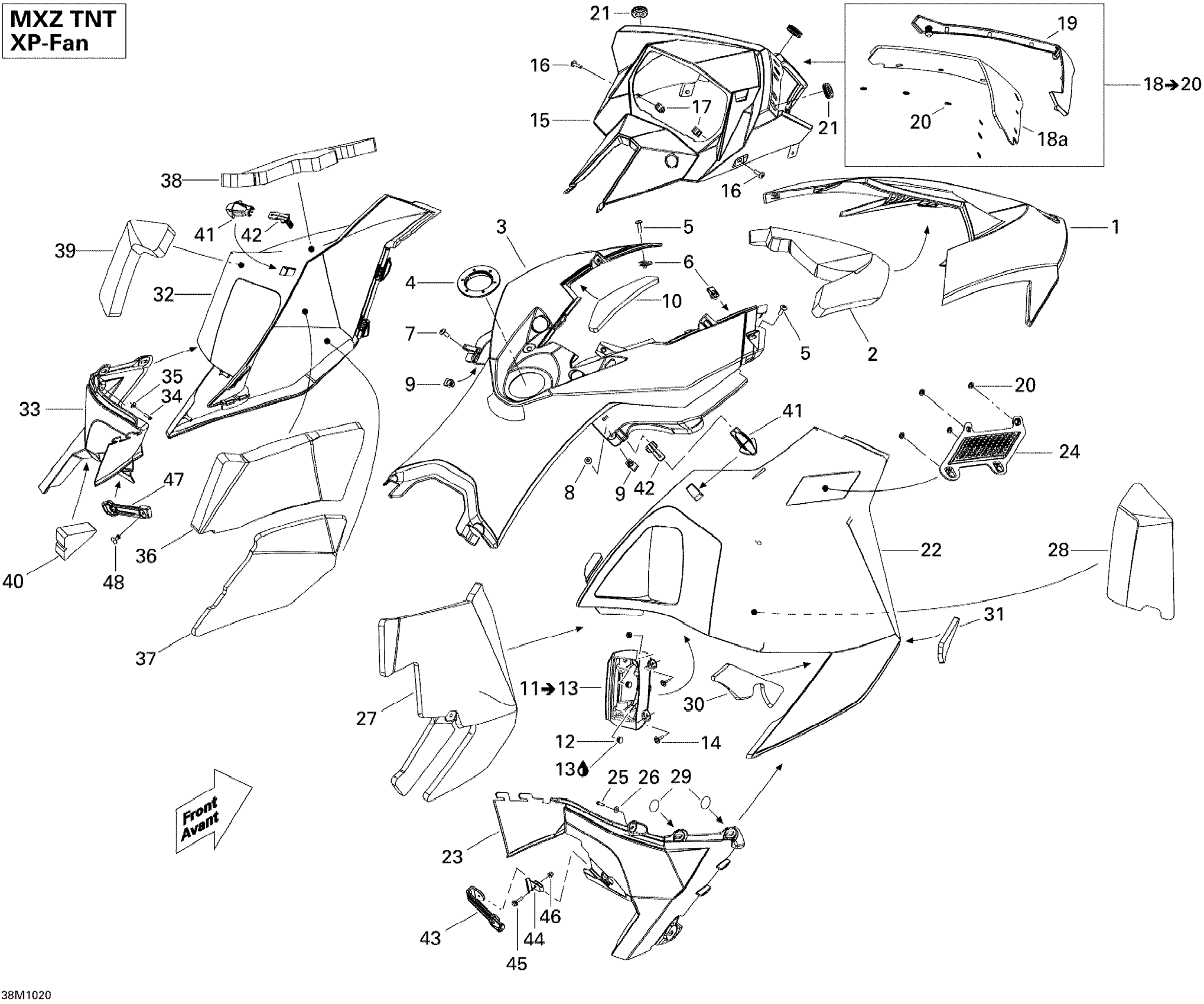

Ski-Doo MX Z TNT 550F, 2010 Hood Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$198.43

1

White Hood

517304492

$153.05

2

Hood Foam

517304913

$20.74

3

CONSOLE B-160 - Call your local BRP dealership

517304496

Unavailable

3

White Console | White Hood

517304631

$214.58

4

Console Nut

517304518

$13.78

5

Torx Screw M6 X 20

250000722

$1.34

6

Panel Nut M6 X 1.0

250100198

$1.73

7

Torx Truss Screw M6 X 16

250000721

$1.39

8

Torx Screw M6 X 20

250000722

$1.34

9

Panel Nut M6 X 1.0

250100198

$1.73

10

Foam

517304882

$16.89

11

Black, RH Console | Includes 400 to 400b

517304322

$33.82

12

Black, Cap

275500241

$2.76

13

Loctite, Black Max, 3 ml

413408300

$24.58

14

Screw M4 X 16

250000725

$2.87

15

Gauge Support

517304578

$53.82

16

Torx Screw M6 X 20

250000722

$1.34

17

Panel Nut M6 X 1.0

250100198

$1.73

18

Low Windshield Ass'y (140)

517304226

$102.28

18

Low Windshield Ass'y | Includes 18 to 20, Black/Black Model

517304227

Unavailable

18a

Not Available As Spare Part - Friction Washer

Unavailable

19

Windshield Support Kit

860200089

$23.99

20

Push Nut

732610072

$1.72

21

Grommet

517303756

$3.15

22

Deep Black, RH Panel

517304029

$206.89

22

PANEL_BODY RH B-229 - Call your local BRP dealership | Manual Starter

517304422

Unavailable

23

Deep Black RH Moulding Panel

517303671

$26.89

23

RH MOULDING PANEL, VIPER RED - Call your local BRP dealership

517304420

Unavailable

24

Grille

517303622

$29.20

25

Hex. Flange Screw K40 X 16

241141660

$1.25

26

Flat Washer 4 mm, Stainless

234042600

$0.92

27

RH Center Foam

517304883

$40.74

28

RH Panel Rear Foam

517304884

$15.35

29

Adhesive Patch

518325560

$4.34

30

Foam

517304885

$16.89

31

Foam

517304886

$15.35

32

Deep Black, LH Panel

517304030

$206.89

32

PANEL_BODY LH B-229 - Call your local BRP dealership

517304426

Unavailable

33

Deep Black, LH Moulding Panel

517303673

$26.89

33

LH MOULDING PANEL, VIPER RED - Call your local BRP dealership

517304427

Unavailable

34

Hex. Flange Screw K40 X 16

241141660

$1.25

35

Flat Washer 4 mm, Stainless

234042600

$0.92

36

LH Panel Center Foam

517304887

$26.12

37

LH Panel Lower Foam

517304888

$20.74

38

LH Panel Upper Foam

517304889

$18.43

39

LH Panel Rear Foam

517304890

$13.95

40

Foam

517304891

$18.43

41

End Piece Latch

517304075

$4.43

41

END PIECE LATCH - Call your local BRP dealership

517304435

Unavailable

42

Panel Latch

517303981

$10.00

43

RH Panel Latch

517303612

$9.49

44

Latch Support

517304221

$6.49

45

Hex.Flange Screw M5 X 20

207652044

$1.56

46

Hex. Flange Elastic Nut M5

233251414

$1.66

47

LH Panel Latch

517303808

$9.91

48

Pop Rivet 3/16”

293150108

$1.23
