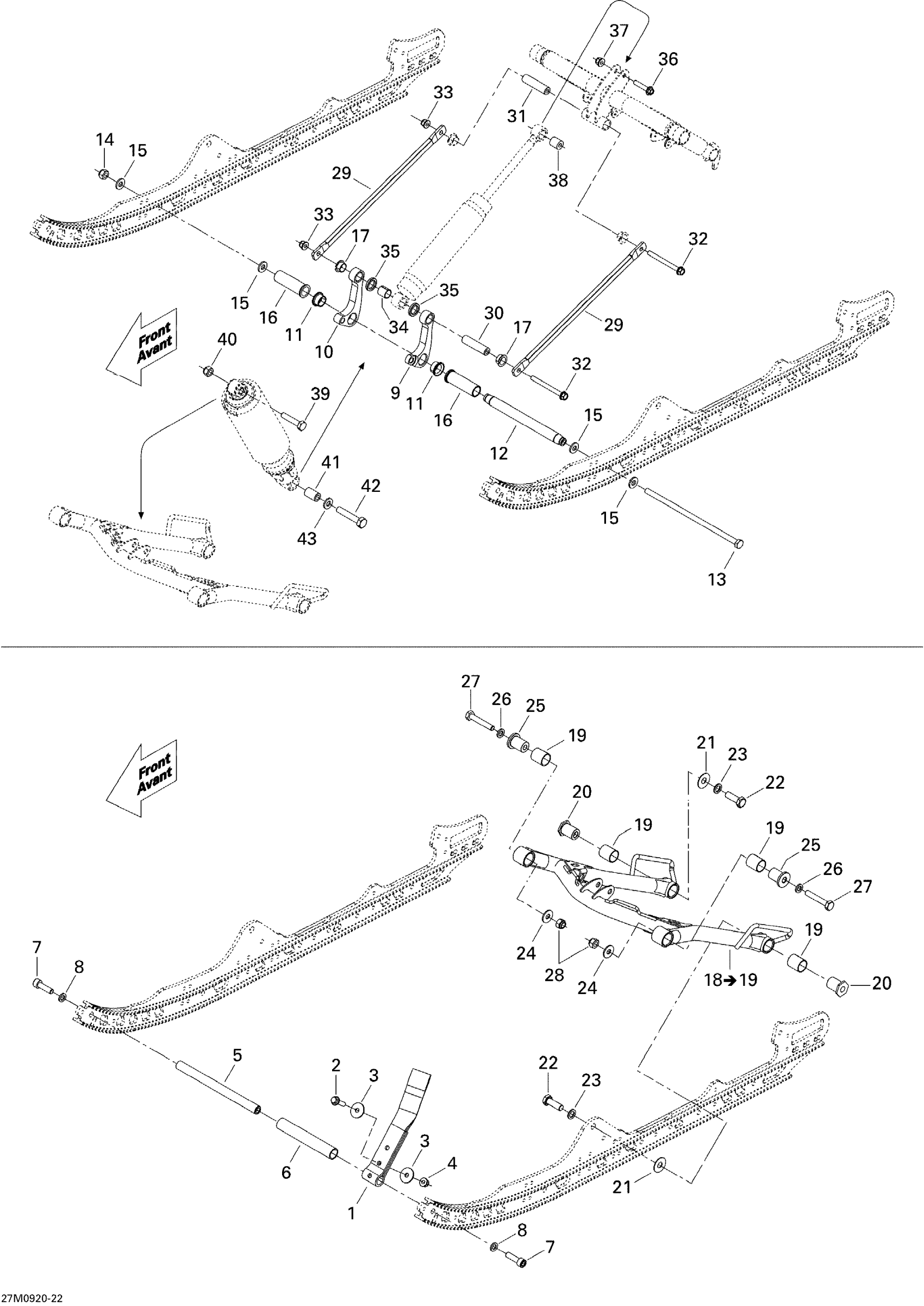

Ski-Doo MX Z TNT 550F, 2010 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.97

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

3

Flat Washer

224081301

$0.86

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Axle Strap

503191260

$29.20

6

Spacer

503191448

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

8

Washer

503189564

$0.72

9

LH Rocker Arm

503191890

$61.51

10

RH Rocker Arm

503191894

$61.51

11

Bushing

503191552

$5.71

12

Center Shaft

503191764

$64.58

13

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.74

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

Washer

732900049

$0.57

16

Center Bushing

503191351

Unavailable

17

Swivel Bushing

503191555

$5.71

18

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$447.66

19

Bushing

503191554

$5.88

20

Lower Axle

503191966

$15.35

21

Washer

503190656

$2.91

22

Hex. Cap Screw M12 X 35

250000537

$2.63

23

Washer

503189276

$3.20

24

Washer

503191910

$2.25

24

Washer

503191926

$1.57

25

Axle

503190698

$17.66

26

Washer

503191910

$2.25

26

Washer

503191926

$1.57

27

Hex. Cap Screw M10 X 60

207006056

$6.18

27

Hex. Cap Screw M10 X 60

207006056

$6.18

28

Elastic Locking Nut M10 X 1.5

233601416

$1.68

29

Link Rod

503191802

$27.66

30

Axle Bar (Long)

503190643

$15.35

31

Axle Bar (Long)

503190643

$15.35

32

Hex. Flange Screw

207688544

$1.68

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Bushing

503191553

$5.71

35

Plastic Spacer

503190694

$2.05

36

Hex. Flange Screw M8 X 40

207684044

$1.25

37

Hex. Flange Elastic Nut M8

233281414

$1.14

38

Bushing

414936000

$11.55

39

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

40

Elastic Locking Nut M10 X 1.5

233601416

$1.68

41

Central Shock Axle

503190604

$11.17

42

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

43

Washer

503189564

$0.72
