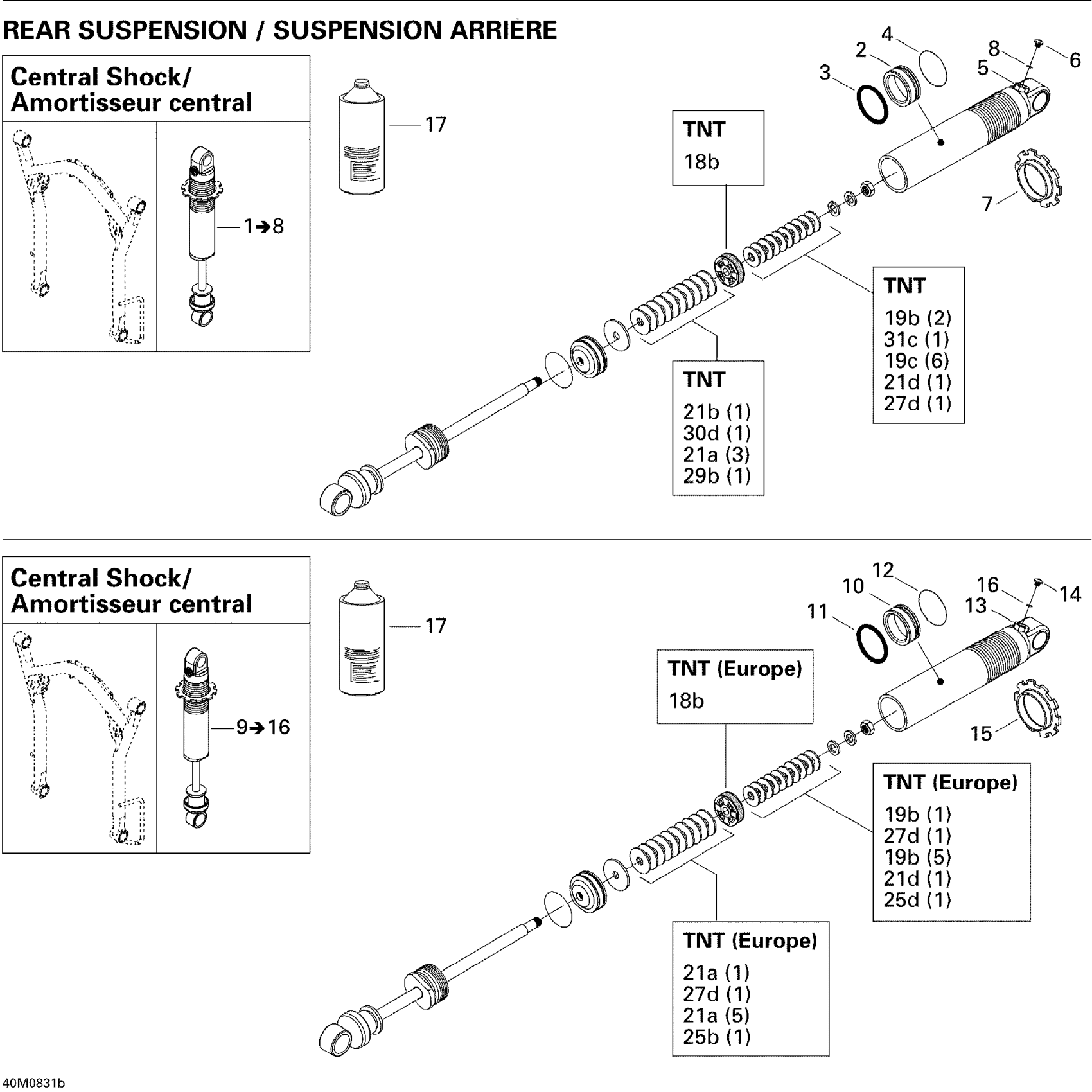

Ski-Doo MX Z TNT 500SS, 2008 08- Take Apart Shock, Rear 2 Diagram

#

Description
Price

1

Central Shock | Model Europe

503193534

$434.49

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

8

O-Ring

505070400

$4.54

9

CENTER SHOCK - Call your local BRP dealership | Includes 9 to 16, Europe

503191812

Unavailable

10

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

11

O-Ring

414888312

$17.29

12

Piston Ring

503189308

$79.49

13

Air Valve

505070398

$20.99

14

Screw | Not Shown

505070399

$4.12

15

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

16

O-Ring

505070400

$4.54

17

Shock Oil, 1 Liter

293600035

$73.99

18a

Piston (C36)

414888304

Unavailable

18b

Not Available As Spare Part - Friction Washer

Unavailable

18c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

18d

Not Available As Spare Part - Friction Washer

Unavailable

18e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

18f

Not Available As Spare Part - Friction Washer

Unavailable

18g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

19a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

19b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

19c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

19d

Not Available As Spare Part - Friction Washer

Unavailable

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

20c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

20d

Not Available As Spare Part - Friction Washer

Unavailable

21a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

21b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

21c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

21d

Not Available As Spare Part - Friction Washer

Unavailable

22a

Not Available As Spare Part - Friction Washer

Unavailable

22b

Not Available As Spare Part - Friction Washer

Unavailable

22c

Not Available As Spare Part - Friction Washer

Unavailable

22d

Not Available As Spare Part - Friction Washer

Unavailable

23a

Not Available As Spare Part - Friction Washer

Unavailable

23b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

23c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

24a

Not Available As Spare Part - Friction Washer

Unavailable

24b

Not Available As Spare Part - Friction Washer

Unavailable

24c

Not Available As Spare Part - Friction Washer

Unavailable

24d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

25a

Not Available As Spare Part - Friction Washer

Unavailable

25b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

25c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

25d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

26a

Not Available As Spare Part - Friction Washer

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Not Available As Spare Part - Friction Washer

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

27a

Not Available As Spare Part - Friction Washer

Unavailable

27b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

27c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

27d

Not Available As Spare Part - Friction Washer

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Not Available As Spare Part - Friction Washer

Unavailable

28c

Not Available As Spare Part - Friction Washer

Unavailable

28d

Not Available As Spare Part - Friction Washer

Unavailable

29a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

29b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

29c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

29d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

30a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

30b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

30c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

30d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

31a

Not Available As Spare Part - Friction Washer

Unavailable

31b

Not Available As Spare Part - Friction Washer

Unavailable

31c

Not Available As Spare Part - Friction Washer

Unavailable

31d

Not Available As Spare Part - Friction Washer

Unavailable

32a

Not Available As Spare Part - Friction Washer

Unavailable

32b

Not Available As Spare Part - Friction Washer

Unavailable

32c

Not Available As Spare Part - Friction Washer

Unavailable

32d

Not Available As Spare Part - Friction Washer

Unavailable

33a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

33b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

33c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

33d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
