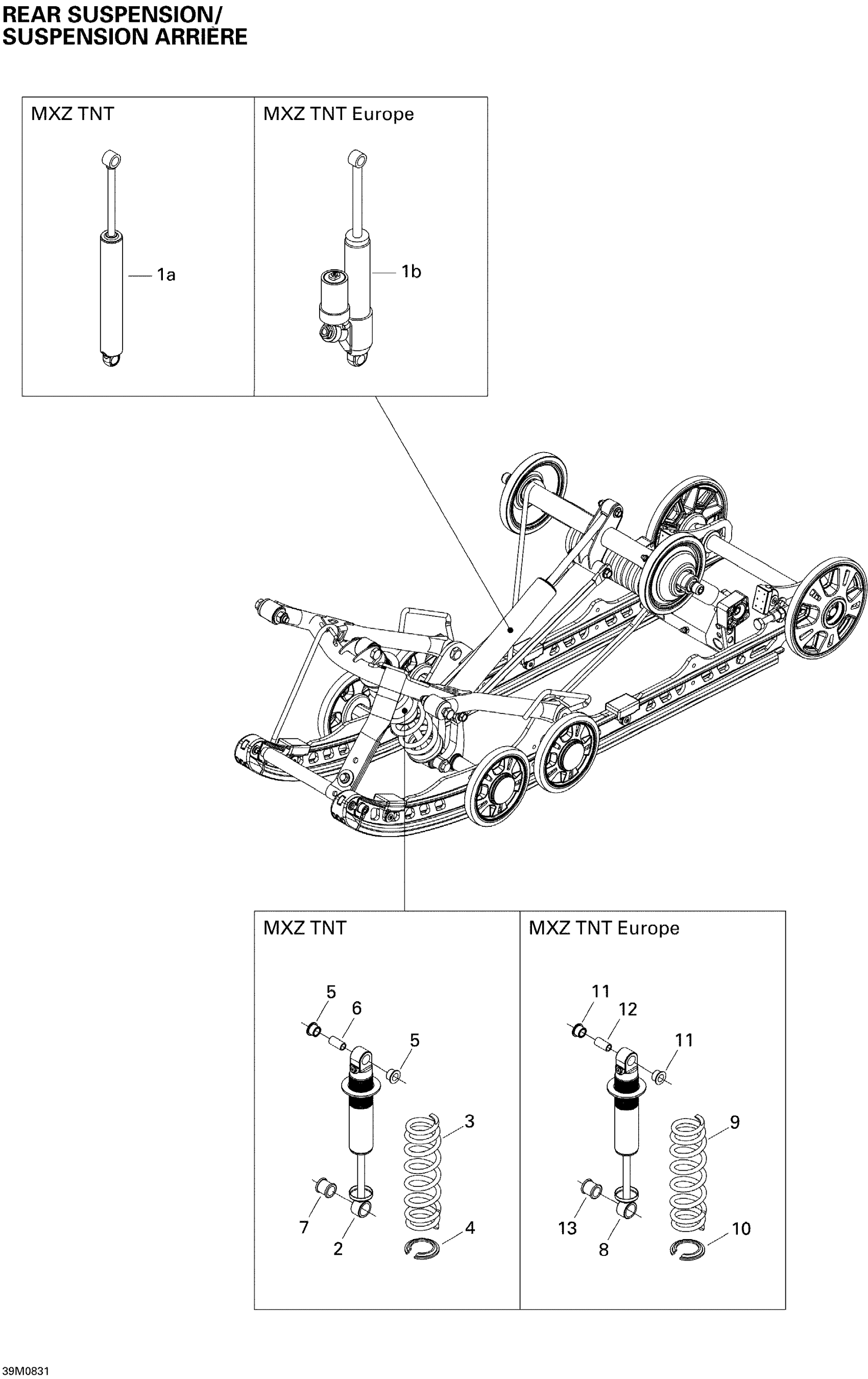

Ski-Doo MX Z TNT 500SS, 2008 Rear Suspension Shocks Diagram

#

Description

Price

1a

REAR SHOCK - Call your local BRP dealership

503191801

Unavailable

1b

Rear Shock | Europe

503191814

Unavailable

2

Central Shock | Model Europe

503193534

$416.12

3

Black, Spring

503191329

$66.89

4

Spring Stopper

503194270

$16.89

5

Urethane Bushing

503189117

$6.88

6

Bushing | Includes 240d to 240d1

503189282

$4.18

7

Bushing

503189271

$10.46

8

CENTER SHOCK - Call your local BRP dealership | Includes 9 to 16, Europe

503191812

Unavailable

9

Black, Spring

503191879

$59.97

10

Spring Stopper

503194270

$16.89

11

Urethane Bushing

503189117

$6.88

12

Bushing | Includes 240d to 240d1

503189282

$4.18

13

Bushing

503189271

$10.46
