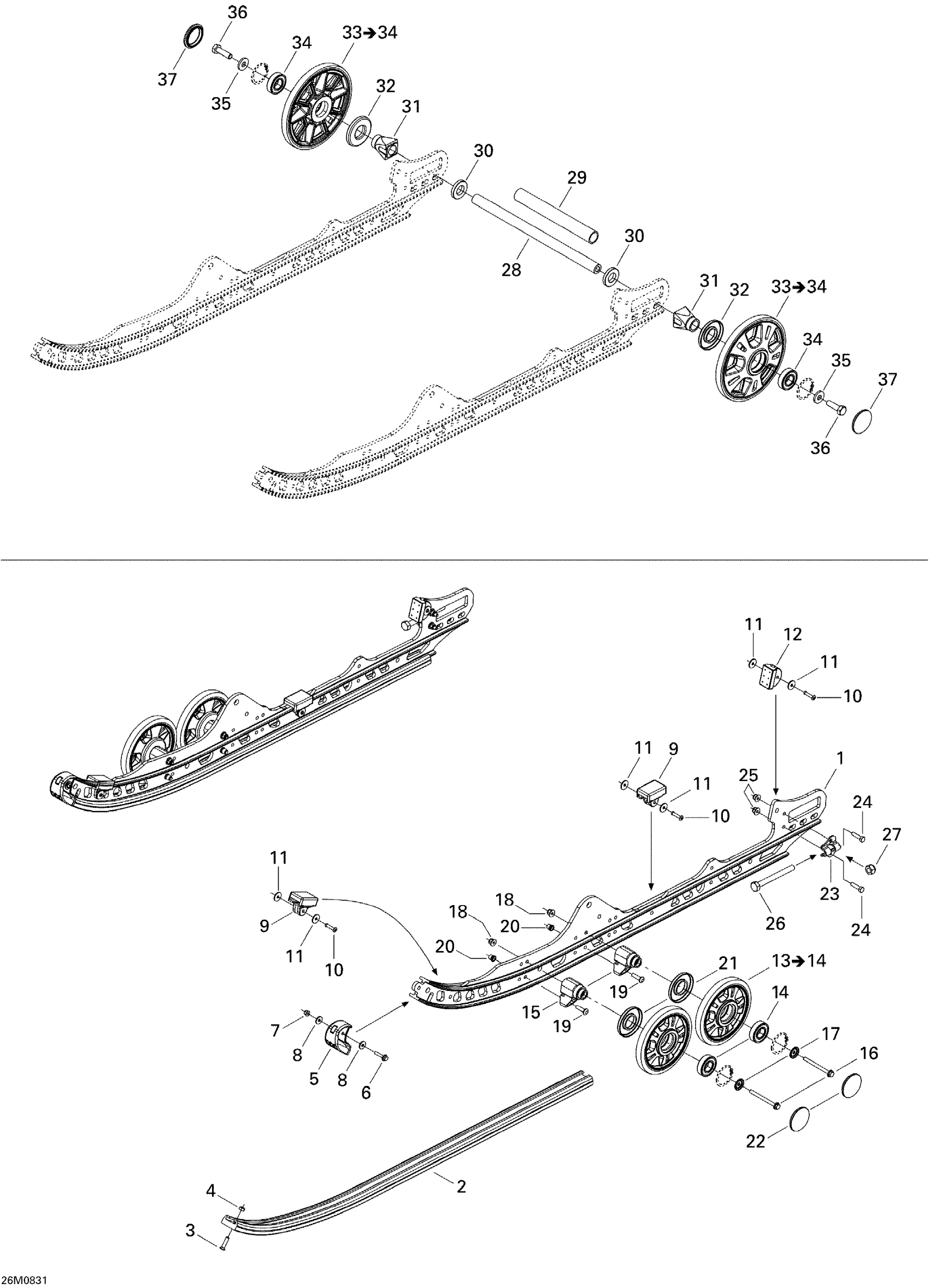

Ski-Doo MX Z TNT 500SS, 2008 Rear Suspension Diagram

#

Description
Price

1

Suspension Rail 120

503196633

$244.99

2

Black Slider Shoe 120"

503191301

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

13

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

14

Ball Bearing | Package-STD

503190396

$14.30

15

Casted Support

503193894

$16.49

16

Hex. Flange Screw M6 X 70

207667044

$0.85

17

Wheel Cup M6

503191820

$4.99

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M6 X 25

207662544

$0.64

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Labyrinth Seal

503190434

$6.09

22

Wheel Cap

570063600

$3.49

23

Tensioner

503192583

$8.29

24

Hex. Screw M6 X 25

207162544

$1.15

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

27

Elastic Locking Nut M10 X 1.5

233601416

$1.69

28

Rear Axle

503190429

$59.99

29

Spacer

503191108

$19.99

30

Washer

503190432

$14.22

31

Rear Wheel Spacer

503190428

$8.14

32

Labyrinth Seal

503190434

$6.09

33

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

34

Ball Bearing | Package-STD

503190396

$14.30

35

Washer

503190439

$5.93

36

Hex. Screw With Nylon

250000019

$1.69

37

Wheel Cap

570063600

$3.49
