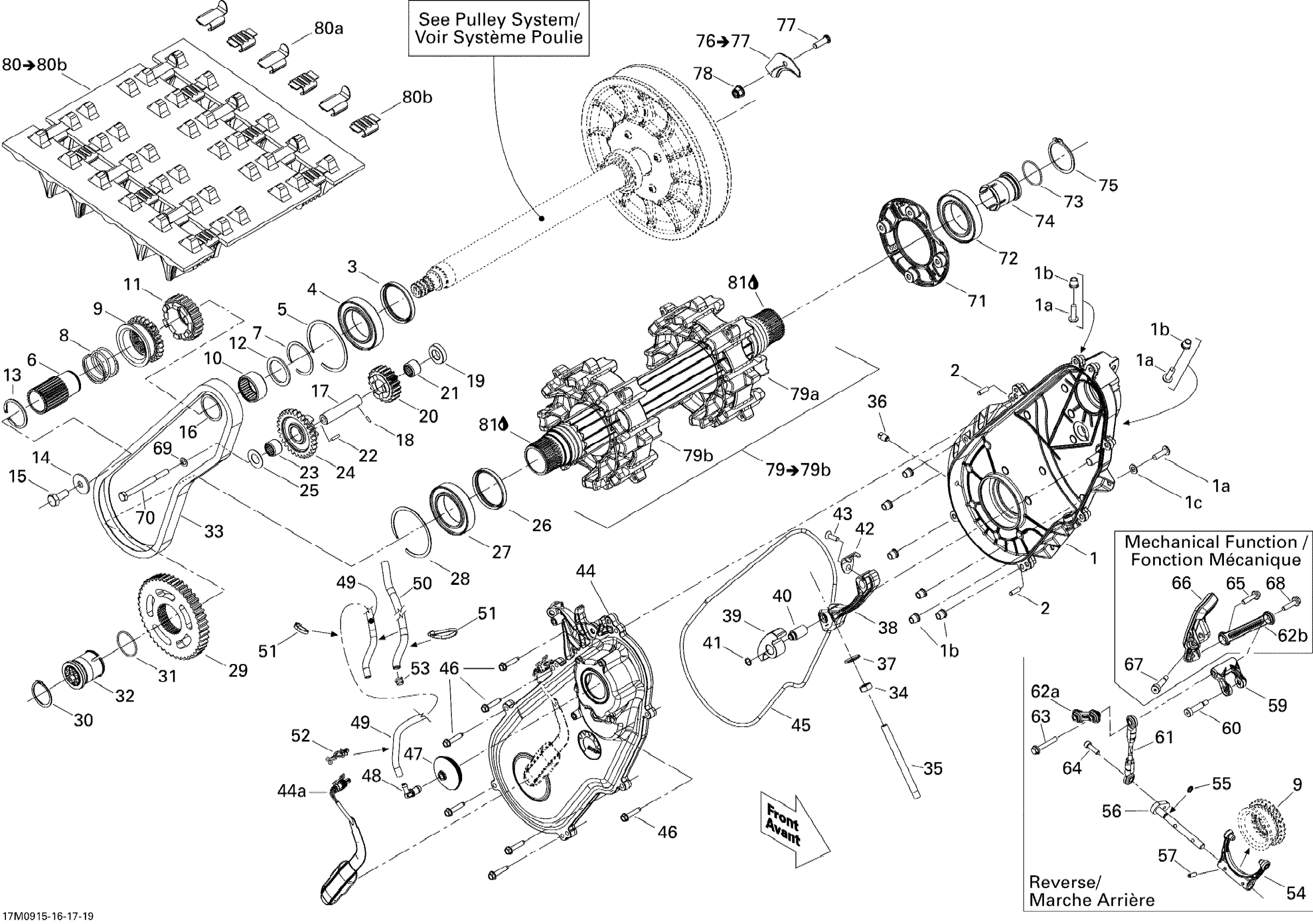

Ski-Doo MX Z TNT 1200 4-TEC, 2009 05- Drive System Diagram

Chaincase

504153184

$349.99

Hex. Flange Screw M6 X 20

207662034

$2.11

Flange Elastic Nut M6

233261434

$4.44

Flat Washer 6 mm

234061410

$1.36

Dowel Pin

250400048

$2.11

Oil Seal

293200158

$14.22

Ball Bearing

293350115

$12.11

Circlip

504152576

$9.99

Coupling Shaft

504152687

Unavailable

Circlip

293370054

$8.11

Spring Release

504153179

$11.49

Sliding Gear, 27 Teeth

504152853

Unavailable

Needle Bearing

293350063

$23.99

SPROCKET, 24 TEETH - Call your local BRP dealership

504152852

Unavailable

Washer

504152689

$7.65

Circlip

293370055

$8.11

Spring Washer M10

504152784

$7.65

Hex. Screw M10 X 25

207102544

$1.37

Washer

504152862

$10.33

Reverse Shaft

504083100

$46.99

Rolled Pin M3 X 10

250400010

$1.90

Ring

504078700

$20.99

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

Needle Bearing

293350064

$23.49

Alignement Rod

570048600

$15.99

Needle Bearing

293350064

$23.49

Sprocket, 29 Teeth

504152724

$179.99

Spacer

504077300

$6.95

Oil Seal

293200159

$16.25

Ball Bearing

293350059

$30.99

Circlip

504152582

$9.99

Sprocket, 43 Teeth | TR15X129X1.5IR

504152726

$149.99

Circlip

504152572

$6.95

O-Ring

293300122

$2.11

Magnetic Cap

504152619

$23.49

Drive Chain, 104 Links

504152629

$179.99

Hex. Nut M10 X 1.5

232006414

$1.37

Adjustment Screw

504152602

$12.49

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

Bonded Washer

250200100

$2.11

Chaine Tensionner

504153431

$15.99

Slider Chain

504152739

$65.99

Tensioner Axle

504152841

$16.34

Circlip

504152282

$3.17

Chain Slider

504153122

$16.99

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

Chaincase Cover Ass'y

504152785

Unavailable

Rotation Sensor

504152896

$37.99

Tight Seal

293300130

$7.51

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

Cap

504152860

$20.49

Male Connector

414580700

$4.12

Polyurethane Hose 10000Mm Long

219704410

$56.99

Protector Tube

504153074

$14.49

Tie Wrap 142 mm

293750002

$1.25

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

Spring Clamp

414554800

$0.88

Fork Ass'y

504152797

Unavailable

O-Ring

414484400

$7.51

Welded Axle Fork

504152956

$29.99

Spring Pin M5 X 16

250400045

$4.55

Lever

504153427

$29.99

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

Ball Joint

504152951

$46.49

Double Ball Joint

504152710

$50.99

Double Ball Joint

504152766

$17.99

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Hex. Flange Screw M6 X 25

207562544

$1.69

Grip

504153082

$33.99

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

Hex. Flange Screw M6 X 25

207562544

$1.69

Washer

504082900

$2.64

Hex. Screw M8 X 90

207089044

$3.48

Bearing Housing

507032437

$19.99

Ball Bearing

293350059

$30.99

O-Ring

293300122

$2.11

Magnetic Cap

504152619

$23.49

Circlip

504152572

$6.95

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

Clinch Stud, M8 X 25

250300028

$4.44

Hex. Flange Elastic Nut M8

233281414

$1.47

Drive Axle Ass'y

504154054

$529.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

504152606

$829.99

Track Ass'y, 15X120X1.0

504152760

$829.99

Track Guide | Track Width 16''

415129528

$3.29

Cleat

504152651

$9.69

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
