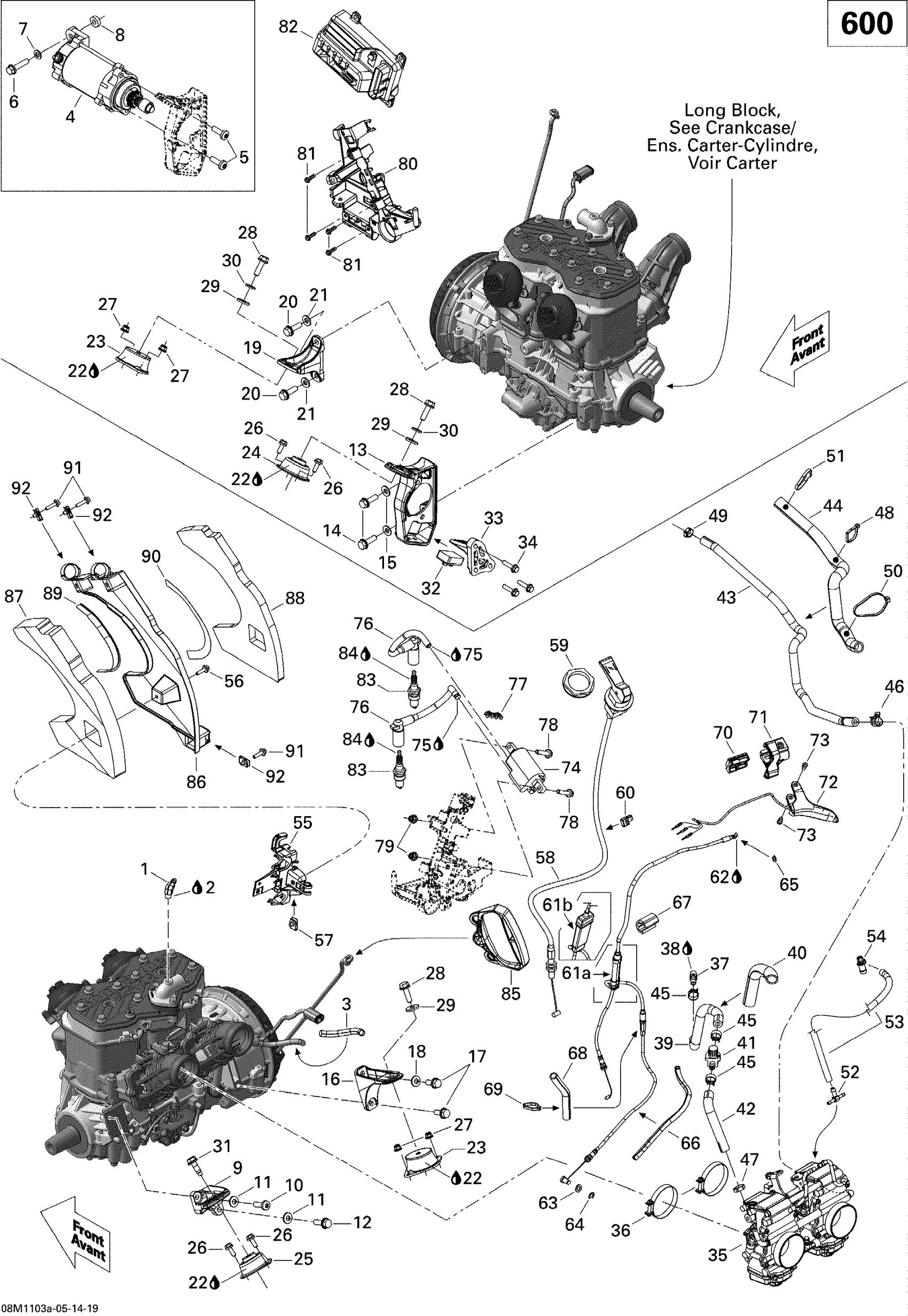

Ski-Doo MX Z SPORT 600, 2011 Engine Diagram

#

Description
Price

1

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

2

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

3

Tubing 10 MM 1000MM Long

219704407

$2.52

4

Starter

515178473

$319.49

5

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

6

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

7

Flat Washer With Teflon 8 mm

250200008

$3.58

8

Washer

515176500

$10.51

9

Rear Support, PTO

512060478

$29.07

10

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

11

Conical Spring Washer M8

234281474

$1.43

12

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

13

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

15

Conical Spring Washer M8

234281474

$1.43

16

Rear Support, MAG

512060559

$29.07

17

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

18

Conical Spring Washer M8

234281474

$1.43

19

Front Support, MAG

512060469

$30.57

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

21

Conical Spring Washer M8

234281474

$1.43

22

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

23

Rubber Mount

512060729

$67.88

24

Rubber Mount

512060387

$41.01

25

Rubber Mount

512060448

$41.01

26

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

28

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

29

Yellow, Washer

503183200

$2.91

30

Conical Spring Washer M8

234281474

$1.43

31

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

32

Stopper

512060627

$9.03

33

Stopper Support

512060576

$27.58

34

Hex. Flange Screw M6 X 25

207562544

$1.60

35

Carburetor Kit, TM40-B418

403138815

$1,203.99

36

Gemi Clamp

512059835

$10.21

37

Male Connector 1/8"-27 NPT

512060196

Unavailable

38

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

39

Hose Formed

512060355

$22.36

40

Tubing 16 Mm 1000Mm Long

219704408

$7.15

41

Valve 5/16” | Grand Touring 500.

512059324

$41.01

42

Hose Formed

512060353

$21.61

43

Hose Formed

512060347

Unavailable

44

Tubing 16 Mm 1000Mm Long

219704408

$7.15

45

Spring Clamp

414655700

$0.66

46

Norma Spring Clamp

293650214

$14.90

47

Oetiker Clamp

293650125

$3.09

48

Tie-Rap 180 mm

414115200

$0.10

49

Oetiker Clamp

293650046

$2.67

50

Tie Wrap 368 mm

293750008

$0.97

51

Tie-Rap 180 mm

414115200

$0.10

52

T-Fitting

572045500

$7.09

53

Polyurethane Hose 10000Mm Long

219704410

$52.96

54

Male Connector

414580700

$3.88

55

Solenoid Support

512060298

$12.15

56

Hex.Flange Screw M5 X 20

207652044

$1.79

57

Panel Nut M5 X 0.8

250000958

$4.00

58

Choke Cable

512060672

$44.75

59

Plastic Nut

512060671

$0.96

60

Tie-Rap 180 mm

414115200

$0.10

61a

Throttle Cable

512060886

$72.36

61b

Not Available As Spare Parts

XXX

Unavailable

62

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

63

Flat Washer 8 mm, Nylon

234081100

$1.15

64

Circlip

414753500

$0.67

65

Circlip

414274500

$0.85

66

Tubing 6 Mm 3000Mm Long

219704425

$12.75

67

Protector

512060313

$9.03

68

Tubing 10 MM 1000MM Long

219704407

$2.52

69

Tie-Rap 180 mm

414115200

$0.10

70

Upper Housing Ass'y

512060198

Unavailable

71

Lower Housing

512060860

$16.39

72

Throttle Handle Ass'y

512061252

$114.15

73

Flange Screw

732601143

$3.90

74

Ignition Coil

512059968

$48.48

75

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

76

Cable

512060291

$46.99

77

Plastic Clip, Spark Plug Wire

410914600

$5.30

78

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

80

Coils Support

512060924

$9.03

81

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

82

Calibrated Module, 600

512060680

$739.99

83

Spark Plug NGK BR10ECS

512060354

$11.13

84

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

85

Starter Grip

512060136

$14.10

86

Noise Shield

512060338

$17.13

87

Inner Noise Foam

512060341

$17.13

88

Outer Noise Foam

512060342

$17.13

89

Heat Shield

512060574

$7.13

90

Heat Shield

512060575

$7.13

91

Hex.Flange Screw M5 X 20

207652044

$1.79

92

Panel Nut M5 X 0.8

250000958

$4.00
