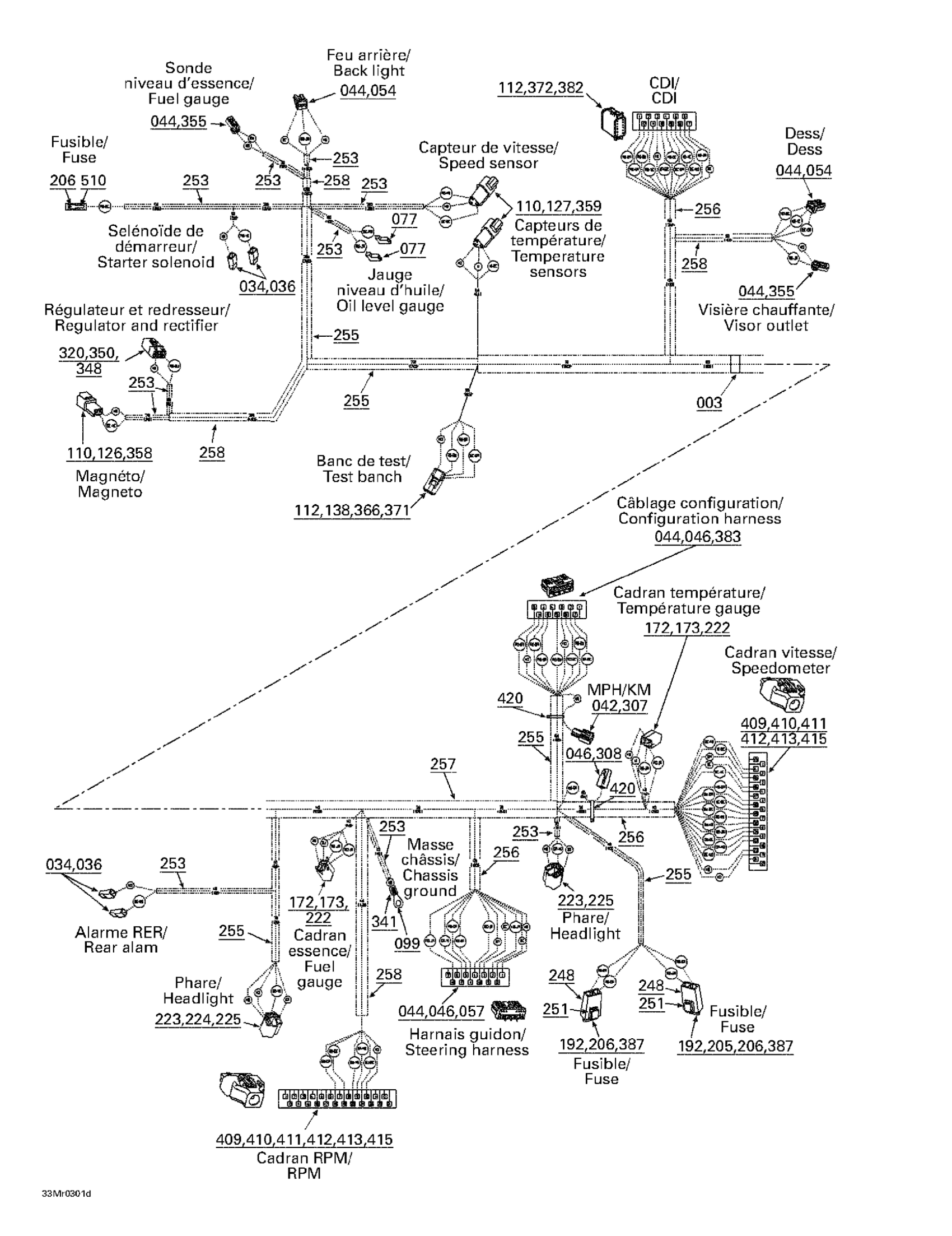

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 10- Frame Harness Diagram

#

Description
Price

3

Frame Harness | Includes 3 - 510.

515175879

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

57

Female Terminal Housing, 13 Circuits

515175350

$14.24

77

Female Terminal

409010300

$4.39

99

Open Barrel

278000992

$2.21

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

126

Male Lock, 2 Circuits

409207500

$3.19

127

Male Lock, 3 Circuits

409207600

$3.19

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

192

Fuse, 20 Amperes

409003900

$3.28

205

Female Terminal

409011600

$5.39

206

Female Terminal

409004200

$4.55

222

Female Housing

409204300

Unavailable

223

Sealing Cap

293000052

$3.19

224

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.09

251

CLIP - Call your local BRP dealership

409014200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

320

Female Terminal

515175567

$7.69

341

Not Available As Spare Part - Friction Washer

Unavailable

348

Male Lock, 2 Circuits

278001672

$3.49

350

Female Lock, 2 Circuits

278001671

$3.58

355

Female Housing, 2 Circuits

515175658

$16.18

358

Male Terminal Housing, 2 Circuits

515175665

$9.29

359

Male Housing

515175666

$15.49

366

Male Housing, 6 Circuits

515175673

$15.49

371

Male Wedge, 6 Circuits

515175678

$5.39

372

Not Available As Spare Part - Friction Washer

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

510

Hose

415079200

Unavailable
