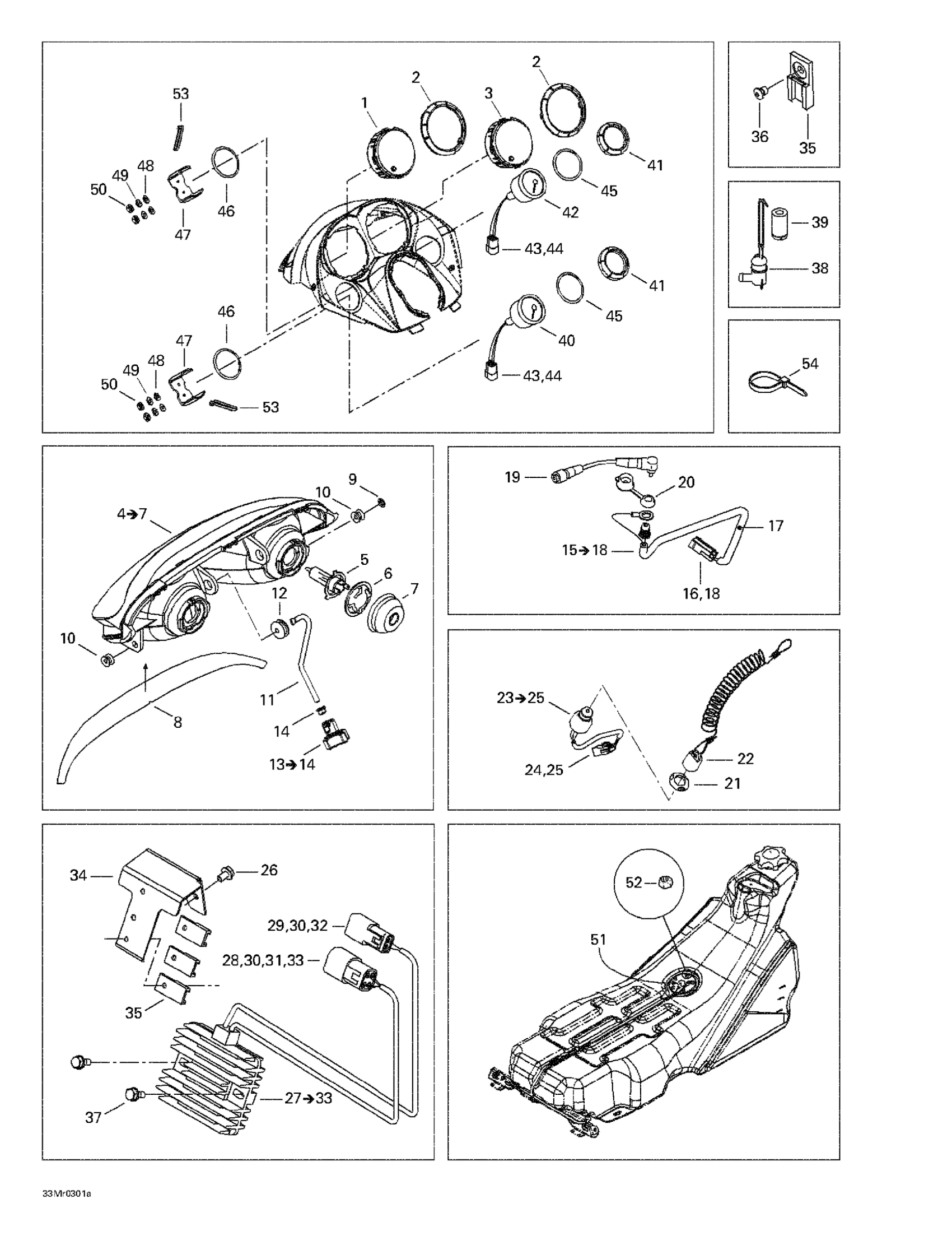

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 Electrical System 1 Diagram

#

Description
Price

1

Electronic Speedometer, Kmh

515175942

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

Tachometer

515175943

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$1.72

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Visor Harness

515177837

$31.31

16

Male Terminal

515175232

$1.45

17

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

18

Male Terminal Housing, 2 Circuits

515175654

$7.25

19

Extension

515175851

$10.55

20

Cap

572103300

$9.36

21

Safety Nut (DESS Switch)

278002963

$2.72

22

DESS

515178284

$79.07

23

DESS Switch

515177249

$102.96

24

Male Terminal

515175232

$1.45

25

Male Housing, 3 Circuits

515175494

$14.90

26

Hex. Forming Screw M6 X 10

210261050

$1.42

27

Voltage Regulator

515175968

$226.09

28

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

29

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

30

Male Terminal

515175568

$7.25

31

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

32

Male Lock, 2 Circuits

278001672

$2.93

33

Sealing Cap

293000052

$2.55

34

Housing Support

515175916

Unavailable

35

Clip

270000141

$8.33

36

Pop Rivet 3/16"

390402200

$0.26

37

Hexagonal Head Screw

210262050

$1.74

38

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

39

Float

414681900

Unavailable

40

Temperature Gauge

515175601

Unavailable

41

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

42

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

43

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

44

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

45

O-RING - Call your local BRP dealership

414807200

Unavailable

46

WASHER - Call your local BRP dealership

517258600

Unavailable

47

Case Holder | SE Models

414806600

Unavailable

48

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

49

Lock Washer | SE Models

414833700

Unavailable

50

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

51

Fuel Sensor

515175522

Unavailable

52

Elastic Stop Nut M5

232551414

$0.72

53

Tie-Rap 180 mm

414115200

$0.09

54

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85
