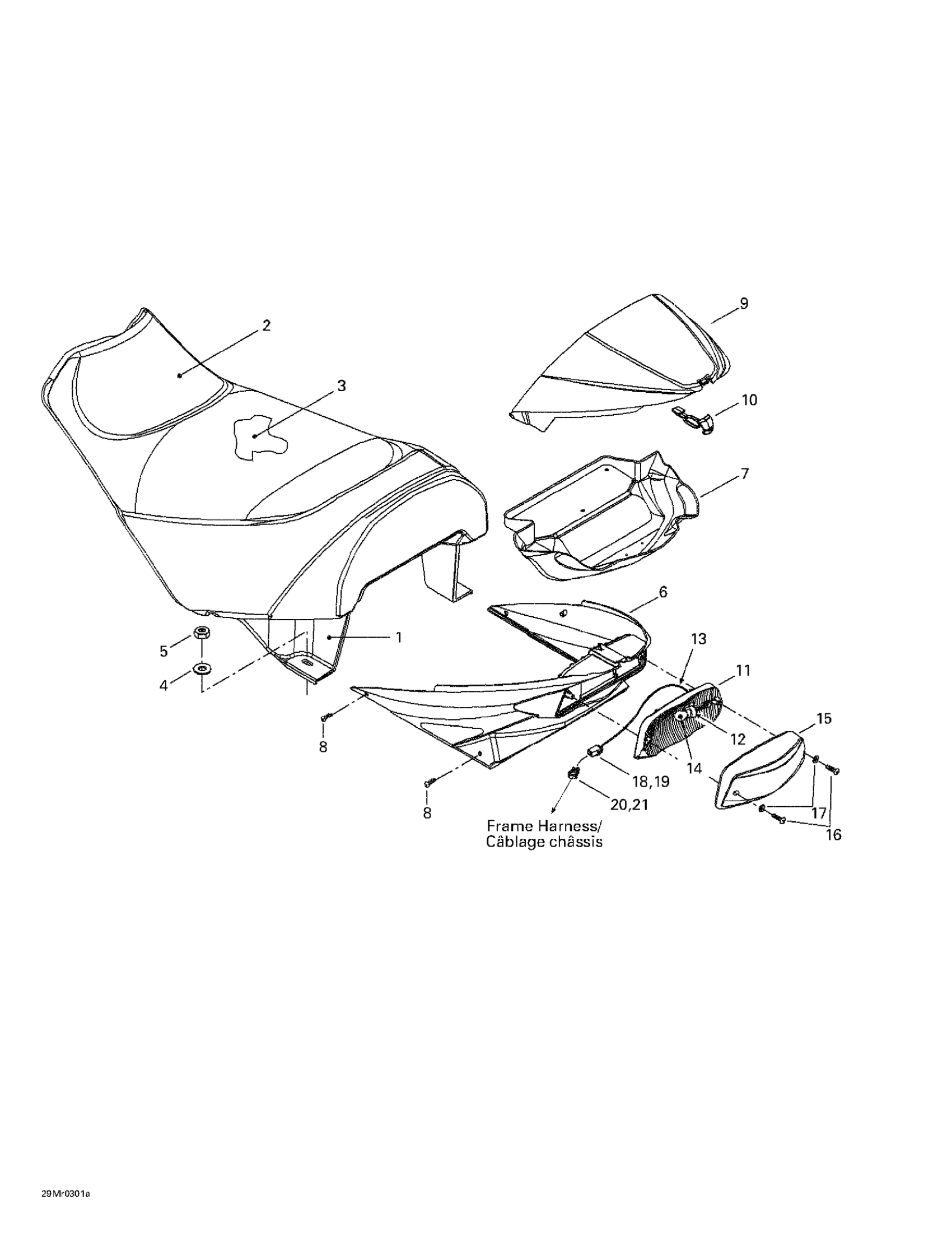

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 09- Seat Diagram

#

Description
Price

1

Seat Base

510003819

Unavailable

2

Seat Cover

510003820

Unavailable

Seat Cover | MX Z 600 H.O..

510004179

Unavailable

3

Seat Foam

510003821

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

TRUNK - Call your local BRP dealership

510004136

Unavailable

TRUNK - Call your local BRP dealership

510004138

Unavailable

TRUNK - Call your local BRP dealership

510004138

Unavailable

7

BOX LINER - Call your local BRP dealership

510004021

Unavailable

8

Phillips Screw M6 X 16

250000123

Unavailable

9

Cover

510004137

Unavailable

9

Cover

510004139

Unavailable

9

Cover

510004139

Unavailable

10

Bracket

510003917

Unavailable

11

REFLECTOR - Call your local BRP dealership

510004018

Unavailable

12

Rubber Damper

414979411

Unavailable

13

Fitting

515175940

Unavailable

14

Bulb

520000758

$9.10

15

Lens

511000315

$36.99

16

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

17

Washer - Call your local BRP dealership

414516400

Unavailable

18

Male Housing, 3 Circuits

515175494

$16.18

19

Male Terminal

515175232

$1.58

20

Female Terminal

515175231

$4.39

21

Female Housing, 3 Circuits

515175495

$16.18
