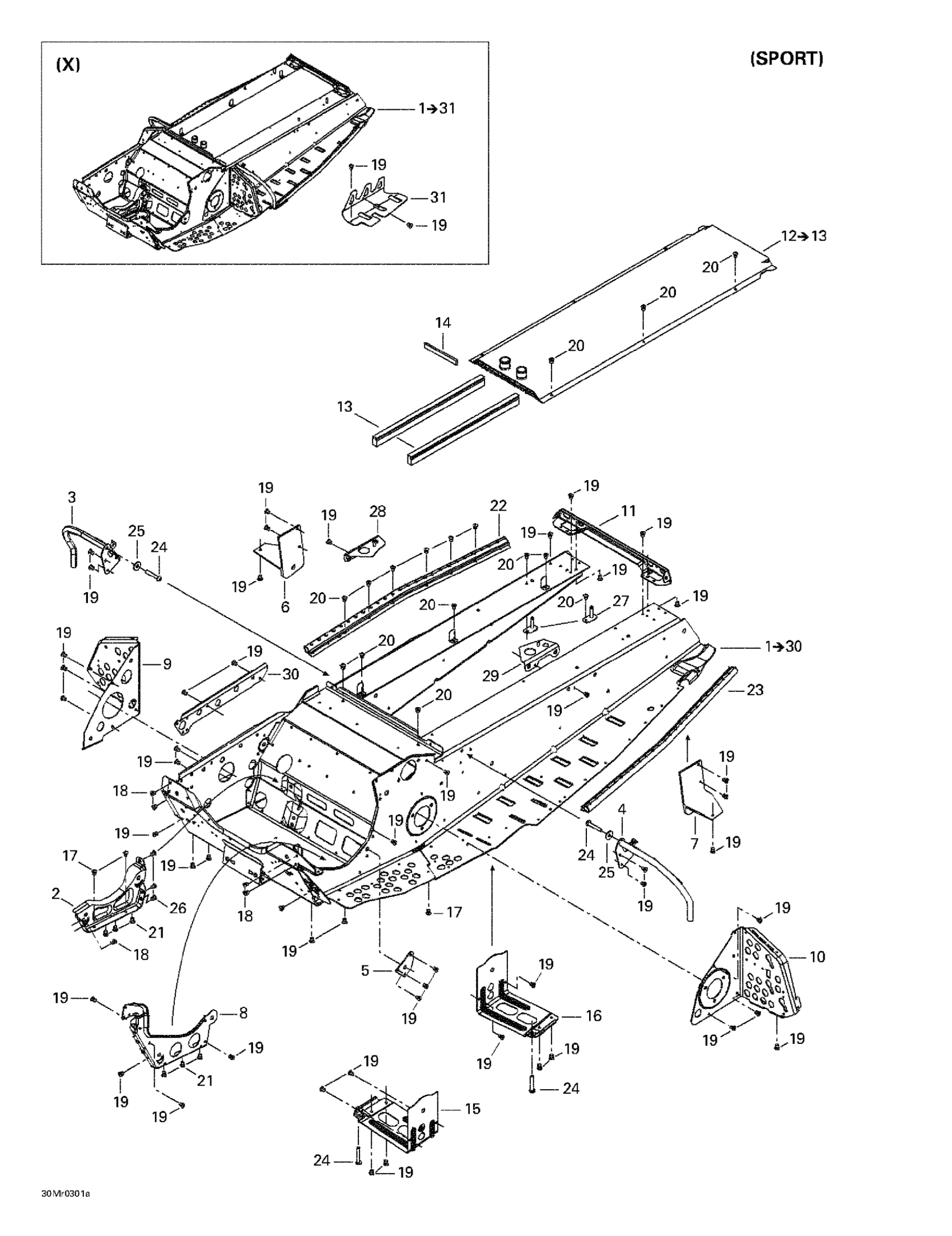

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 09- Frame Diagram
#
Description
Price
1
Frame Ass’Y | Includes 1 - 30.
415128558
Unavailable
1
Frame Ass’Y | Includes 1 - 31.
415128557
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH Toe Hold Support
518322180
Unavailable
4
LH Toe Hold Support
518322181
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Slide Bracket
518323348
Unavailable
7
LH slide bracket
518323350
Unavailable
8
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
9
RH Footrest Reinforcement
518323244
Unavailable
10
LH Footrest Reinforcement
518323245
Unavailable
11
Frame Forming Reinforcement
518323391
Unavailable
12
Rear Radiator | Includes 12 - 13.
518323379
Unavailable
13
Radiator Protector | Grand Touring 500.
518321656
Unavailable
15
RH Footrest
518322432
Unavailable
16
LH Footrest
518322433
Unavailable
21
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
22
RH Roller
518322186
Unavailable
RH Roller
518323421
Unavailable
23
LH Roller
518322187
Unavailable
LH Roller
518323422
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
27
Tank Bracket
518322791
Unavailable
28
RH Frame Reinforcement, Black
518323336
Unavailable
29
LH Frame Reinforcement, Black
518323337
Unavailable
30
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
31
RH Tunnel Liner
518323306
Unavailable
LH Tunnel Liner
518323308
Unavailable
