08- Rear Take Apart Shocks

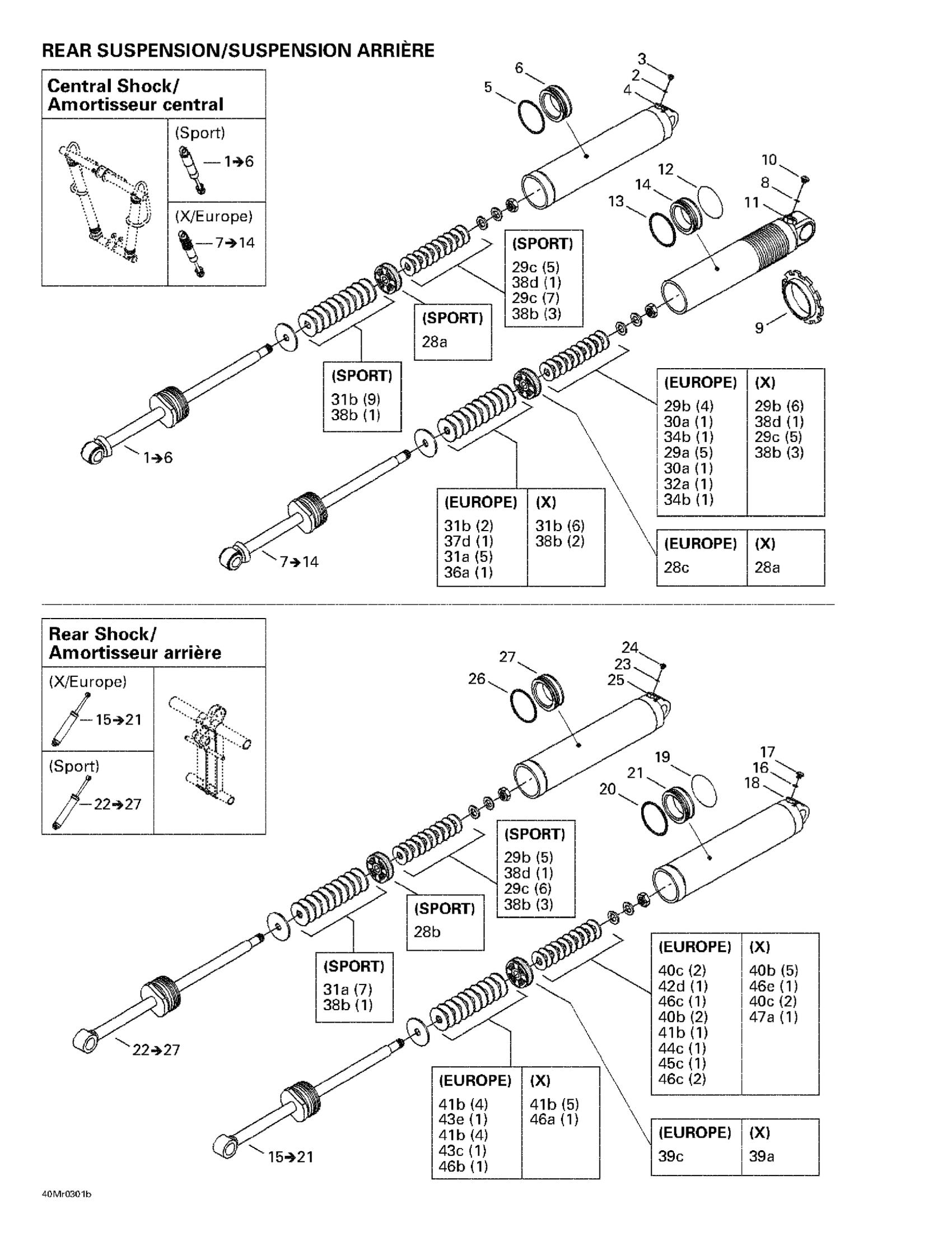

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 08- Rear Take Apart Shocks Diagram
#
1
Center Shock
503190019
Unavailable
6
Free Piston
415097900
Unavailable
7
Center Shock
503190016
Unavailable
7
Center Shock
503190247
Unavailable
9
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
14
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
15
Rear Shock
503190013
Unavailable
15
Rear Shock
503190248
Unavailable
19
PISTON RING - Call your local BRP dealership
503189006
Unavailable
20
O-RING - Call your local BRP dealership
503189007
Unavailable
21
FLOTTING PISTON - Call your local BRP dealership
503189008
Unavailable
22
Rear Shock
503190205
Unavailable
27
Free Piston
415097900
Unavailable
28A
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
28B
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
28C
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
28D
Piston (C36)
414888304
Unavailable
29A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
29B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
29C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
30A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
30B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
31A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
31B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
31C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
32A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
32B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
33A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
34A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
34B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
34C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
35A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
35B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
36A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
36B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
36C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
36D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
37A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
37B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
37C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
37D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
38A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
38B
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
38C
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
38D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
39A
Not Available As Spare Part - Friction Washer
Unavailable
39B
Piston, Ø1.7 (C46)
503189002
Unavailable
39C
Not Available As Spare Part - Friction Washer
Unavailable
39D
Piston, Ø1.2 (C46)
503189003
Unavailable
39E
Piston (C46)
503189004
Unavailable
40A
Leaf Valve Ø40 X 0.254 (C46)
503189041
Unavailable
40B
Leaf Valve Ø40 X 0.203 (C46)
503189040
Unavailable
40C
Leaf Valve Ø40 X 0.152 (C46)
503189039
Unavailable
41A
Leaf Valve Ø36 X 0.254 (C46)
503189038
Unavailable
41B
Leaf Valve Ø36 X 0.203 (C46)
503189037
Unavailable
41C
Leaf Valve Ø36 X 0.152 (C46)
503189036
Unavailable
41E
Leaf Valve Ø30 X 0.114 (C46)
503189031
Unavailable
42A
Leaf Valve Ø30 X 0.305 (C46)
503189035
Unavailable
42B
Leaf Valve Ø30 X 0.254 (C46)
503189034
Unavailable
42C
Leaf Valve Ø30 X 0.203 (C46)
503189033
Unavailable
42D
Leaf Valve Ø30 X 0.152 (C46)
503189032
Unavailable
43A
Leaf Valve Ø28 X 0.305 (C46)
503189030
Unavailable
43B
Leaf Valve Ø28 X 0.254 (C46)
503189029
Unavailable
43C
Leaf Valve Ø28 X 0.203 (C46)
503189028
Unavailable
43D
Leaf Valve Ø28 X 0.152 (C46)
503189027
Unavailable
43E
Leaf Valve Ø28 X 0.114 (C46)
503189026
Unavailable
44A
Leaf Valve Ø26 X 0.305 (C46)
503189025
Unavailable
44B
Leaf Valve Ø26 X 0.254 (C46)
503189024
Unavailable
44C
Leaf Valve Ø26 X 0.203 (C46)
503189023
Unavailable
44D
Leaf Valve Ø26 X 0.152 (C46)
503189022
Unavailable
44E
Leaf Valve Ø26 X 0.114 (C46)
503189021
Unavailable
45A
Leaf Valve Ø24 X 0.305 (C46)
503189020
Unavailable
45B
Leaf Valve Ø24 X 0.254 (C46)
503189019
Unavailable
45C
Leaf Valve Ø24 X 0.203 (C46)
503189018
Unavailable
45D
Leaf Valve Ø24 X 0.152 (C46)
503189017
Unavailable
45E
Leaf Valve Ø24 X 0.114 (C46)
503189016
Unavailable
46A
Leaf Valve Ø22 X 0.305 (C46)
503189015
Unavailable
46B
Leaf Valve Ø22 X 0.254 (C46)
503189014
Unavailable
46C
Leaf Valve Ø22 X 0.203 (C46)
503189013
Unavailable
46D
Leaf Valve Ø22 X 0.152 (C46)
503189012
Unavailable
46E
Leaf Valve Ø22 X 0.114 (C46)
503189011
Unavailable
47A
Not Available As Spare Part - Friction Washer
Unavailable
