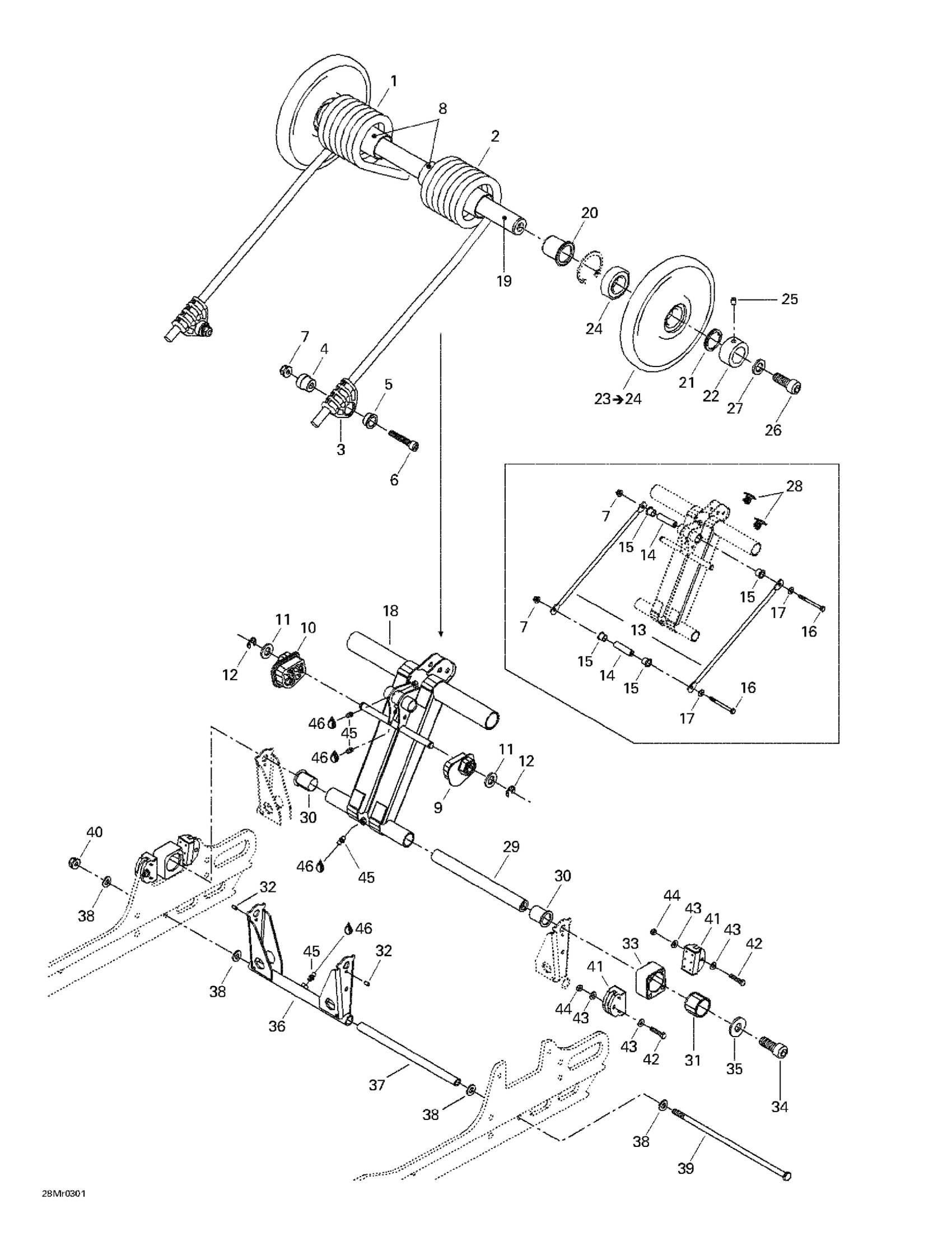

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 08- Rear Arm Diagram

#

Description
Price

1

RH Spring | Legend SE 800 SDI.

503189947

Unavailable

2

LH SPRING - Call your local BRP dealership | Legend SE 800 SDI.

503189948

Unavailable

3

Spring Support

503189657

$11.99

4

Spring Guide Axle

503188934

Unavailable

5

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

6

Socket Head Screw M8 X 45

205084544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.72

12

E-Circlip

293370013

$0.65

13

THROTTLE ROD - Call your local BRP dealership

503189726

Unavailable

14

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

15

Swivel Bushing

503191555

$7.83

16

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

17

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

18

Rear Arm

503190110

Unavailable

19

Upper Axle

503189412

Unavailable

20

CUSHION - Call your local BRP dealership

503189288

Unavailable

21

Axle Spring

503189146

$9.59

22

Retainer Ring

503189147

Unavailable

23

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

24

Ball Bearing

293350115

$12.11

25

Socket Set Screw M6 X 8

206260844

$1.48

26

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

27

Washer

503189276

$3.28

28

Black, Dart

414644300

$0.98

29

REAR LOWER AXLE - Call your local BRP dealership

503189413

Unavailable

30

Cushion

503191640

$5.93

31

Block Guide

503189488

$39.99

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

33

LH Block

503189152

Unavailable

RH Block

503189170

Unavailable

34

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

35

Washer

503189276

$3.28

36

PIVOT ARM - Call your local BRP dealership

503189819

Unavailable

37

Pivot Arm Axle

503189156

$21.99

38

Washer

503189157

$3.28

39

Bolt M8 X 248mm

503192440

$30.49

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Rubber Stopper

503191291

$19.99

42

Hex. Screw M5 X 30

207053044

$1.16

43

Washer

250200016

$0.74

44

Elastic Stop Nut M5

232551414

$0.87

45

Grease Fitting

408200700

$3.49

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
