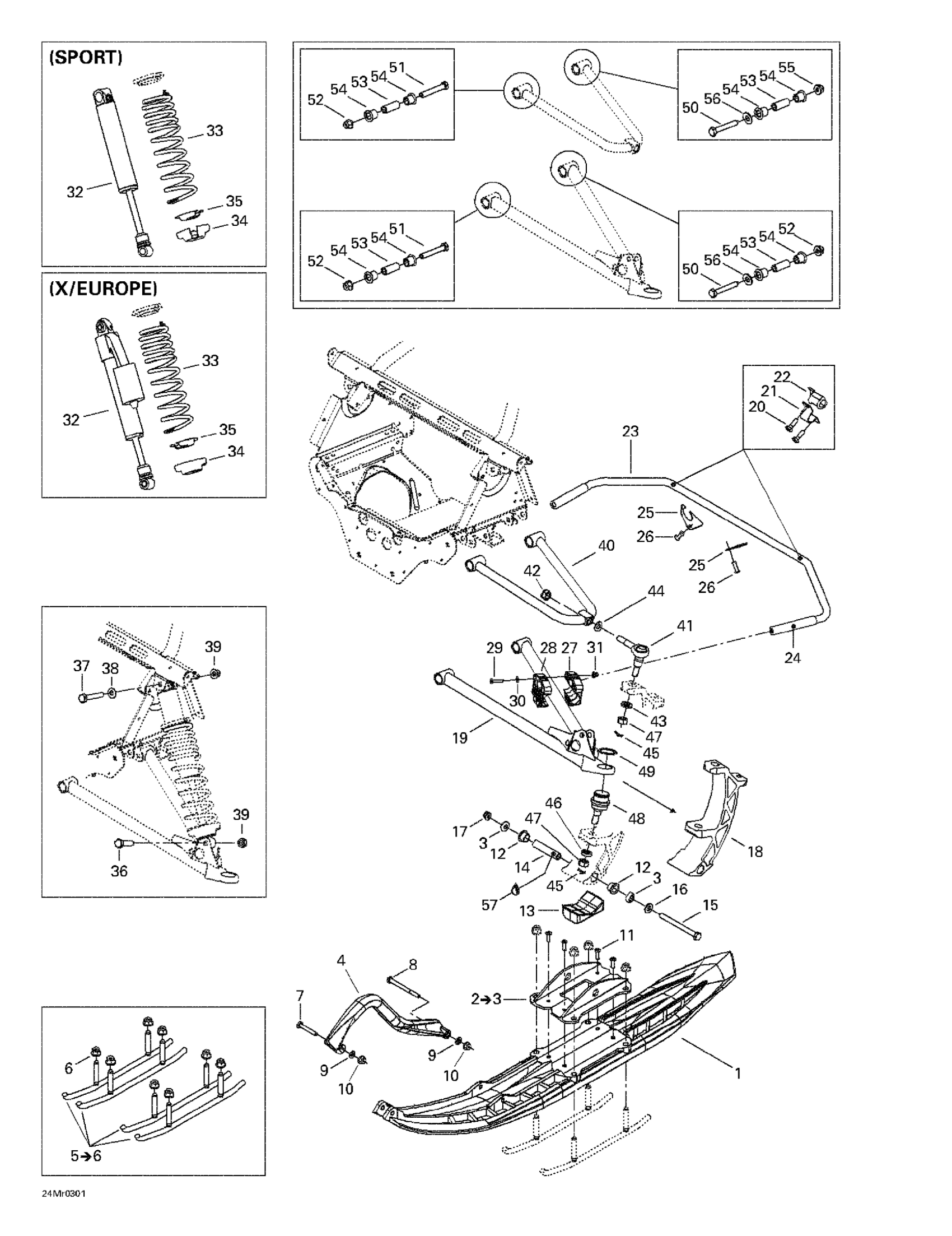

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 07- Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$111.49

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

2

Bridge Ass’Y | Includes 2 - 3.

505071207

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$35.99

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$92.99

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Screw M8 X 50

207085044

$1.48

8

Hex. Screw M8 X 90

207089044

$3.48

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

$12.49

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$23.99

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.58

17

Flange Nut M10

732610084

$6.79

18

Ski Leg

505071025

Unavailable

Ski Leg

505071094

Unavailable

19

RH Lower Arm

860509700

Unavailable

RH Lower Arm

505071290

Unavailable

19

LH Lower Arm

860509600

Unavailable

LH Lower Arm

505071293

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING, 5/8? - Call your local BRP dealership

505070665

Unavailable

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

23

Stabilisator, 5/8”

505070659

Unavailable

24

STABILISATOR BOOT, 5/8? - Call your local BRP dealership

505070750

Unavailable

25

Plug

505070874

Unavailable

26

Pop Rivet 3/16"

293150103

$0.55

27

RH HALF SLIDER - Call your local BRP dealership

505070667

Unavailable

28

LH Half Slider

505070668

Unavailable

29

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

30

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

$1.04

32

Front Shock

505070966

Unavailable

RH Front Shock

505070904

Unavailable

LH Front Shock

505070903

Unavailable

RH Front Shock

505070938

Unavailable

LH Front Shock

505070937

Unavailable

33

Spring

505071179

Unavailable

Spring

505071162

Unavailable

Spring

505071162

Unavailable

34

Spring Stopper

706200881

$12.99

35

Cap

706200785

$4.69

36

Hex. Screw M10 X 55

207005544

$2.22

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

Washer

732900049

$0.58

39

Hex. Flange Elastic Nut M10

233201414

$1.58

40

Upper Arm

505071165

Unavailable

41

Upper Ball Joint

505072257

$17.58

42

Hex. Flange Elastic Nut M12

250000047

$1.90

43

Flat Washer 12 mm

234021410

$0.72

44

Washer

503189276

$3.28

45

Cotter Pin

211400017

$0.33

46

Washer

505071184

Unavailable

47

Hex. Castellated Nut M12

232221414

$3.17

48

Ball Joint

505073636

$51.99

49

Circlip

293370035

$2.64

50

Cone Screw M10 X 75

250000114

Unavailable

51

Hex. Screw M10 X 70

207007044

$2.32

52

Hex. Flange Elastic Nut M10

233201414

$1.58

53

Bushing

505070567

$24.99

54

Arm Bushing

505070566

$3.28

55

Elastic Locking Nut M10 X 1.5

233601416

$1.69

56

Washer

503189564

$0.74

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
