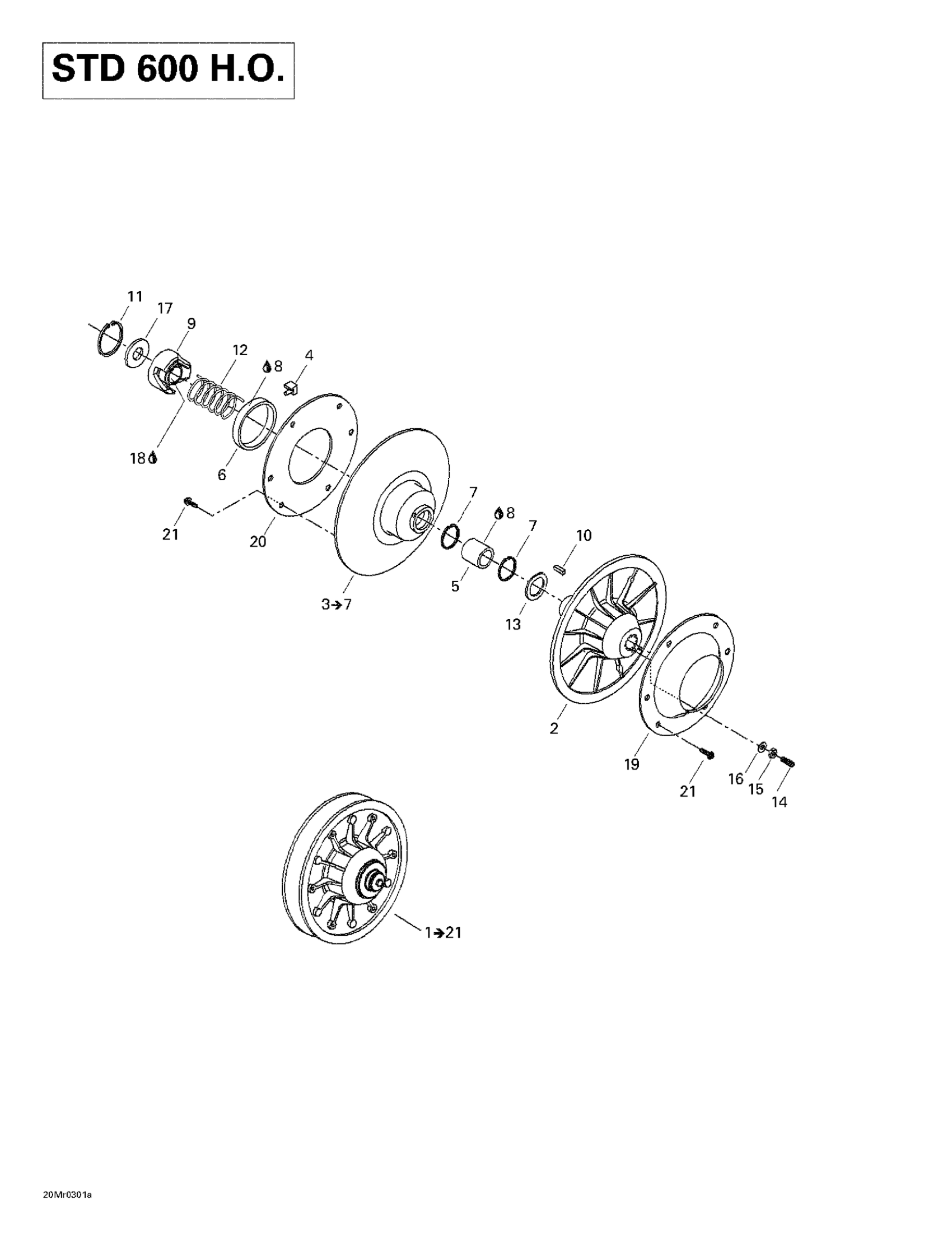

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 05- Driven Pulley (STD 600 HO) Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417126499

Unavailable

3

Sliding Flange Ass’Y | Includes items 36 to 41

417126501

Unavailable

4

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Cushion

417126514

Unavailable

7

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

8

Loctite 609, 10 ml

413703100

$26.99

9

Came

417126704

Unavailable

10

Key

414820800

Unavailable

11

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

12

RELEASE SPRING, WHITE - Call your local BRP dealership

504152070

Unavailable

13

Thrust Washer

504141900

Unavailable

14

Socket Set Screw M6 X 30

206263044

Unavailable

15

Hex. Nut M6

232061414

$0.53

16

WASHER - Call your local BRP dealership

420245370

Unavailable

17

Washer

417126555

Unavailable

18

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

19

CUP - Call your local BRP dealership

504142000

Unavailable

20

Ring

504142100

Unavailable

21

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable
