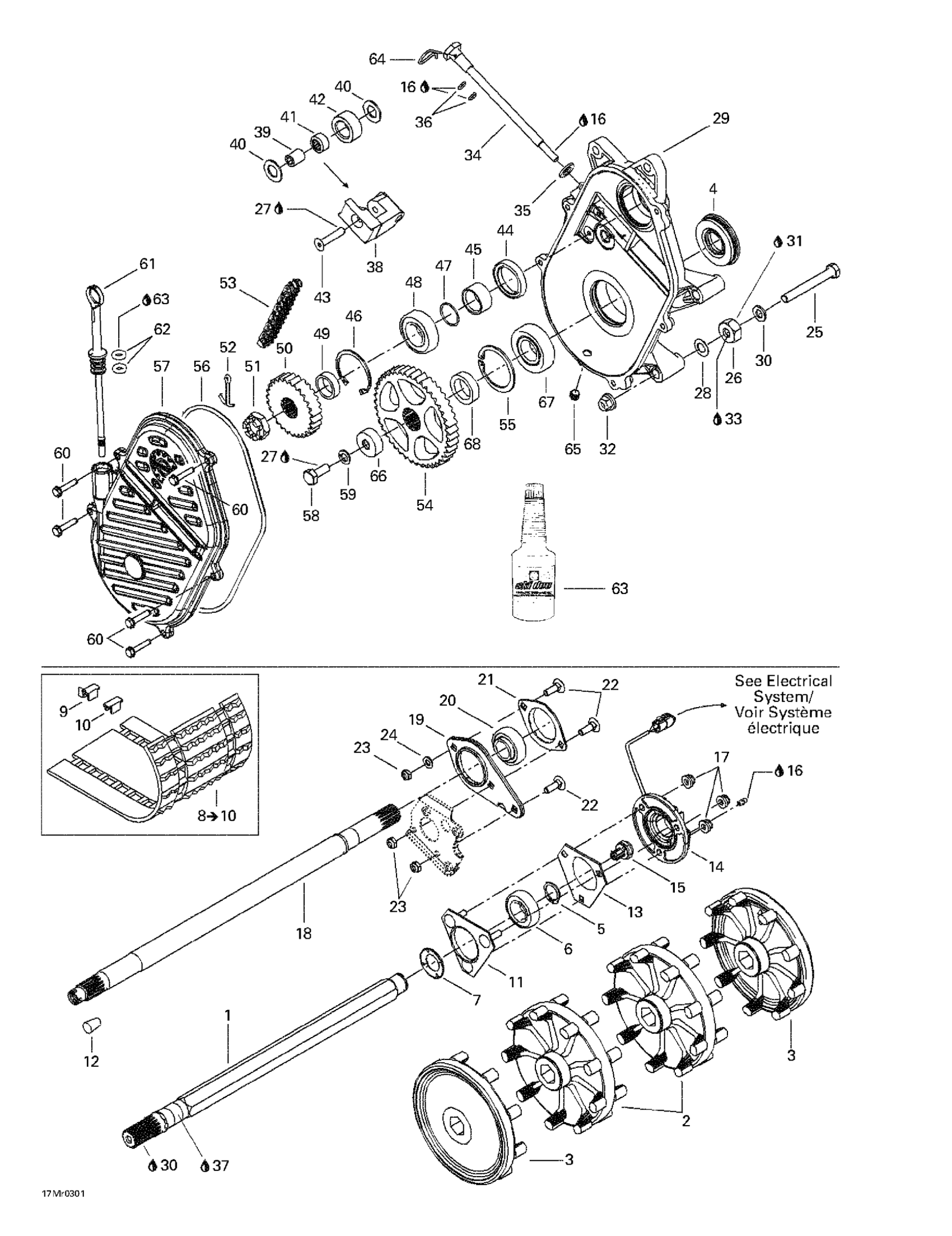

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

8

Chenille 15X121 *Track 15X121X1.25 Rip S | Includes 8 to 10 This part replaces 504152558.

C9968H

$759.99

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

8

Track 15” X 121” X 1.75” Ass'y | Includes 8 - 10. MX Z 800.

504152196

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$71.99

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

19

SPACER - Call your local BRP dealership

504151968

Unavailable

20

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

21

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

22

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

Flat Washer 8 mm

234081410

$0.83

25

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

26

Spacer

504083800

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

WASHER - Call your local BRP dealership

504073700

Unavailable

29

Chaincase

504152105

Unavailable

30

Washer

503183800

$3.28

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

Hex. Flange Elastic Nut M10

233201414

$1.58

33

Loctite 243, 10 ml

293800060

$21.49

34

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

35

Flat Washer 10 mm

234001410

$1.26

36

O-Ring

414484400

$7.51

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

Chain Tensioner

504151951

Unavailable

39

SPACER - Call your local BRP dealership

504080200

Unavailable

40

WASHER - Call your local BRP dealership

504080300

Unavailable

41

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

42

ROLLER - Call your local BRP dealership

414531300

Unavailable

43

SCREW - Call your local BRP dealership

732601144

Unavailable

44

Oil Seal

293200158

$14.22

45

SPACER - Call your local BRP dealership

507031500

Unavailable

46

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

47

O-RING - Call your local BRP dealership

414876700

Unavailable

48

Ball Bearing

293350115

$12.11

49

SHIM - Call your local BRP dealership

504147200

Unavailable

50

SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership | GSX 800 HO

504085300

Unavailable

SPROCKET, 24 TEETH - Call your local BRP dealership

504139700

Unavailable

51

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

52

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

53

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

54

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

55

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

56

O-Ring

414362300

Unavailable

57

Cover

504152081

Unavailable

58

Hex. Screw M10 X 25

207102544

$1.37

59

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

60

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

61

FILLER CAP ASSY - Call your local BRP dealership

504151750

Unavailable

62

O-RING - Call your local BRP dealership

414969400

Unavailable

63

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

64

Hair Pin

414575600

$1.89

65

Plug 1/8”-27

504151921

$4.19

66

CAP - Call your local BRP dealership

504152104

Unavailable

67

Ball Bearing

504152005

$46.49

68

Shim

504152058

Unavailable
