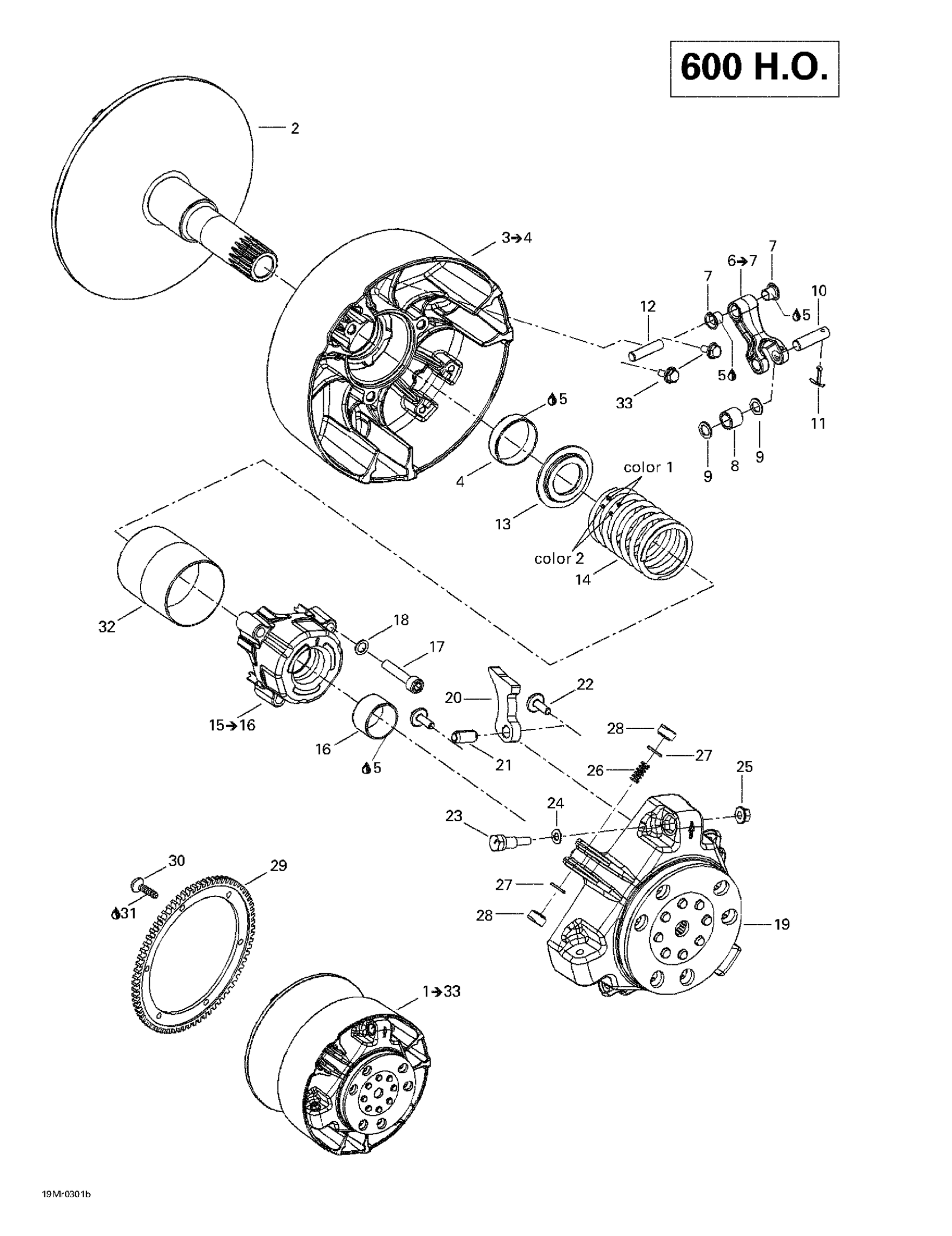

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 05- Drive Pulley (600 HO) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Lever | Includes 10f to 10g

417222671

$49.99

7

Bushing

417004305

$11.52

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417004308

$13.99

11

Cotter Pin

250400060

$2.00

12

Lever Axle

417223164

$4.49

13

Spring Seat

417222312

$9.59

14

Spring, Violet/Violet

414817900

$39.99

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

16

Bushing

417009204

$17.49

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

18

Lock Washer 8 mm

250200009

$2.11

19

Governor Cup

417222213

Unavailable

20

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

21

Spring Pin M10 X 22

250400050

$2.99

22

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

23

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

24

Washer

417005600

$4.09

25

Hex. Flange Nut M6

233061414

$1.68

26

Spring

417005700

$4.76

27

O-Ring

732401030

$0.98

28

Slider Shoe This part replaces 420460045.

417223021

$5.90

29

Ens This part replaces 861790500.

861791800

$201.49

30

HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership

250000049

Unavailable

31

Loctite 271, 10 ml

293800005

$26.99

32

Guard

417009205

$21.99

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09
