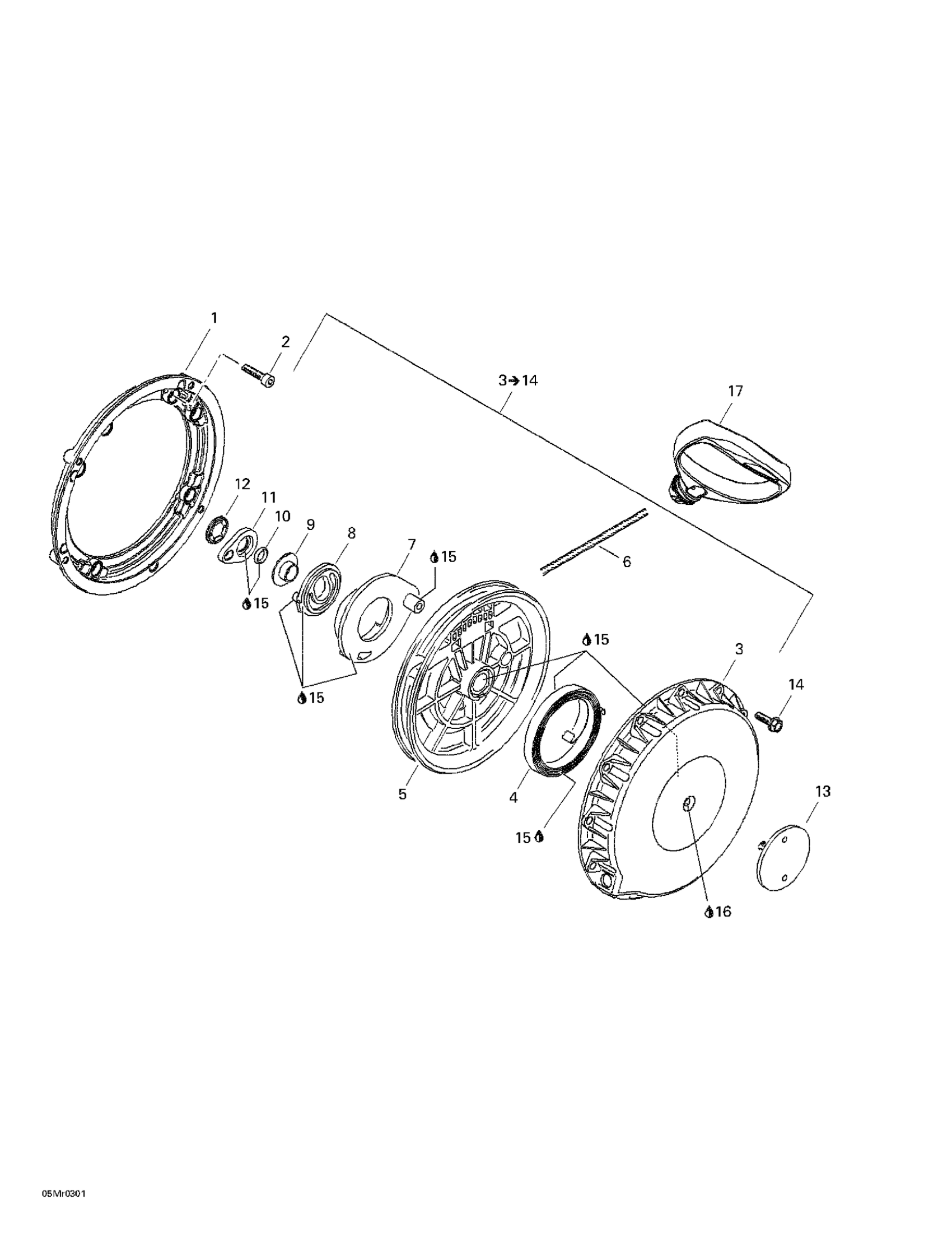

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 Rewind Starter Diagram

Flange Connector

420810868

$86.12

Socket Head Screw M6 x 16

420241237

$1.85

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

Starter Housing

420910256

$89.20

Rewind Spring

420939115

$25.32

ROPE SHEAVE - Call your local BRP dealership | SUV 600

420852286

Unavailable

Was 412500100 Rope-Starter

219704403

$10.15

Pawl

420852633

$32.28

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

Stage Sleeve

420847926

$14.54

O-Ring

420250400

$5.22

Lock Ring

420852520

$8.34

Locking Element

420845560

$2.03

Not Available As Spare Part - Friction Washer

Unavailable

Torx Flange Screw M6 X 20

420441386

$2.06

Molykote PG 54, 10 g

420899763

$18.82

SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership

293530011

Unavailable

Starter Grip

572084400

$14.54
