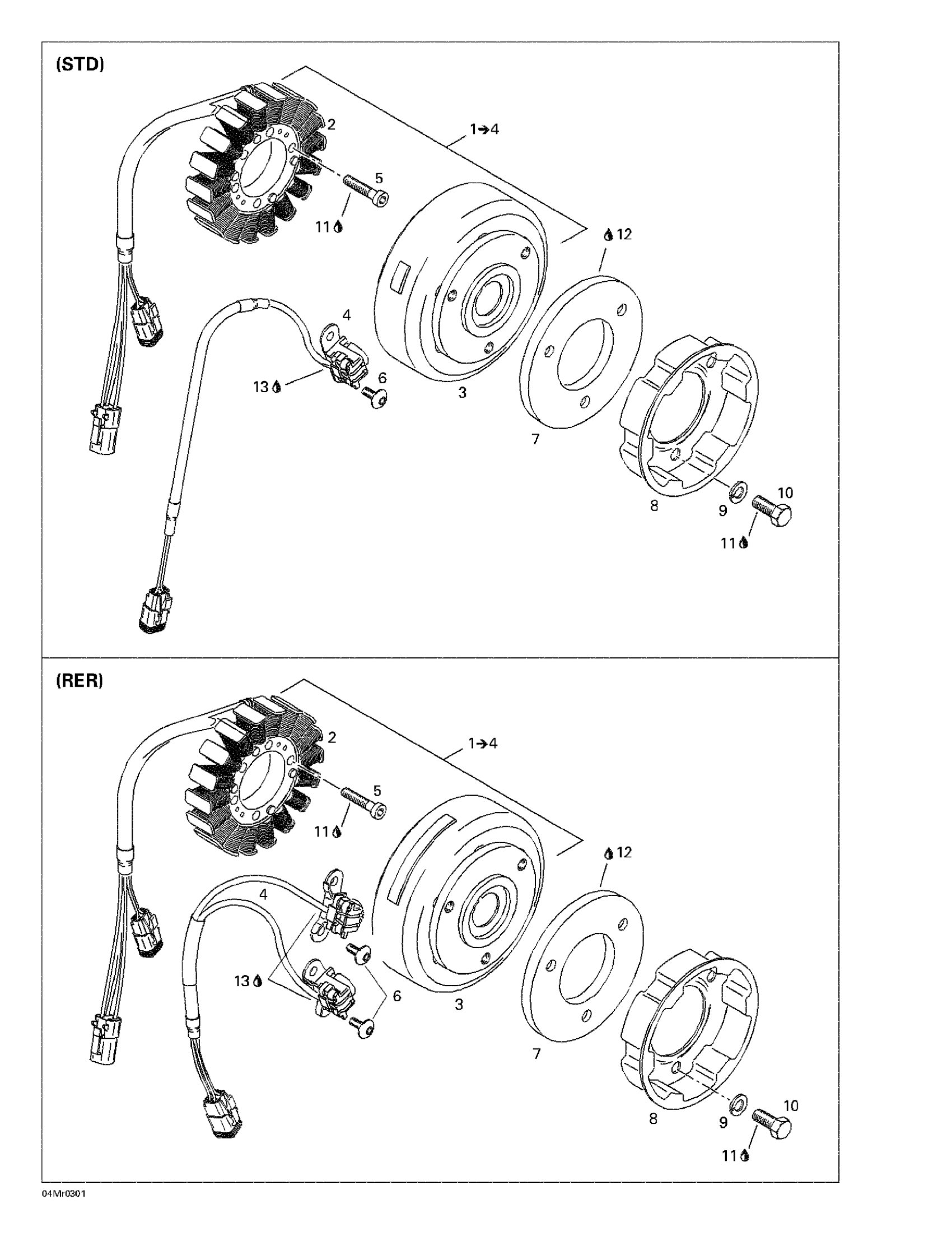

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 Magneto (12V, 360W) Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

$319.49

3

FLYWHEEL - Call your local BRP dealership

410922953

Unavailable

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

4

Pick-Up

410922951

$106.89

Pickup Ass'y

410922948

$189.20

5

Socket Head Screw M6 X 30

205063044

$1.42

6

Torx Screw M6 X 16

420640324

$2.06

Torx Screw M6 X 16

420640324

$2.06

7

Flywheel

420866756

Unavailable

8

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.58

9

Washer-Lock Din.128

420945832

$1.09

10

Hex. Screw M8 X 20

207182044

$0.61

11

Loctite 243, 10 ml

293800060

$20.77

12

Sealant Loctite 648

219703000

$35.72

13

SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership

293530011

Unavailable
