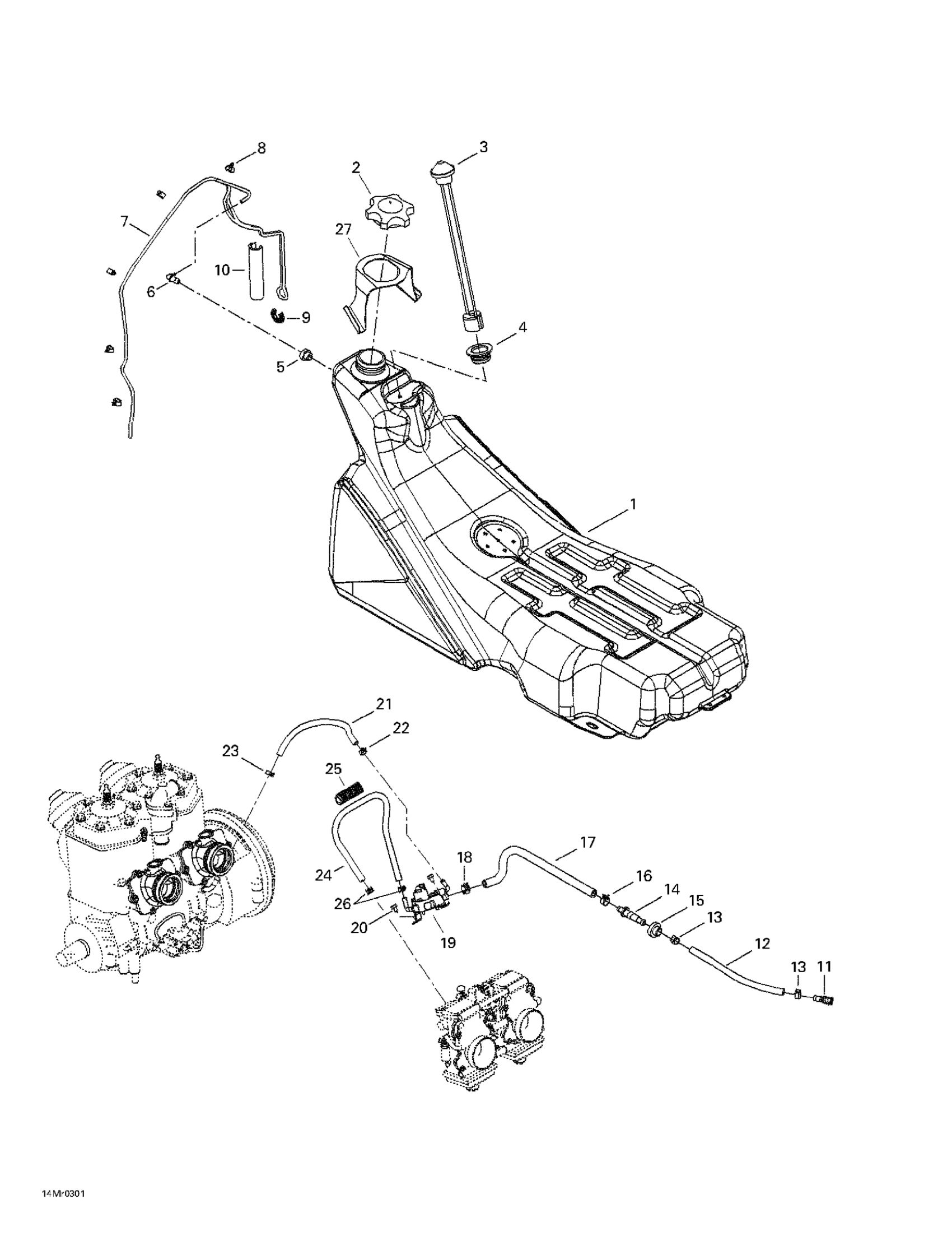

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033080

Unavailable

Fuel Tank | LTD

513033077

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$10.67

5

Grommet

513032908

$8.48

6

Male Connector

414814100

$2.12

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

8

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

9

SPRING - Call your local BRP dealership

414818200

Unavailable

10

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

11

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

12

Hose

513033070

$12.24

13

Norma Spring Clamp

513033010

$8.42

14

Male Connector

414872700

$1.81

15

Grommet | Europe

707800347

$7.58

16

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

17

Formed Hose

513033374

$28.33

18

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

19

Fuel Pump | Manuel Start

403901811

Unavailable

Fuel Pump

403901812

$84.99

20

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

21

HOSE - Call your local BRP dealership

513033035

Unavailable

22

Spring Clamp

414415200

$0.81

23

Universal Spring Clamp

513033029

$4.96

24

Tube

415117800

Unavailable

25

Tubing 10 MM 1000MM Long

219704407

$2.20

26

Spring Clamp

414420700

$0.66

27

SUPPORT - Call your local BRP dealership

513033066

Unavailable
