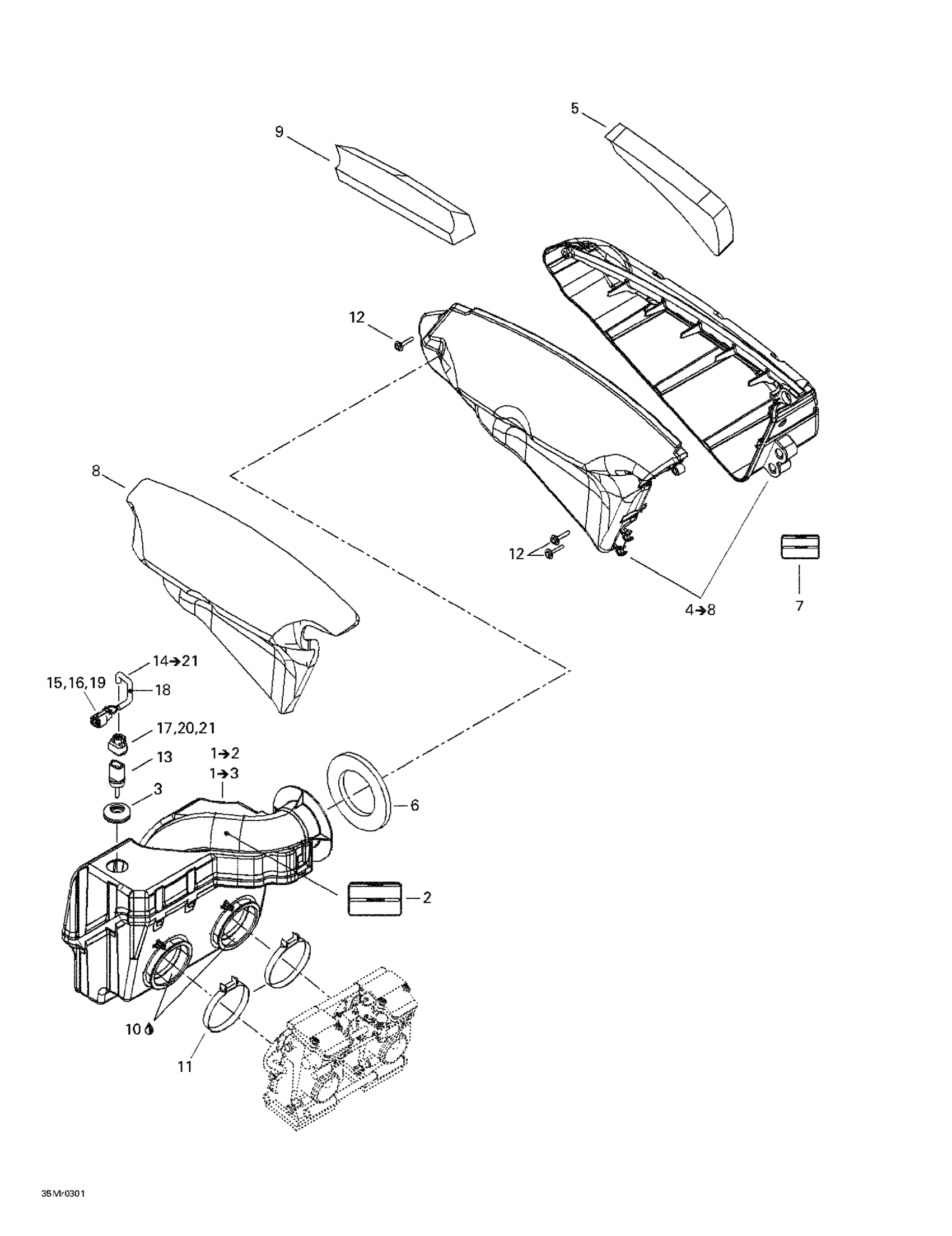

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 02- Air Intake System Diagram

#

Description
Price

1

Chamber Ass’Y | Includes 1 - 3.

508000304

Unavailable

1

Chamber Ass’Y | Includes 1 - 2.

508000301

Unavailable

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

GROMMET - Call your local BRP dealership

570065500

Unavailable

4

Chamber Ass’Y | Includes 4 - 8.

508000302

Unavailable

5

Inner Foam

508000145

Unavailable

6

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

9

Air Filter

508000394

$51.99

10

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

11

Gemi Clamp

508000346

$10.33

12

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

13

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

14

Temperature Harness | Includes 40 to 47

515175703

Unavailable

15

Female Terminal

278000998

$4.39

16

Wire Seal

278000999

$3.19

17

Female Terminal

278000632

$2.09

18

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

19

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

20

Female Terminal Housing, 2 Circuits

515175670

$8.39

21

Female Lock, 2 Circuits

515175706

Unavailable
