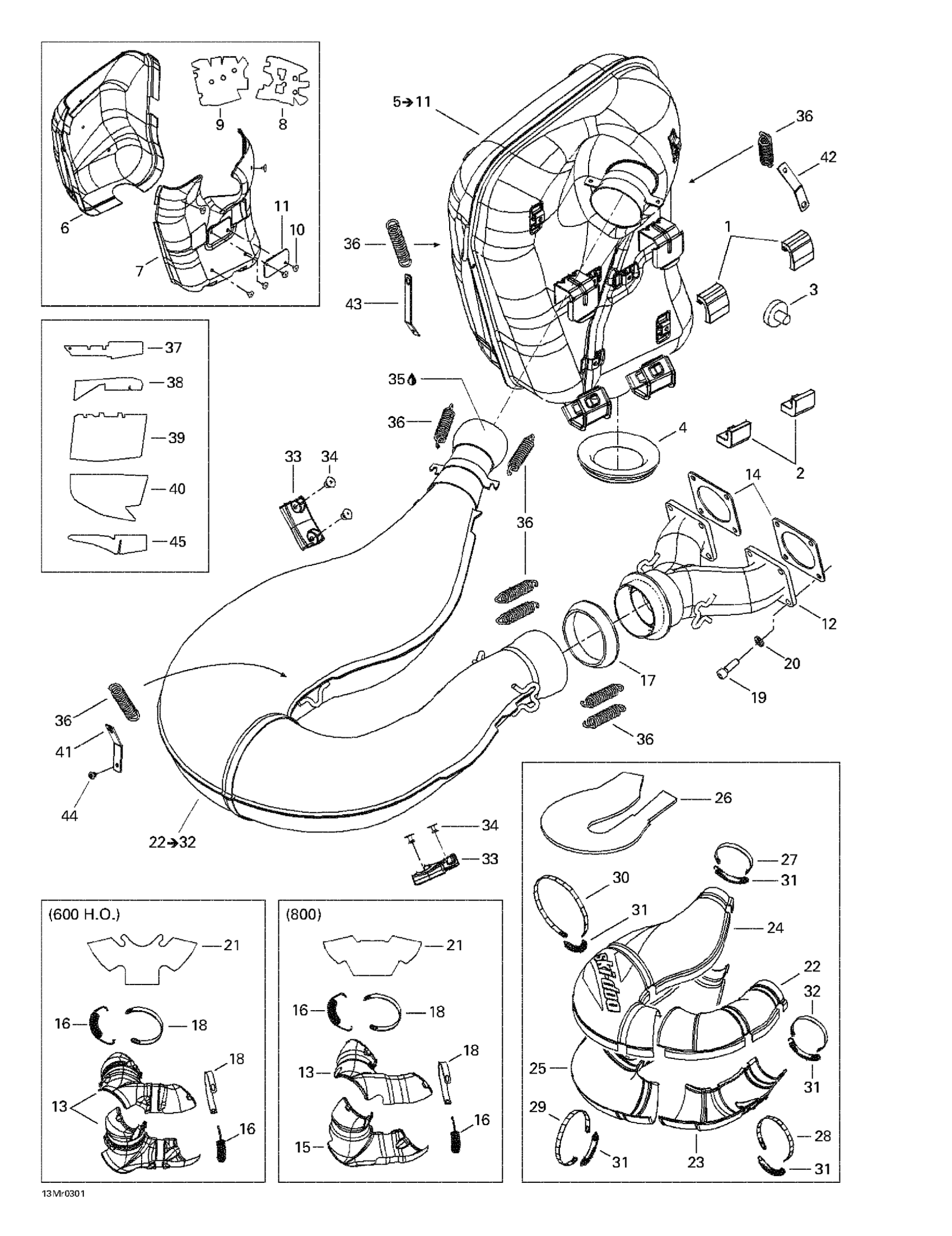

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 01- Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$50.99

4

Exhaust Grommet

514053394

Unavailable

5

Muffler Ass’Y | Includes 5 - 11.

514053541

Unavailable

6

RH Heat Shield

514053563

Unavailable

7

LH Heat Shield

514053585

Unavailable

8

LH INSULATING WOOL - Call your local BRP dealership

514053590

Unavailable

9

RH INSULATING WOOL - Call your local BRP dealership

514053589

Unavailable

10

Pop Rivet 3/16”

390910000

$0.57

11

Reinforcement

514053429

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

13

Upper Enveloppe

514053592

Unavailable

Enveloppe, Exhaust Manifold

514053593

Unavailable

14

Gasket

420850552

$8.85

Gasket

420931850

$12.17

15

Lower Enveloppe

514053594

Unavailable

16

Spring

514053643

$6.35

17

Exhaust Gasket

514053487

$26.49

18

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

19

Socket Head Screw M6 X 20

205062044

$1.26

20

Lock Washer M6, Black

234161471

$0.53

21

Insulating Wool

514053284

Unavailable

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable

22

Tuned Pipe Ass’Y | Includes 22 - 32.

514053547

Unavailable

22

Tuned Pipe Ass’Y | Includes 22 - 32. MX Z 600 H.O..

514053550

Unavailable

22

Upper Front Half Envelope

514053609

Unavailable

23

Lower Front Half Envelope

514053610

Unavailable

24

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

25

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

Unavailable

26

INSULATING WOOL - Call your local BRP dealership

514053584

Unavailable

27

RETAINING STRAP - Call your local BRP dealership

514053437

Unavailable

28

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

29

RETAINING STRAP - Call your local BRP dealership

514053534

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053535

Unavailable

31

Spring

514053643

$6.35

32

Retaining Strap

514053536

$15.22

33

BUMPER - Call your local BRP dealership

514053352

Unavailable

34

Pop Rivet 3/16"

293150103

$0.55

35

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

36

Spring

415107100

$6.35

37

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

38

Reflective Sheet

514053622

Unavailable

39

Reflective Sheet

514053561

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

514053562

Unavailable

41

SPRING BRACKET - Call your local BRP dealership

514049700

Unavailable

42

SPRING BRACKET - Call your local BRP dealership

514049700

Unavailable

43

Spring Bracket

514053393

$14.16

44

Pop Rivet 3/16"

390402200

$0.35

45

REFLECTIVE SHEET - Call your local BRP dealership

514053673

Unavailable
