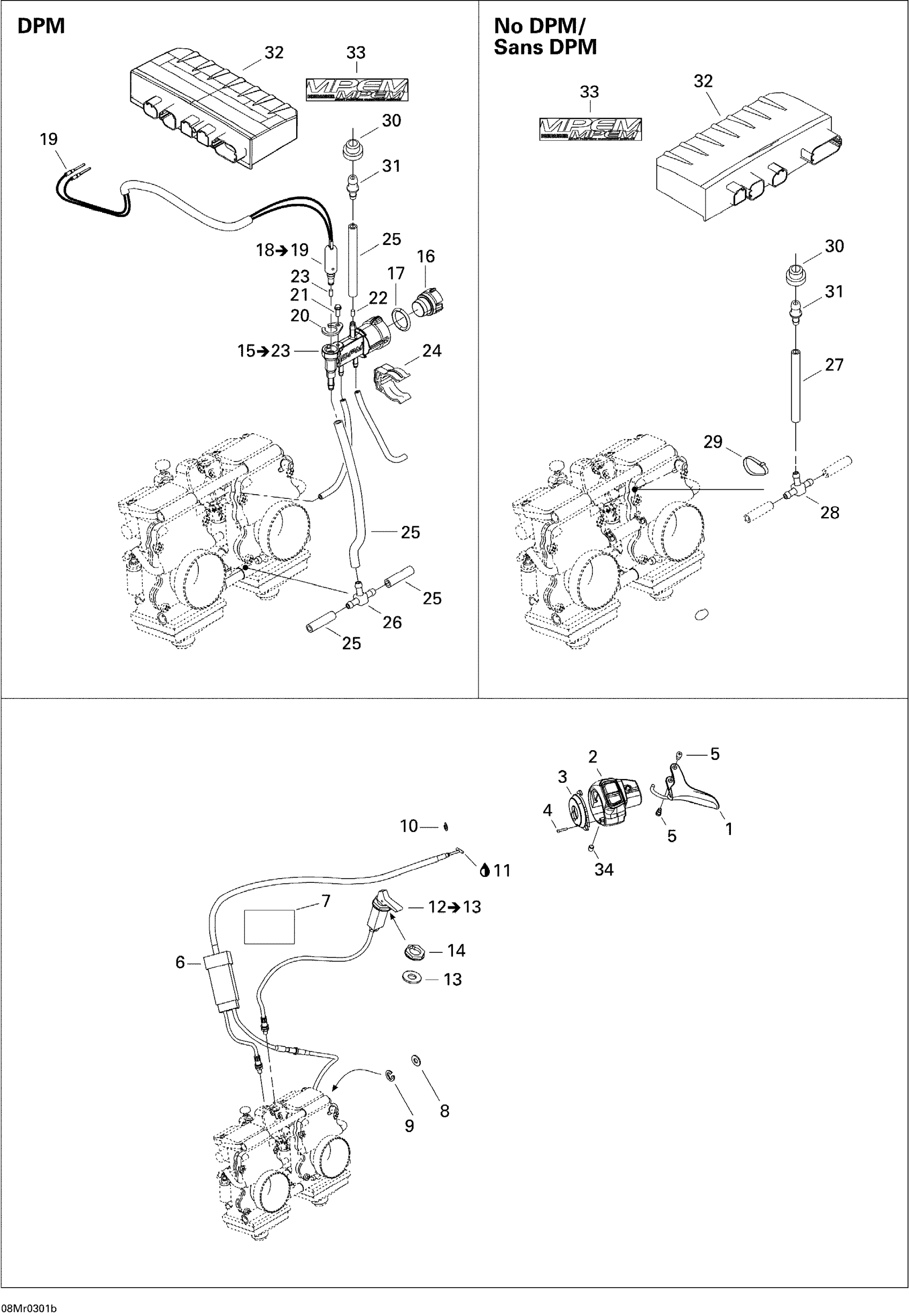

Ski-Doo MX Z Rev 600 HO/800/007 Special Edition, 2003 01- Engine 2 Diagram

#

Description
Price

1

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

2

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

3

COVER - Call your local BRP dealership

512059698

Unavailable

4

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

5

Flange Screw

732601143

$4.12

6

Throttle Cable

512060085

$84.99

7

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.39

9

Circlip

414753500

$0.71

10

Circlip

414274500

$0.90

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

15

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

16

CAP - Call your local BRP dealership

270600009

Unavailable

17

O-RING - Call your local BRP dealership

293300042

Unavailable

18

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

19

Female Terminal

278001665

$4.55

20

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

21

Screw K40 X 10

241140060

$1.48

22

Not Available As Spare Part - Friction Washer

Unavailable

23

STARTER JET - Call your local BRP dealership

404161825

Unavailable

24

SUPPORT - Call your local BRP dealership

512058919

Unavailable

25

Polyurethane Hose 10000Mm Long

219704410

$56.99

26

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

T-Fitting

572045500

$7.51

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

Grommet

513032908

$10.49

31

Straight Fitting

293710035

$8.89

32

Calibrated Module | MX Z 600 H.O..

512059702

Unavailable

Calibrated Module | MX Z 600 H.O..

512059704

Unavailable

Calibrated Module | MX Z 600 H.O..

512059705

Unavailable

CALIBRATED MODULE - Call your local BRP dealership | MX Z 800.

512059706

Unavailable

Calibrated Module | MX Z 800.

512059708

Unavailable

Calibrated Module

512059709

Unavailable

33

Electrical Box Decal

516000245

Unavailable

34

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable
