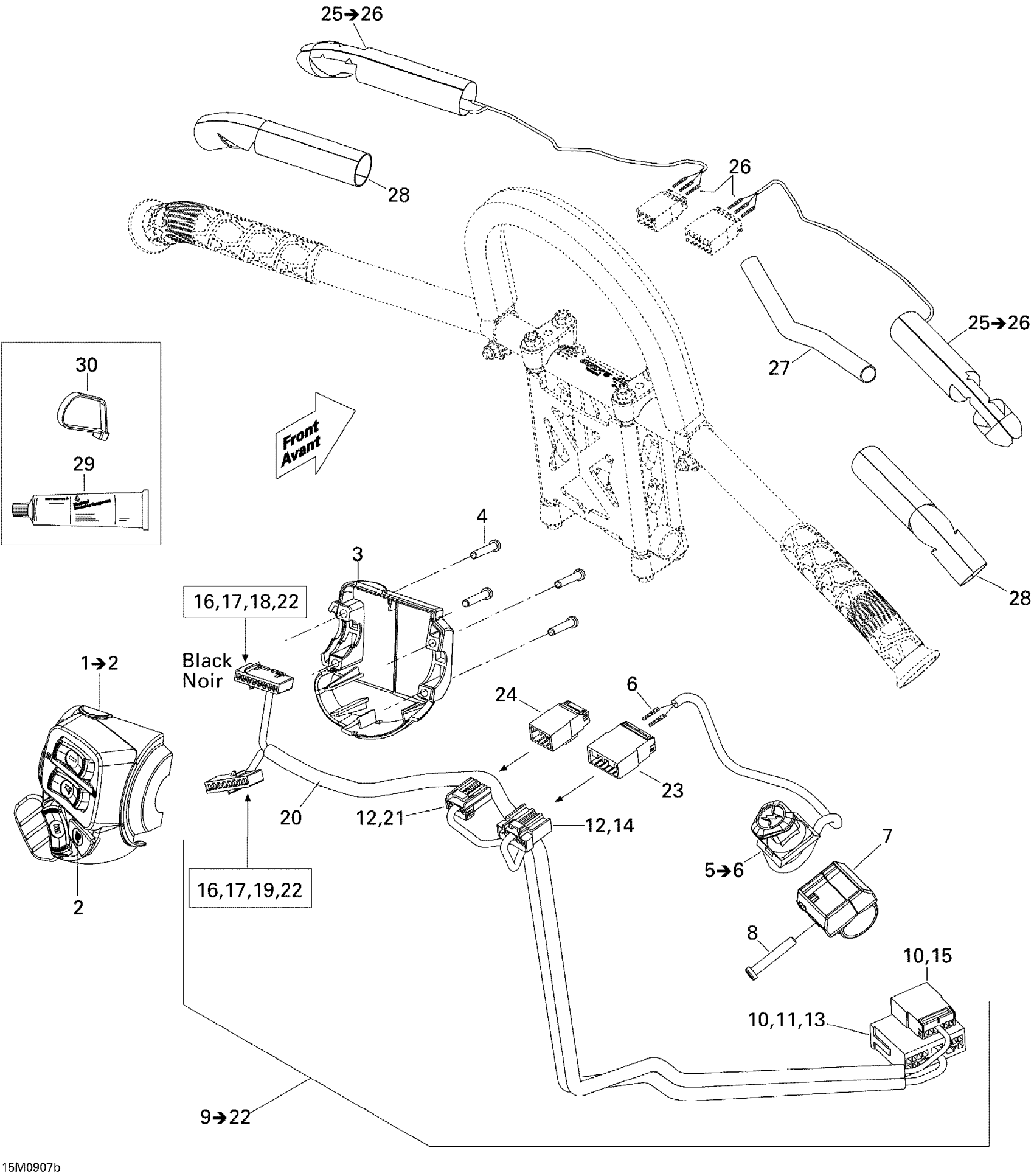

Ski-Doo MX Z Renegade X 800R Power T.E.K., 2009 10- Steering Wiring Harness 800R Renegade X Diagram

#

Description
Price

1

LH Housing | Includes 1 to 2

515177053

$174.99

2

Start/RER Button

515176088

$20.99

3

Switch Housing Plate

515175926

$20.99

4

Torx Screw #8-18

250000263

$1.04

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

6

Male Terminal

515175232

$1.58

7

Kill Switch Support

515176825

$10.49

8

Torx Screw #8-18

250000263

$1.04

9

WIRING HARNESS - Call your local BRP dealership | Includes 9 to 22

515176417

Unavailable

10

Male Terminal

515175232

$1.58

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

$4.39

13

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

14

Female Terminal Housing, 6 Circuits

515175543

$9.49

15

Male Terminal Housing, 6 Circuits

515175662

$8.79

16

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

17

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

18

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

19

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

20

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Female Terminal

515175941

$2.69

23

Male Terminal Housing, 6 Circuits

515175662

$8.79

24

Male Terminal Housing, 4 Circuits

515175846

$8.79

25

Heating Element 32W

506152371

Unavailable

26

Male Terminal

515175232

$1.58

27

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

28

Insulant

506152360

$6.29

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

Tie Wrap 142 mm

293750002

$1.25

30

Tie-Rap 180 mm

414115200

$0.11

30

Tie Wrap 368 mm

293750008

$1.04
