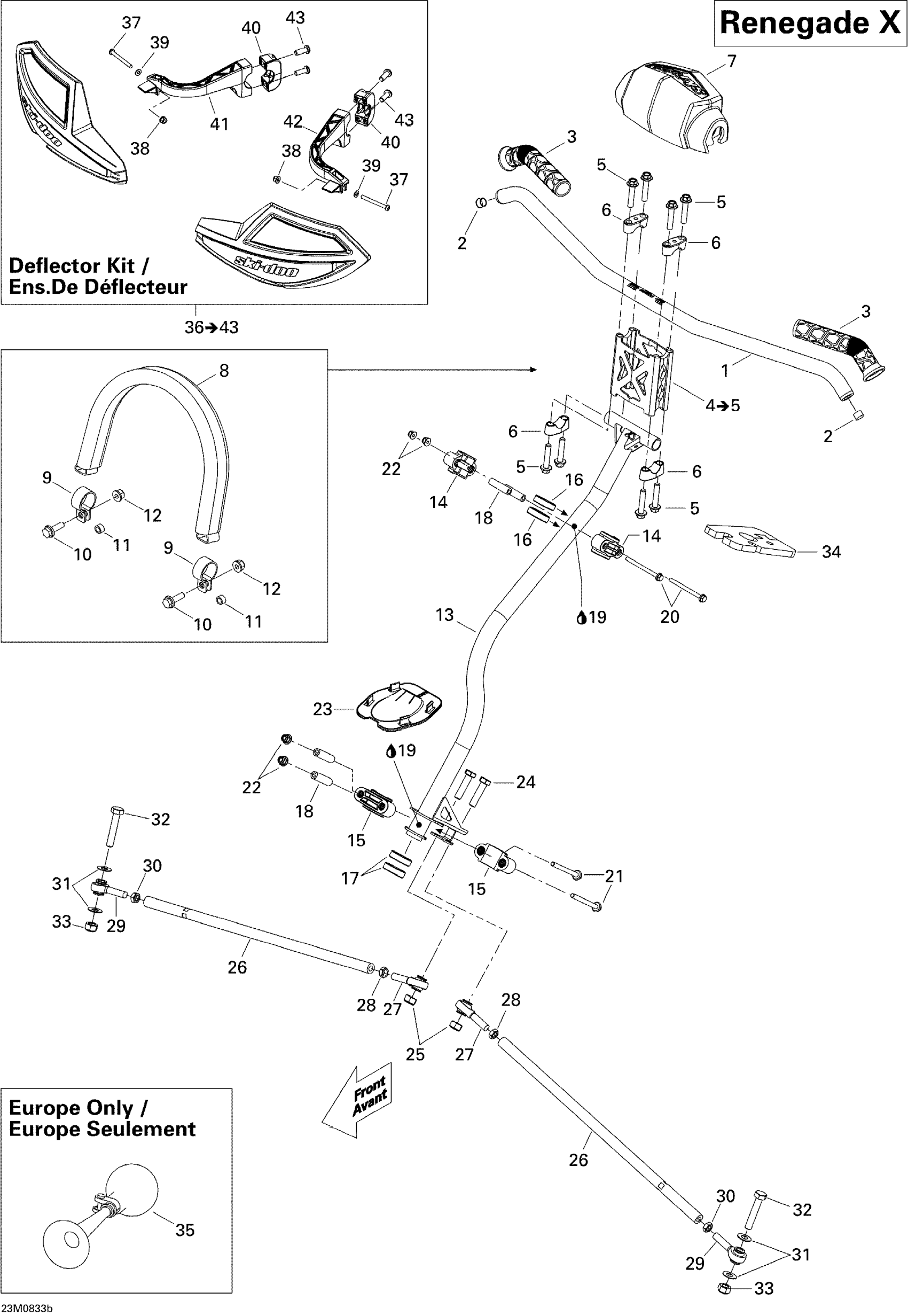

Ski-Doo MX Z RENEGADE X 600 HO SDI, 2008 Steering X Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Cap

572051500

$5.38

3

Grip

506152486

$14.71

4

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

5

Hex. Flange Screw M8 x 40

250000285

$0.77

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

$54.58

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662084

$0.83

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$189.20

14

Upper Half Housing

506152219

$1.68

15

Lower Half-Housing

506152217

$5.57

16

Upper Vibration Ring

506152292

$0.72

17

Lower Vibration Ring

506152518

$4.52

18

Housing Bushing

506152297

$10.23

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

22

Elastic Flange Nut M6 X 1.0

233261416

$1.74

23

Plate

506152163

$10.23

24

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod Ass'y

506152496

$59.97

27

LH Thread Ball Joint

506152081

$39.97

28

LH Threaded Hex. Jam Nut M10

250100016

$0.72

29

RH Threaded Ball Joint

506152019

$39.97

30

RH Threaded Hex. Jam Nut M10

732610010

$0.72

31

Washer

506152194

$4.42

32

Hex. Screw M10 X 55

207005544

$1.85

33

Elastic Stop Nut M10

232500416

$1.56

34

CUSHION - Call your local BRP dealership

506152334

Unavailable

35

Horn

549011291

$35.35

36

Yellow Wind Deflector Kit

860200710

$98.99

37

Socket Head Screw M4 X 40 | X

205444086

$1.42

38

Elastic Stop Nut M4

232541484

$0.61

39

Flat Washer 4 mm

234041480

$0.61

40

U-Clamp | XT

517303264

$11.43

41

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

42

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

43

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable
