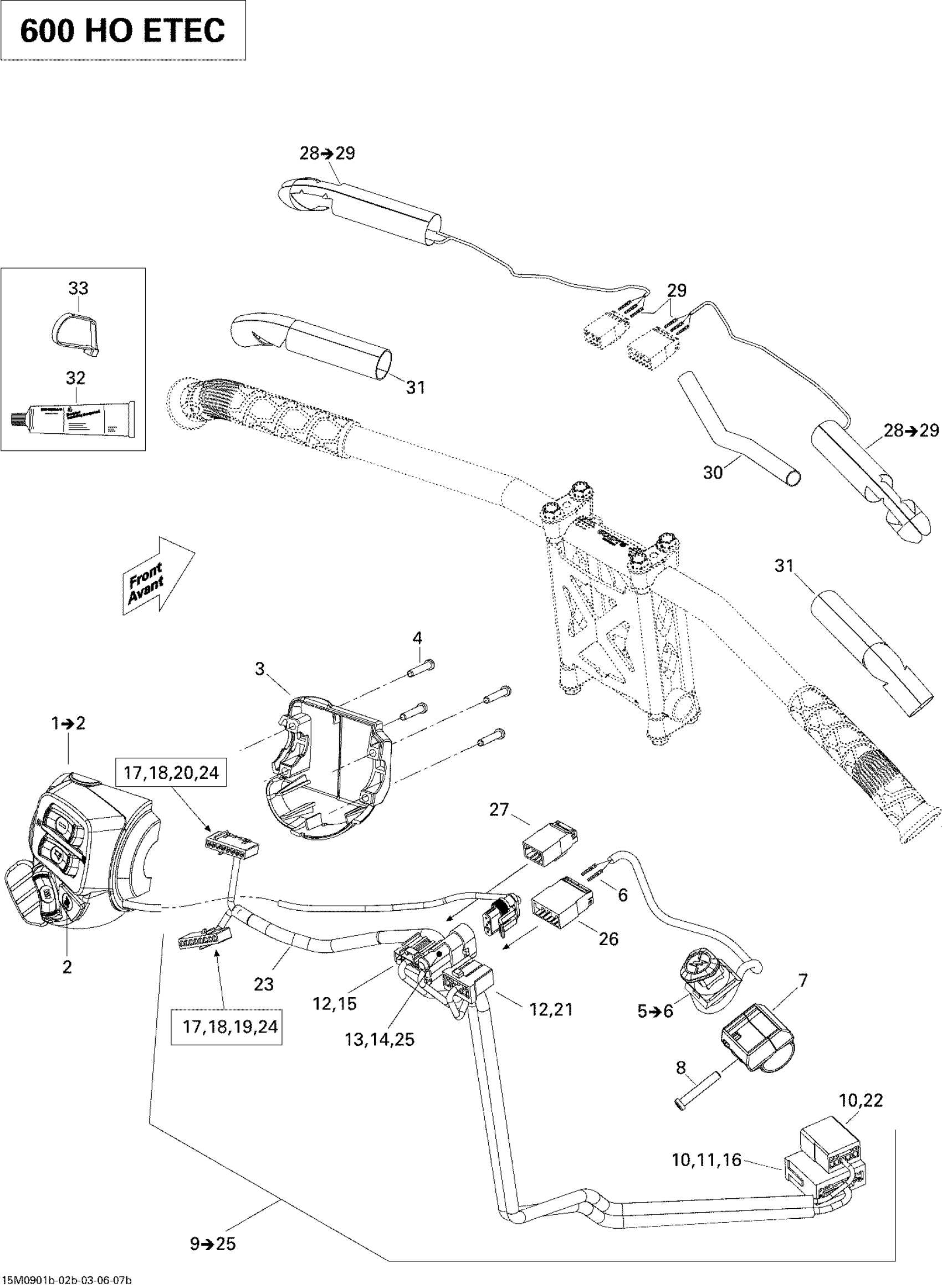

Ski-Doo MX Z Renegade X 600 H.O. E-TEC, 2009 10- Steering Wiring Harness 600 HO X Diagram

#

Description
Price

1

LH Switch Housing | Includes 1 to 2

515176504

$419.99

2

Start/RER Button

515176088

$20.99

3

Switch Housing Plate

515175926

$20.99

4

Torx Screw #8-18

250000263

$1.04

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

6

Male Terminal

515175232

$1.58

7

Kill Switch Support

515176825

$10.49

8

Torx Screw #8-18

250000263

$1.04

9

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 9 to 25

515176506

Unavailable

10

Male Terminal

515175232

$1.58

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

$4.39

13

Housing

710000568

$11.12

14

Wire Seal

278001013

$3.28

15

Not Available As Spare Part - Friction Washer

Unavailable

16

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

18

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

19

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

20

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

21

Female Terminal Housing, 6 Circuits

515175543

$9.49

22

Male Terminal Housing, 8 Circuits

515175817

$8.79

23

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

24

Female Terminal

515175941

$2.69

25

Male Terminal

515176164

$7.16

26

Male Terminal Housing, 6 Circuits

515175662

$8.79

27

Male Terminal Housing, 4 Circuits

515175846

$8.79

28

Heating Element 32W

506152371

Unavailable

29

Male Terminal

515175232

$1.58

30

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

31

Insulant

506152360

$6.29

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Tie-Rap 180 mm

414115200

$0.11

33

Tie Wrap 142 mm

293750002

$1.25

33

Tie Wrap 368 mm

293750008

$1.04

33

Tie Wrap 94 mm | 4X4

293750001

$1.03
