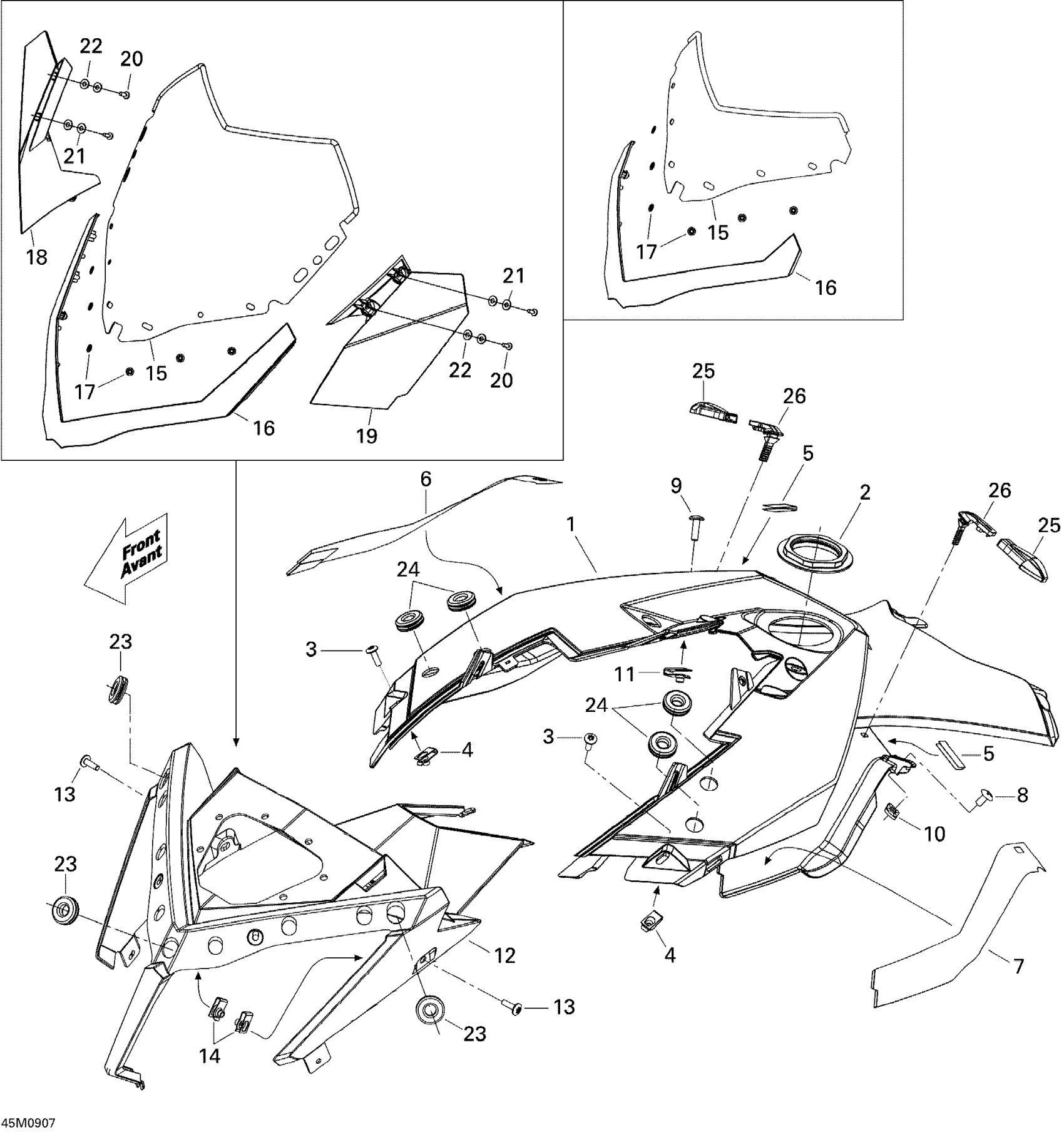

Ski-Doo MX Z Renegade X 600 H.O. E-TEC, 2009 Windshield And Console X Diagram

#

Description
Price

1

YELLOW CONSOLE - Call your local BRP dealership | Renegade X Yellow-Black 800R

517303759

Unavailable

1

CONSOLE B-190 - Call your local BRP dealership | 600HOE

517303778

Unavailable

1

CONSOLE B-229 - Call your local BRP dealership | 800R PTEK, White-White Model

517304109

Unavailable

1

WHITE CONSOLE - Call your local BRP dealership | 600HO ETEC, White-White Model

517304115

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.34

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Console Decal

517304105

$10.74

6

RH Decal

517304103

$16.89

7

LH Decal

517304104

$16.89

8

Torx Truss Screw M6 X 12

250000767

$1.66

9

Torx Screw M6 X 20

250000722

$1.34

10

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

11

Panel Nut M6 X 1.0

250100198

$1.73

12

Gauge Support

517304575

$65.35

13

Torx Screw M6 X 20

250000722

$1.34

14

Panel Nut M6 X 1.0

250100198

$1.73

15

Low Windshield Ass'y (140)

517304226

$102.28

15

Low Windshield Ass'y | Includes 18 to 20, Black/Black Model

517304227

Unavailable

16

Windshield Support Kit

860200089

$23.99

17

Push Nut

732610072

$1.72

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Grommet

517303756

$3.15

24

Not Available As Spare Part - Friction Washer

Unavailable

25

End Piece Latch

517304075

$4.43

26

Panel Latch

517303981

$10.00
